TiXmlNode Class Reference

#include <tinyxml.h>

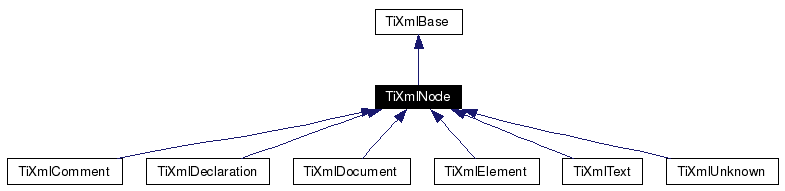

Inheritance diagram for TiXmlNode:

Inheritance graph
[legend]
Collaboration diagram for TiXmlNode:

Collaboration graph
[legend]
List of all members.

Detailed Description

The parent class for everything in the Document Object Model.

(Except for attributes). Nodes have siblings, a parent, and children. A node can be in a document, or stand on its own. The type of a TiXmlNode can be queried, and it can be cast to its more defined type.

Definition at line 385 of file tinyxml.h.

Public Types

enum  NodeType {
  DOCUMENT, ELEMENT, COMMENT, UNKNOWN,
  TEXT, DECLARATION, TYPECOUNT
}
 The types of XML nodes supported by TinyXml. More...
enum  {
  TIXML_NO_ERROR = 0, TIXML_ERROR, TIXML_ERROR_OPENING_FILE, TIXML_ERROR_OUT_OF_MEMORY,
  TIXML_ERROR_PARSING_ELEMENT, TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME, TIXML_ERROR_READING_ELEMENT_VALUE, TIXML_ERROR_READING_ATTRIBUTES,
  TIXML_ERROR_PARSING_EMPTY, TIXML_ERROR_READING_END_TAG, TIXML_ERROR_PARSING_UNKNOWN, TIXML_ERROR_PARSING_COMMENT,
  TIXML_ERROR_PARSING_DECLARATION, TIXML_ERROR_DOCUMENT_EMPTY, TIXML_ERROR_EMBEDDED_NULL, TIXML_ERROR_PARSING_CDATA,
  TIXML_ERROR_STRING_COUNT
}

Public Member Functions

virtual ~TiXmlNode ()
const char * Value () const
 The meaning of 'value' changes for the specific type of TiXmlNode.
void SetValue (const char *_value)
 Changes the value of the node.
void Clear ()
 Delete all the children of this node. Does not affect 'this'.
TiXmlNode * Parent ()
 One step up the DOM.
const TiXmlNode * Parent () const
const TiXmlNode * FirstChild () const
 The first child of this node. Will be null if there are no children.
TiXmlNode * FirstChild ()
const TiXmlNode * FirstChild (const char *value) const
 The first child of this node with the matching 'value'. Will be null if none found.
TiXmlNode * FirstChild (const char *value)
 The first child of this node with the matching 'value'. Will be null if none found.
const TiXmlNode * LastChild () const
TiXmlNode * LastChild ()
 The last child of this node. Will be null if there are no children.
const TiXmlNode * LastChild (const char *value) const
TiXmlNode * LastChild (const char *value)
 The last child of this node matching 'value'. Will be null if there are no children.
const TiXmlNode * IterateChildren (const TiXmlNode *previous) const
 An alternate way to walk the children of a node.
TiXmlNode * IterateChildren (TiXmlNode *previous)
const TiXmlNode * IterateChildren (const char *value, const TiXmlNode *previous) const
 This flavor of IterateChildren searches for children with a particular 'value'.
TiXmlNode * IterateChildren (const char *value, TiXmlNode *previous)
TiXmlNode * InsertEndChild (const TiXmlNode &addThis)
 Add a new node related to this.
TiXmlNode * LinkEndChild (TiXmlNode *addThis)
 Add a new node related to this.
TiXmlNode * InsertBeforeChild (TiXmlNode *beforeThis, const TiXmlNode &addThis)
 Add a new node related to this.
TiXmlNode * InsertAfterChild (TiXmlNode *afterThis, const TiXmlNode &addThis)
 Add a new node related to this.
TiXmlNode * ReplaceChild (TiXmlNode *replaceThis, const TiXmlNode &withThis)
 Replace a child of this node.
bool RemoveChild (TiXmlNode *removeThis)
 Delete a child of this node.
const TiXmlNode * PreviousSibling () const
 Navigate to a sibling node.
TiXmlNode * PreviousSibling ()
const TiXmlNode * PreviousSibling (const char *) const
 Navigate to a sibling node.
TiXmlNode * PreviousSibling (const char *)
const TiXmlNode * NextSibling () const
 Navigate to a sibling node.
TiXmlNode * NextSibling ()
const TiXmlNode * NextSibling (const char *) const
 Navigate to a sibling node with the given 'value'.
TiXmlNode * NextSibling (const char *)
const TiXmlElement * NextSiblingElement () const
 Convenience function to get through elements.
TiXmlElement * NextSiblingElement ()
const TiXmlElement * NextSiblingElement (const char *) const
 Convenience function to get through elements.
TiXmlElement * NextSiblingElement (const char *)
const TiXmlElement * FirstChildElement () const
 Convenience function to get through elements.
TiXmlElement * FirstChildElement ()
const TiXmlElement * FirstChildElement (const char *value) const
 Convenience function to get through elements.
TiXmlElement * FirstChildElement (const char *value)
int Type () const
 Query the type (as an enumerated value, above) of this node.
const TiXmlDocument * GetDocument () const
 Return a pointer to the Document this node lives in.
TiXmlDocument * GetDocument ()
bool NoChildren () const
 Returns true if this node has no children.
virtual const TiXmlDocument * ToDocument () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlElement * ToElement () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlComment * ToComment () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlUnknown * ToUnknown () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlText * ToText () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlDeclaration * ToDeclaration () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlDocument * ToDocument ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlElement * ToElement ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlComment * ToComment ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlUnknown * ToUnknown ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlText * ToText ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlDeclaration * ToDeclaration ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlNode * Clone () const =0
 Create an exact duplicate of this node and return it.
virtual void Print (FILE *cfile, int depth) const =0
 All TinyXml classes can print themselves to a filestream.
int Row () const
 Return the position, in the original source file, of this node or attribute.
int Column () const
 See Row().
void SetUserData (void *user)
void * GetUserData ()
virtual const char * Parse (const char *p, TiXmlParsingData *data, TiXmlEncoding encoding)=0

Static Public Member Functions

void SetCondenseWhiteSpace (bool condense)
 The world does not agree on whether white space should be kept or not.
bool IsWhiteSpaceCondensed ()
 Return the current white space setting.

Static Public Attributes

const int utf8ByteTable [256]

Protected Member Functions

 TiXmlNode (NodeType _type)
void CopyTo (TiXmlNode *target) const
TiXmlNode * Identify (const char *start, TiXmlEncoding encoding)
virtual void StreamOut (TIXML_OSTREAM *) const =0

Static Protected Member Functions

const char * SkipWhiteSpace (const char *, TiXmlEncoding encoding)
bool IsWhiteSpace (char c)
bool IsWhiteSpace (int c)
const char * ReadName (const char *p, TIXML_STRING *name, TiXmlEncoding encoding)
const char * ReadText (const char *in, TIXML_STRING *text, bool ignoreWhiteSpace, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
const char * GetEntity (const char *in, char *value, int *length, TiXmlEncoding encoding)
const char * GetChar (const char *p, char *_value, int *length, TiXmlEncoding encoding)
void PutString (const TIXML_STRING &str, TIXML_OSTREAM *out)
void PutString (const TIXML_STRING &str, TIXML_STRING *out)
bool StringEqual (const char *p, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
int IsAlpha (unsigned char anyByte, TiXmlEncoding encoding)
int IsAlphaNum (unsigned char anyByte, TiXmlEncoding encoding)
int ToLower (int v, TiXmlEncoding encoding)
void ConvertUTF32ToUTF8 (unsigned long input, char *output, int *length)

Protected Attributes

TiXmlNode * parent
NodeType type
TiXmlNode * firstChild
TiXmlNode * lastChild
TIXML_STRING value
TiXmlNode * prev
TiXmlNode * next
TiXmlCursor location
void * userData
 Field containing a generic user pointer.

Static Protected Attributes

const char * errorString [TIXML_ERROR_STRING_COUNT]

Private Member Functions

 TiXmlNode (const TiXmlNode &)
void operator= (const TiXmlNode &base)

Friends

class TiXmlDocument
class TiXmlElement
TIXML_OSTREAM & operator<< (TIXML_OSTREAM &out, const TiXmlNode &base)

Member Enumeration Documentation

anonymous enum [inherited]


Enumeration values:
TIXML_NO_ERROR
TIXML_ERROR
TIXML_ERROR_OPENING_FILE
TIXML_ERROR_OUT_OF_MEMORY
TIXML_ERROR_PARSING_ELEMENT
TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME
TIXML_ERROR_READING_ELEMENT_VALUE
TIXML_ERROR_READING_ATTRIBUTES
TIXML_ERROR_PARSING_EMPTY
TIXML_ERROR_READING_END_TAG
TIXML_ERROR_PARSING_UNKNOWN
TIXML_ERROR_PARSING_COMMENT
TIXML_ERROR_PARSING_DECLARATION
TIXML_ERROR_DOCUMENT_EMPTY
TIXML_ERROR_EMBEDDED_NULL
TIXML_ERROR_PARSING_CDATA
TIXML_ERROR_STRING_COUNT

Definition at line 209 of file tinyxml.h.

enum TiXmlNode::NodeType


The types of XML nodes supported by TinyXml.

(All the unsupported types are picked up by UNKNOWN.)

Enumeration values:
DOCUMENT
ELEMENT
COMMENT
UNKNOWN
TEXT
DECLARATION
TYPECOUNT

Definition at line 427 of file tinyxml.h.

Constructor & Destructor Documentation

TiXmlNode::~TiXmlNode (   )  [virtual]


Definition at line 156 of file tinyxml.cpp.

References next.

TiXmlNode::TiXmlNode (  NodeType  _type  )  [protected]


Definition at line 145 of file tinyxml.cpp.

References firstChild, lastChild, next, parent, prev, and type.

TiXmlNode::TiXmlNode (  const TiXmlNode &   )  [private]


Member Function Documentation

void TiXmlNode::Clear (   )


Delete all the children of this node. Does not affect 'this'.

Definition at line 177 of file tinyxml.cpp.

References firstChild, lastChild, and next.

Referenced by TiXmlElement::ClearThis(), TiXmlDocument::LoadFile(), main(), TiXmlDeclaration::operator=(), TiXmlComment::operator=(), and TiXmlDocument::operator=().

virtual TiXmlNode* TiXmlNode::Clone (   )  const [pure virtual]


Create an exact duplicate of this node and return it.

The memory must be deleted by the caller.

Implemented in TiXmlElement, TiXmlComment, TiXmlText, TiXmlDeclaration, TiXmlUnknown, and TiXmlDocument.

Referenced by TiXmlDocument::CopyTo(), TiXmlElement::CopyTo(), InsertAfterChild(), InsertBeforeChild(), InsertEndChild(), and ReplaceChild().

int TiXmlBase::Column (   )  const [inline, inherited]


See Row().

Definition at line 196 of file tinyxml.h.

Referenced by main().

void TiXmlBase::ConvertUTF32ToUTF8 (  unsigned long  input,
char *  output,
int *  length
)  [static, protected, inherited]


Definition at line 87 of file tinyxmlparser.cpp.

Referenced by TiXmlBase::GetEntity().

void TiXmlNode::CopyTo (  TiXmlNode *  target  )  const [protected]


Definition at line 170 of file tinyxml.cpp.

References SetValue(), TiXmlBase::userData, and value.

Referenced by TiXmlUnknown::CopyTo(), TiXmlDeclaration::CopyTo(), TiXmlText::CopyTo(), TiXmlComment::CopyTo(), TiXmlDocument::CopyTo(), and TiXmlElement::CopyTo().

TiXmlNode * TiXmlNode::FirstChild (  const char *  value  )


The first child of this node with the matching 'value'. Will be null if none found.

Definition at line 338 of file tinyxml.cpp.

References next, and Value().

const TiXmlNode * TiXmlNode::FirstChild (  const char *  value  )  const


The first child of this node with the matching 'value'. Will be null if none found.

Definition at line 326 of file tinyxml.cpp.

References next, and Value().

TiXmlNode* TiXmlNode::FirstChild (   )  [inline]


Definition at line 486 of file tinyxml.h.

const TiXmlNode* TiXmlNode::FirstChild (   )  const [inline]


The first child of this node. Will be null if there are no children.

Definition at line 485 of file tinyxml.h.

Referenced by TiXmlHandle::Child(), TiXmlHandle::FirstChild(), FirstChildElement(), TiXmlElement::GetText(), IterateChildren(), main(), TiXmlDocument::Print(), and TiXmlDocument::StreamOut().

TiXmlElement * TiXmlNode::FirstChildElement (  const char *  value  )


Definition at line 521 of file tinyxml.cpp.

References FirstChild(), NextSibling(), and ToElement().

const TiXmlElement * TiXmlNode::FirstChildElement (  const char *  value  )  const


Convenience function to get through elements.

Definition at line 507 of file tinyxml.cpp.

References FirstChild(), NextSibling(), and ToElement().

TiXmlElement * TiXmlNode::FirstChildElement (   )


Definition at line 493 of file tinyxml.cpp.

References FirstChild(), NextSibling(), and ToElement().

const TiXmlElement * TiXmlNode::FirstChildElement (   )  const


Convenience function to get through elements.

Definition at line 479 of file tinyxml.cpp.

References FirstChild(), NextSibling(), and ToElement().

Referenced by TiXmlHandle::ChildElement(), TiXmlHandle::FirstChildElement(), main(), and TiXmlDocument::RootElement().

const char* TiXmlBase::GetChar (  const char *  p,
char *  _value,
int *  length,
TiXmlEncoding  encoding
)  [inline, static, protected, inherited]


Definition at line 283 of file tinyxml.h.

Referenced by TiXmlBase::ReadText().

TiXmlDocument * TiXmlNode::GetDocument (   )


Definition at line 604 of file tinyxml.cpp.

References parent, and ToDocument().

const TiXmlDocument * TiXmlNode::GetDocument (   )  const


Return a pointer to the Document this node lives in.

Returns null if not in a document.

Definition at line 592 of file tinyxml.cpp.

References parent, and ToDocument().

Referenced by Identify(), LinkEndChild(), TiXmlDeclaration::Parse(), TiXmlText::Parse(), TiXmlComment::Parse(), TiXmlUnknown::Parse(), TiXmlElement::Parse(), TiXmlElement::ReadValue(), and TiXmlElement::SetAttribute().

const char * TiXmlBase::GetEntity (  const char *  in,
char *  value,
int *  length,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 427 of file tinyxmlparser.cpp.

References TiXmlBase::Entity::chr, TiXmlBase::ConvertUTF32ToUTF8(), TiXmlBase::entity, TiXmlBase::Entity::strLength, TIXML_STRING, and value.

void* TiXmlBase::GetUserData (   )  [inline, inherited]


Definition at line 199 of file tinyxml.h.

TiXmlNode * TiXmlNode::Identify (  const char *  start,
TiXmlEncoding  encoding
)  [protected]


Definition at line 803 of file tinyxmlparser.cpp.

References GetDocument(), TiXmlBase::IsAlpha(), parent, TiXmlText::SetCDATA(), TiXmlDocument::SetError(), TiXmlBase::SkipWhiteSpace(), TiXmlBase::StringEqual(), TIXML_ENCODING_UNKNOWN, and TiXmlElement.

Referenced by TiXmlDocument::Parse(), and TiXmlElement::ReadValue().

TiXmlNode * TiXmlNode::InsertAfterChild (  TiXmlNode *  afterThis,
const TiXmlNode &  addThis
)


Add a new node related to this.

Adds a child after the specified child. Returns a pointer to the new object or NULL if an error occured.

Definition at line 250 of file tinyxml.cpp.

References Clone(), lastChild, next, parent, and prev.

Referenced by main().

TiXmlNode * TiXmlNode::InsertBeforeChild (  TiXmlNode *  beforeThis,
const TiXmlNode &  addThis
)


Add a new node related to this.

Adds a child before the specified child. Returns a pointer to the new object or NULL if an error occured.

Definition at line 224 of file tinyxml.cpp.

References Clone(), firstChild, next, parent, and prev.

Referenced by main().

TiXmlNode * TiXmlNode::InsertEndChild (  const TiXmlNode &  addThis  )


Add a new node related to this.

Adds a child past the LastChild. Returns a pointer to the new object or NULL if an error occured.

Definition at line 214 of file tinyxml.cpp.

References Clone(), and LinkEndChild().

Referenced by main().

int TiXmlBase::IsAlpha (  unsigned char  anyByte,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 128 of file tinyxmlparser.cpp.

Referenced by Identify(), and TiXmlBase::ReadName().

int TiXmlBase::IsAlphaNum (  unsigned char  anyByte,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 149 of file tinyxmlparser.cpp.

Referenced by TiXmlBase::ReadName().

bool TiXmlBase::IsWhiteSpace (  int  c  )  [inline, static, protected, inherited]


Definition at line 248 of file tinyxml.h.

bool TiXmlBase::IsWhiteSpace (  char  c  )  [inline, static, protected, inherited]


Definition at line 244 of file tinyxml.h.

Referenced by TiXmlText::Blank(), TiXmlDeclaration::Parse(), TiXmlAttribute::Parse(), TiXmlBase::ReadText(), and TiXmlBase::SkipWhiteSpace().

bool TiXmlBase::IsWhiteSpaceCondensed (   )  [inline, static, inherited]


Return the current white space setting.

Definition at line 175 of file tinyxml.h.

Referenced by TiXmlElement::ReadValue().

TiXmlNode * TiXmlNode::IterateChildren (  const char *  value,
TiXmlNode *  previous
)


Definition at line 411 of file tinyxml.cpp.

References FirstChild(), NextSibling(), and parent.

const TiXmlNode * TiXmlNode::IterateChildren (  const char *  value,
const TiXmlNode *  previous
)  const


This flavor of IterateChildren searches for children with a particular 'value'.

Definition at line 398 of file tinyxml.cpp.

References FirstChild(), NextSibling(), and parent.

TiXmlNode * TiXmlNode::IterateChildren (  TiXmlNode *  previous  )


Definition at line 385 of file tinyxml.cpp.

References FirstChild(), NextSibling(), and parent.

const TiXmlNode * TiXmlNode::IterateChildren (  const TiXmlNode *  previous  )  const


An alternate way to walk the children of a node.

One way to iterate over nodes is:

			for( child = parent->FirstChild(); child; child = child->NextSibling() )

IterateChildren does the same thing with the syntax:

			child = 0;
			while( child = parent->IterateChildren( child ) )

IterateChildren takes the previous child as input and finds the next one. If the previous child is null, it returns the first. IterateChildren will return null when done.

Definition at line 372 of file tinyxml.cpp.

References FirstChild(), NextSibling(), and parent.

Referenced by main().

TiXmlNode * TiXmlNode::LastChild (  const char *  value  )


The last child of this node matching 'value'. Will be null if there are no children.

Definition at line 361 of file tinyxml.cpp.

References prev, and Value().

const TiXmlNode * TiXmlNode::LastChild (  const char *  value  )  const


Definition at line 350 of file tinyxml.cpp.

References prev, and Value().

TiXmlNode* TiXmlNode::LastChild (   )  [inline]


The last child of this node. Will be null if there are no children.

Definition at line 491 of file tinyxml.h.

const TiXmlNode* TiXmlNode::LastChild (   )  const [inline]


Definition at line 490 of file tinyxml.h.

Referenced by main().

TiXmlNode * TiXmlNode::LinkEndChild (  TiXmlNode *  addThis  )


Add a new node related to this.

Adds a child past the LastChild.

NOTE: the node to be added is passed by pointer, and will be henceforth owned (and deleted) by tinyXml. This method is efficient and avoids an extra copy, but should be used with care as it uses a different memory model than the other insert functions.

See also:
InsertEndChild

Definition at line 194 of file tinyxml.cpp.

References firstChild, GetDocument(), lastChild, next, parent, and prev.

Referenced by TiXmlDocument::CopyTo(), TiXmlElement::CopyTo(), InsertEndChild(), TiXmlDocument::Parse(), and TiXmlElement::ReadValue().

TiXmlNode * TiXmlNode::NextSibling (  const char *   )


Definition at line 435 of file tinyxml.cpp.

References next, and Value().

const TiXmlNode * TiXmlNode::NextSibling (  const char *   )  const


Navigate to a sibling node with the given 'value'.

Definition at line 424 of file tinyxml.cpp.

References next, and Value().

TiXmlNode* TiXmlNode::NextSibling (   )  [inline]


Definition at line 582 of file tinyxml.h.

const TiXmlNode* TiXmlNode::NextSibling (   )  const [inline]


Navigate to a sibling node.

Definition at line 581 of file tinyxml.h.

Referenced by TiXmlHandle::Child(), TiXmlDocument::CopyTo(), TiXmlElement::CopyTo(), FirstChildElement(), IterateChildren(), main(), NextSiblingElement(), TiXmlDocument::Print(), TiXmlElement::Print(), TiXmlDocument::StreamOut(), and TiXmlElement::StreamOut().

TiXmlElement * TiXmlNode::NextSiblingElement (  const char *   )


Definition at line 577 of file tinyxml.cpp.

References NextSibling(), and ToElement().

const TiXmlElement * TiXmlNode::NextSiblingElement (  const char *   )  const


Convenience function to get through elements.

Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

Definition at line 563 of file tinyxml.cpp.

References NextSibling(), and ToElement().

TiXmlElement * TiXmlNode::NextSiblingElement (   )


Definition at line 549 of file tinyxml.cpp.

References NextSibling(), and ToElement().

const TiXmlElement * TiXmlNode::NextSiblingElement (   )  const


Convenience function to get through elements.

Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

Definition at line 535 of file tinyxml.cpp.

References NextSibling(), and ToElement().

Referenced by TiXmlHandle::ChildElement(), and main().

bool TiXmlNode::NoChildren (   )  const [inline]


Returns true if this node has no children.

Definition at line 633 of file tinyxml.h.

void TiXmlNode::operator= (  const TiXmlNode &  base  )  [private]


const TiXmlNode* TiXmlNode::Parent (   )  const [inline]


Definition at line 483 of file tinyxml.h.

TiXmlNode* TiXmlNode::Parent (   )  [inline]


One step up the DOM.

Definition at line 482 of file tinyxml.h.

virtual const char* TiXmlBase::Parse (  const char *  p,
TiXmlParsingData *  data,
TiXmlEncoding  encoding
)  [pure virtual, inherited]


Implemented in TiXmlAttribute, TiXmlElement, TiXmlComment, TiXmlText, TiXmlDeclaration, TiXmlUnknown, and TiXmlDocument.

Referenced by TiXmlDocument::Parse(), and TiXmlElement::ReadValue().

TiXmlNode * TiXmlNode::PreviousSibling (  const char *   )


Definition at line 457 of file tinyxml.cpp.

References prev, and Value().

const TiXmlNode * TiXmlNode::PreviousSibling (  const char *   )  const


Navigate to a sibling node.

Definition at line 446 of file tinyxml.cpp.

References prev, and Value().

TiXmlNode* TiXmlNode::PreviousSibling (   )  [inline]


Definition at line 567 of file tinyxml.h.

const TiXmlNode* TiXmlNode::PreviousSibling (   )  const [inline]


Navigate to a sibling node.

Definition at line 566 of file tinyxml.h.

Referenced by main().

virtual void TiXmlBase::Print (  FILE *  cfile,
int  depth
)  const [pure virtual, inherited]


All TinyXml classes can print themselves to a filestream.

This is a formatted print, and will insert tabs and newlines.

(For an unformatted stream, use the << operator.)

Implemented in TiXmlAttribute, TiXmlElement, TiXmlComment, TiXmlText, TiXmlDeclaration, TiXmlUnknown, and TiXmlDocument.

Referenced by TiXmlDocument::Print(), and TiXmlElement::Print().

void TiXmlBase::PutString (  const TIXML_STRING &  str,
TIXML_STRING *  out
)  [static, protected, inherited]


Definition at line 43 of file tinyxml.cpp.

References TiXmlBase::entity.

void TiXmlBase::PutString (  const TIXML_STRING &  str,
TIXML_OSTREAM *  out
)  [static, protected, inherited]


Definition at line 36 of file tinyxml.cpp.

References TIXML_STRING.

Referenced by TiXmlText::Print(), TiXmlAttribute::Print(), TiXmlDeclaration::StreamOut(), TiXmlText::StreamOut(), and TiXmlAttribute::StreamOut().

const char * TiXmlBase::ReadName (  const char *  p,
TIXML_STRING *  name,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 397 of file tinyxmlparser.cpp.

References TiXmlBase::IsAlpha(), and TiXmlBase::IsAlphaNum().

Referenced by TiXmlAttribute::Parse(), and TiXmlElement::Parse().

const char * TiXmlBase::ReadText (  const char *  in,
TIXML_STRING *  text,
bool  ignoreWhiteSpace,
const char *  endTag,
bool  ignoreCase,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 561 of file tinyxmlparser.cpp.

References TiXmlBase::GetChar(), TiXmlBase::IsWhiteSpace(), TiXmlBase::SkipWhiteSpace(), and TiXmlBase::StringEqual().

Referenced by TiXmlText::Parse(), TiXmlAttribute::Parse(), and TiXmlComment::Parse().

bool TiXmlNode::RemoveChild (  TiXmlNode *  removeThis  )


Delete a child of this node.

Definition at line 304 of file tinyxml.cpp.

References firstChild, lastChild, next, parent, and prev.

Referenced by main().

TiXmlNode * TiXmlNode::ReplaceChild (  TiXmlNode *  replaceThis,
const TiXmlNode &  withThis
)


Replace a child of this node.

Returns a pointer to the new object or NULL if an error occured.

Definition at line 276 of file tinyxml.cpp.

References Clone(), firstChild, lastChild, next, parent, and prev.

int TiXmlBase::Row (   )  const [inline, inherited]


Return the position, in the original source file, of this node or attribute.

The row and column are 1-based. (That is the first row and first column is 1,1). If the returns values are 0 or less, then the parser does not have a row and column value.

Generally, the row and column value will be set when the TiXmlDocument::Load(), TiXmlDocument::LoadFile(), or any TiXmlNode::Parse() is called. It will NOT be set when the DOM was created from operator>>.

The values reflect the initial load. Once the DOM is modified programmatically (by adding or changing nodes and attributes) the new values will NOT update to reflect changes in the document.

There is a minor performance cost to computing the row and column. Computation can be disabled if TiXmlDocument::SetTabSize() is called with 0 as the value.

See also:
TiXmlDocument::SetTabSize()

Definition at line 195 of file tinyxml.h.

Referenced by main().

void TiXmlBase::SetCondenseWhiteSpace (  bool  condense  )  [inline, static, inherited]


The world does not agree on whether white space should be kept or not.

In order to make everyone happy, these global, static functions are provided to set whether or not TinyXml will condense all white space into a single space or not. The default is to condense. Note changing this values is not thread safe.

Definition at line 172 of file tinyxml.h.

Referenced by main().

void TiXmlBase::SetUserData (  void *  user  )  [inline, inherited]


Definition at line 198 of file tinyxml.h.

void TiXmlNode::SetValue (  const char *  _value  )  [inline]


Changes the value of the node.

Defined as:

		Document:	filename of the xml file
		Element:	name of the element
		Comment:	the comment text
		Unknown:	the tag contents
		Text:		the text string

Definition at line 471 of file tinyxml.h.

References value.

Referenced by CopyTo(), and TiXmlText::TiXmlText().

const char * TiXmlBase::SkipWhiteSpace (  const char *  ,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 313 of file tinyxmlparser.cpp.

References TiXmlBase::IsWhiteSpace(), TIXML_UTF_LEAD_0, and TIXML_UTF_LEAD_1.

Referenced by Identify(), TiXmlDeclaration::Parse(), TiXmlAttribute::Parse(), TiXmlComment::Parse(), TiXmlUnknown::Parse(), TiXmlElement::Parse(), TiXmlDocument::Parse(), TiXmlBase::ReadText(), and TiXmlElement::ReadValue().

virtual void TiXmlBase::StreamOut (  TIXML_OSTREAM *   )  const [protected, pure virtual, inherited]


Implemented in TiXmlAttribute, TiXmlElement, TiXmlComment, TiXmlText, TiXmlDeclaration, TiXmlUnknown, and TiXmlDocument.

Referenced by operator<<(), TiXmlDocument::StreamOut(), and TiXmlElement::StreamOut().

bool TiXmlBase::StringEqual (  const char *  p,
const char *  endTag,
bool  ignoreCase,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 521 of file tinyxmlparser.cpp.

References TiXmlBase::ToLower().

Referenced by Identify(), TiXmlDeclaration::Parse(), TiXmlText::Parse(), TiXmlComment::Parse(), TiXmlElement::Parse(), TiXmlDocument::Parse(), TiXmlBase::ReadText(), and TiXmlElement::ReadValue().

virtual TiXmlComment* TiXmlNode::ToComment (   )  [inline, virtual]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlComment.

Definition at line 644 of file tinyxml.h.

virtual const TiXmlComment* TiXmlNode::ToComment (   )  const [inline, virtual]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlComment.

Definition at line 637 of file tinyxml.h.

Referenced by main().

virtual TiXmlDeclaration* TiXmlNode::ToDeclaration (   )  [inline, virtual]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDeclaration.

Definition at line 647 of file tinyxml.h.

virtual const TiXmlDeclaration* TiXmlNode::ToDeclaration (   )  const [inline, virtual]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDeclaration.

Definition at line 640 of file tinyxml.h.

Referenced by main(), and TiXmlDocument::Parse().

virtual TiXmlDocument* TiXmlNode::ToDocument (   )  [inline, virtual]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDocument.

Definition at line 642 of file tinyxml.h.

virtual const TiXmlDocument* TiXmlNode::ToDocument (   )  const [inline, virtual]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDocument.

Definition at line 635 of file tinyxml.h.

Referenced by GetDocument().

virtual TiXmlElement* TiXmlNode::ToElement (   )  [inline, virtual]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlElement.

Definition at line 643 of file tinyxml.h.

virtual const TiXmlElement* TiXmlNode::ToElement (   )  const [inline, virtual]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlElement.

Definition at line 636 of file tinyxml.h.

Referenced by FirstChildElement(), main(), NextSiblingElement(), and TiXmlDocument::StreamOut().

int TiXmlBase::ToLower (  int  v,
TiXmlEncoding  encoding
)  [inline, static, protected, inherited]


Definition at line 344 of file tinyxml.h.

Referenced by TiXmlBase::StringEqual().

virtual TiXmlText* TiXmlNode::ToText (   )  [inline, virtual]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlText.

Definition at line 646 of file tinyxml.h.

virtual const TiXmlText* TiXmlNode::ToText (   )  const [inline, virtual]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlText.

Definition at line 639 of file tinyxml.h.

Referenced by TiXmlElement::GetText(), main(), and TiXmlElement::Print().

virtual TiXmlUnknown* TiXmlNode::ToUnknown (   )  [inline, virtual]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlUnknown.

Definition at line 645 of file tinyxml.h.

virtual const TiXmlUnknown* TiXmlNode::ToUnknown (   )  const [inline, virtual]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlUnknown.

Definition at line 638 of file tinyxml.h.

int TiXmlNode::Type (   )  const [inline]


Query the type (as an enumerated value, above) of this node.

The possible types are: DOCUMENT, ELEMENT, COMMENT, UNKNOWN, TEXT, and DECLARATION.

Definition at line 624 of file tinyxml.h.

const char* TiXmlNode::Value (   )  const [inline]


The meaning of 'value' changes for the specific type of TiXmlNode.

		Document:	filename of the xml file
		Element:	name of the element
		Comment:	the comment text
		Unknown:	the tag contents
		Text:		the text string

The subclasses will wrap this function.

Definition at line 452 of file tinyxml.h.

References value.

Referenced by TiXmlElement::Clone(), FirstChild(), TiXmlElement::GetText(), LastChild(), main(), NextSibling(), and PreviousSibling().

Friends And Related Function Documentation

TIXML_OSTREAM& operator<< (  TIXML_OSTREAM &  out,
const TiXmlNode &  base
)  [friend]


Definition at line 1660 of file tinyxml.cpp.

friend class TiXmlDocument [friend]


Reimplemented from TiXmlBase.

Definition at line 387 of file tinyxml.h.

friend class TiXmlElement [friend]


Reimplemented from TiXmlBase.

Reimplemented in TiXmlText.

Definition at line 388 of file tinyxml.h.

Referenced by Identify().

Member Data Documentation

const char * TiXmlBase::errorString [static, protected, inherited]


Initial value:

{
        "No error",
        "Error",
        "Failed to open file",
        "Memory allocation failed.",
        "Error parsing Element.",
        "Failed to read Element name",
        "Error reading Element value.",
        "Error reading Attributes.",
        "Error: empty tag.",
        "Error reading end tag.",
        "Error parsing Unknown.",
        "Error parsing Comment.",
        "Error parsing Declaration.",
        "Error document empty.",
        "Error null (0) or unexpected EOF found in input stream.",
        "Error parsing CDATA.",
}

Definition at line 34 of file tinyxmlerror.cpp.

TiXmlNode* TiXmlNode::firstChild [protected]


Definition at line 672 of file tinyxml.h.

Referenced by Clear(), InsertBeforeChild(), LinkEndChild(), RemoveChild(), ReplaceChild(), and TiXmlNode().

TiXmlNode* TiXmlNode::lastChild [protected]


Definition at line 673 of file tinyxml.h.

Referenced by Clear(), InsertAfterChild(), LinkEndChild(), RemoveChild(), ReplaceChild(), and TiXmlNode().

TiXmlCursor TiXmlBase::location [protected, inherited]


Definition at line 335 of file tinyxml.h.

TiXmlNode* TiXmlNode::next [protected]


Definition at line 678 of file tinyxml.h.

Referenced by Clear(), TiXmlAttributeSet::First(), FirstChild(), InsertAfterChild(), InsertBeforeChild(), LinkEndChild(), NextSibling(), RemoveChild(), ReplaceChild(), TiXmlNode(), and ~TiXmlNode().

TiXmlNode* TiXmlNode::parent [protected]


Definition at line 669 of file tinyxml.h.

Referenced by GetDocument(), Identify(), InsertAfterChild(), InsertBeforeChild(), IterateChildren(), LinkEndChild(), RemoveChild(), ReplaceChild(), and TiXmlNode().

TiXmlNode* TiXmlNode::prev [protected]


Definition at line 677 of file tinyxml.h.

Referenced by InsertAfterChild(), InsertBeforeChild(), TiXmlAttributeSet::Last(), LastChild(), LinkEndChild(), PreviousSibling(), RemoveChild(), ReplaceChild(), and TiXmlNode().

NodeType TiXmlNode::type [protected]


Definition at line 670 of file tinyxml.h.

Referenced by TiXmlNode().

void* TiXmlBase::userData [protected, inherited]


Field containing a generic user pointer.

Definition at line 338 of file tinyxml.h.

Referenced by CopyTo().

const int TiXmlBase::utf8ByteTable [static, inherited]


Initial value:


{

                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,
                2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,
                3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,
                4,      4,      4,      4,      4,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1
}

Definition at line 65 of file tinyxmlparser.cpp.

TIXML_STRING TiXmlNode::value [protected]


Definition at line 675 of file tinyxml.h.

Referenced by CopyTo(), SetValue(), and Value().

The documentation for this class was generated from the following files:
Generated on Wed Sep 5 12:54:45 2007 for DSACSS Operational Code by  doxygen 1.3.9.1
