TiXmlBase Class Reference

#include <tinyxml.h>

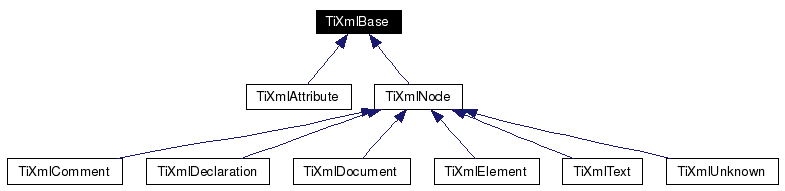

Inheritance diagram for TiXmlBase:

Inheritance graph
[legend]
Collaboration diagram for TiXmlBase:

Collaboration graph
[legend]
List of all members.

Detailed Description

TiXmlBase is a base class for every class in TinyXml.

It does little except to establish that TinyXml classes can be printed and provide some utility functions.

In XML, the document and elements can contain other elements and other types of nodes.

	A Document can contain:	Element	(container or leaf)
							Comment (leaf)
							Unknown (leaf)
							Declaration( leaf )

	An Element can contain:	Element (container or leaf)
							Text	(leaf)
							Attributes (not on tree)
							Comment (leaf)
							Unknown (leaf)

	A Decleration contains: Attributes (not on tree)

Definition at line 149 of file tinyxml.h.

Public Types

enum  {
  TIXML_NO_ERROR = 0, TIXML_ERROR, TIXML_ERROR_OPENING_FILE, TIXML_ERROR_OUT_OF_MEMORY,
  TIXML_ERROR_PARSING_ELEMENT, TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME, TIXML_ERROR_READING_ELEMENT_VALUE, TIXML_ERROR_READING_ATTRIBUTES,
  TIXML_ERROR_PARSING_EMPTY, TIXML_ERROR_READING_END_TAG, TIXML_ERROR_PARSING_UNKNOWN, TIXML_ERROR_PARSING_COMMENT,
  TIXML_ERROR_PARSING_DECLARATION, TIXML_ERROR_DOCUMENT_EMPTY, TIXML_ERROR_EMBEDDED_NULL, TIXML_ERROR_PARSING_CDATA,
  TIXML_ERROR_STRING_COUNT
}

Public Member Functions

 TiXmlBase ()
virtual ~TiXmlBase ()
virtual void Print (FILE *cfile, int depth) const =0
 All TinyXml classes can print themselves to a filestream.
int Row () const
 Return the position, in the original source file, of this node or attribute.
int Column () const
 See Row().
void SetUserData (void *user)
void * GetUserData ()
virtual const char * Parse (const char *p, TiXmlParsingData *data, TiXmlEncoding encoding)=0

Static Public Member Functions

void SetCondenseWhiteSpace (bool condense)
 The world does not agree on whether white space should be kept or not.
bool IsWhiteSpaceCondensed ()
 Return the current white space setting.

Static Public Attributes

const int utf8ByteTable [256]

Protected Member Functions

virtual void StreamOut (TIXML_OSTREAM *) const =0

Static Protected Member Functions

const char * SkipWhiteSpace (const char *, TiXmlEncoding encoding)
bool IsWhiteSpace (char c)
bool IsWhiteSpace (int c)
const char * ReadName (const char *p, TIXML_STRING *name, TiXmlEncoding encoding)
const char * ReadText (const char *in, TIXML_STRING *text, bool ignoreWhiteSpace, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
const char * GetEntity (const char *in, char *value, int *length, TiXmlEncoding encoding)
const char * GetChar (const char *p, char *_value, int *length, TiXmlEncoding encoding)
void PutString (const TIXML_STRING &str, TIXML_OSTREAM *out)
void PutString (const TIXML_STRING &str, TIXML_STRING *out)
bool StringEqual (const char *p, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
int IsAlpha (unsigned char anyByte, TiXmlEncoding encoding)
int IsAlphaNum (unsigned char anyByte, TiXmlEncoding encoding)
int ToLower (int v, TiXmlEncoding encoding)
void ConvertUTF32ToUTF8 (unsigned long input, char *output, int *length)

Protected Attributes

TiXmlCursor location
void * userData
 Field containing a generic user pointer.

Static Protected Attributes

const char * errorString [TIXML_ERROR_STRING_COUNT]

Private Types

enum  { NUM_ENTITY = 5, MAX_ENTITY_LENGTH = 6 }

Private Member Functions

 TiXmlBase (const TiXmlBase &)
void operator= (const TiXmlBase &base)

Static Private Attributes

Entity entity [NUM_ENTITY]
bool condenseWhiteSpace = true

Friends

class TiXmlNode
class TiXmlElement
class TiXmlDocument

Member Enumeration Documentation

anonymous enum [private]


Enumeration values:
NUM_ENTITY
MAX_ENTITY_LENGTH

Definition at line 368 of file tinyxml.h.

anonymous enum


Enumeration values:
TIXML_NO_ERROR
TIXML_ERROR
TIXML_ERROR_OPENING_FILE
TIXML_ERROR_OUT_OF_MEMORY
TIXML_ERROR_PARSING_ELEMENT
TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME
TIXML_ERROR_READING_ELEMENT_VALUE
TIXML_ERROR_READING_ATTRIBUTES
TIXML_ERROR_PARSING_EMPTY
TIXML_ERROR_READING_END_TAG
TIXML_ERROR_PARSING_UNKNOWN
TIXML_ERROR_PARSING_COMMENT
TIXML_ERROR_PARSING_DECLARATION
TIXML_ERROR_DOCUMENT_EMPTY
TIXML_ERROR_EMBEDDED_NULL
TIXML_ERROR_PARSING_CDATA
TIXML_ERROR_STRING_COUNT

Definition at line 209 of file tinyxml.h.

Constructor & Destructor Documentation

TiXmlBase::TiXmlBase (   )  [inline]


Definition at line 156 of file tinyxml.h.

virtual TiXmlBase::~TiXmlBase (   )  [inline, virtual]


Definition at line 157 of file tinyxml.h.

TiXmlBase::TiXmlBase (  const TiXmlBase &   )  [private]


Member Function Documentation

int TiXmlBase::Column (   )  const [inline]


See Row().

Definition at line 196 of file tinyxml.h.

Referenced by main().

void TiXmlBase::ConvertUTF32ToUTF8 (  unsigned long  input,
char *  output,
int *  length
)  [static, protected]


Definition at line 87 of file tinyxmlparser.cpp.

Referenced by GetEntity().

const char* TiXmlBase::GetChar (  const char *  p,
char *  _value,
int *  length,
TiXmlEncoding  encoding
)  [inline, static, protected]


Definition at line 283 of file tinyxml.h.

Referenced by ReadText().

const char * TiXmlBase::GetEntity (  const char *  in,
char *  value,
int *  length,
TiXmlEncoding  encoding
)  [static, protected]


Definition at line 427 of file tinyxmlparser.cpp.

References TiXmlBase::Entity::chr, ConvertUTF32ToUTF8(), entity, TiXmlBase::Entity::strLength, TIXML_STRING, and value.

void* TiXmlBase::GetUserData (   )  [inline]


Definition at line 199 of file tinyxml.h.

int TiXmlBase::IsAlpha (  unsigned char  anyByte,
TiXmlEncoding  encoding
)  [static, protected]


Definition at line 128 of file tinyxmlparser.cpp.

Referenced by TiXmlNode::Identify(), and ReadName().

int TiXmlBase::IsAlphaNum (  unsigned char  anyByte,
TiXmlEncoding  encoding
)  [static, protected]


Definition at line 149 of file tinyxmlparser.cpp.

Referenced by ReadName().

bool TiXmlBase::IsWhiteSpace (  int  c  )  [inline, static, protected]


Definition at line 248 of file tinyxml.h.

bool TiXmlBase::IsWhiteSpace (  char  c  )  [inline, static, protected]


Definition at line 244 of file tinyxml.h.

Referenced by TiXmlText::Blank(), TiXmlDeclaration::Parse(), TiXmlAttribute::Parse(), ReadText(), and SkipWhiteSpace().

bool TiXmlBase::IsWhiteSpaceCondensed (   )  [inline, static]


Return the current white space setting.

Definition at line 175 of file tinyxml.h.

Referenced by TiXmlElement::ReadValue().

void TiXmlBase::operator= (  const TiXmlBase &  base  )  [private]


virtual const char* TiXmlBase::Parse (  const char *  p,
TiXmlParsingData *  data,
TiXmlEncoding  encoding
)  [pure virtual]


Implemented in TiXmlAttribute, TiXmlElement, TiXmlComment, TiXmlText, TiXmlDeclaration, TiXmlUnknown, and TiXmlDocument.

Referenced by TiXmlDocument::Parse(), and TiXmlElement::ReadValue().

virtual void TiXmlBase::Print (  FILE *  cfile,
int  depth
)  const [pure virtual]


All TinyXml classes can print themselves to a filestream.

This is a formatted print, and will insert tabs and newlines.

(For an unformatted stream, use the << operator.)

Implemented in TiXmlAttribute, TiXmlElement, TiXmlComment, TiXmlText, TiXmlDeclaration, TiXmlUnknown, and TiXmlDocument.

Referenced by TiXmlDocument::Print(), and TiXmlElement::Print().

void TiXmlBase::PutString (  const TIXML_STRING &  str,
TIXML_STRING *  out
)  [static, protected]


Definition at line 43 of file tinyxml.cpp.

References entity.

void TiXmlBase::PutString (  const TIXML_STRING &  str,
TIXML_OSTREAM *  out
)  [static, protected]


Definition at line 36 of file tinyxml.cpp.

References TIXML_STRING.

Referenced by TiXmlText::Print(), TiXmlAttribute::Print(), TiXmlDeclaration::StreamOut(), TiXmlText::StreamOut(), and TiXmlAttribute::StreamOut().

const char * TiXmlBase::ReadName (  const char *  p,
TIXML_STRING *  name,
TiXmlEncoding  encoding
)  [static, protected]


Definition at line 397 of file tinyxmlparser.cpp.

References IsAlpha(), and IsAlphaNum().

Referenced by TiXmlAttribute::Parse(), and TiXmlElement::Parse().

const char * TiXmlBase::ReadText (  const char *  in,
TIXML_STRING *  text,
bool  ignoreWhiteSpace,
const char *  endTag,
bool  ignoreCase,
TiXmlEncoding  encoding
)  [static, protected]


Definition at line 561 of file tinyxmlparser.cpp.

References GetChar(), IsWhiteSpace(), SkipWhiteSpace(), and StringEqual().

Referenced by TiXmlText::Parse(), TiXmlAttribute::Parse(), and TiXmlComment::Parse().

int TiXmlBase::Row (   )  const [inline]


Return the position, in the original source file, of this node or attribute.

The row and column are 1-based. (That is the first row and first column is 1,1). If the returns values are 0 or less, then the parser does not have a row and column value.

Generally, the row and column value will be set when the TiXmlDocument::Load(), TiXmlDocument::LoadFile(), or any TiXmlNode::Parse() is called. It will NOT be set when the DOM was created from operator>>.

The values reflect the initial load. Once the DOM is modified programmatically (by adding or changing nodes and attributes) the new values will NOT update to reflect changes in the document.

There is a minor performance cost to computing the row and column. Computation can be disabled if TiXmlDocument::SetTabSize() is called with 0 as the value.

See also:
TiXmlDocument::SetTabSize()

Definition at line 195 of file tinyxml.h.

Referenced by main().

void TiXmlBase::SetCondenseWhiteSpace (  bool  condense  )  [inline, static]


The world does not agree on whether white space should be kept or not.

In order to make everyone happy, these global, static functions are provided to set whether or not TinyXml will condense all white space into a single space or not. The default is to condense. Note changing this values is not thread safe.

Definition at line 172 of file tinyxml.h.

Referenced by main().

void TiXmlBase::SetUserData (  void *  user  )  [inline]


Definition at line 198 of file tinyxml.h.

const char * TiXmlBase::SkipWhiteSpace (  const char *  ,
TiXmlEncoding  encoding
)  [static, protected]


Definition at line 313 of file tinyxmlparser.cpp.

References IsWhiteSpace(), TIXML_UTF_LEAD_0, and TIXML_UTF_LEAD_1.

Referenced by TiXmlNode::Identify(), TiXmlDeclaration::Parse(), TiXmlAttribute::Parse(), TiXmlComment::Parse(), TiXmlUnknown::Parse(), TiXmlElement::Parse(), TiXmlDocument::Parse(), ReadText(), and TiXmlElement::ReadValue().

virtual void TiXmlBase::StreamOut (  TIXML_OSTREAM *   )  const [protected, pure virtual]


Implemented in TiXmlAttribute, TiXmlElement, TiXmlComment, TiXmlText, TiXmlDeclaration, TiXmlUnknown, and TiXmlDocument.

Referenced by operator<<(), TiXmlDocument::StreamOut(), and TiXmlElement::StreamOut().

bool TiXmlBase::StringEqual (  const char *  p,
const char *  endTag,
bool  ignoreCase,
TiXmlEncoding  encoding
)  [static, protected]


Definition at line 521 of file tinyxmlparser.cpp.

References ToLower().

Referenced by TiXmlNode::Identify(), TiXmlDeclaration::Parse(), TiXmlText::Parse(), TiXmlComment::Parse(), TiXmlElement::Parse(), TiXmlDocument::Parse(), ReadText(), and TiXmlElement::ReadValue().

int TiXmlBase::ToLower (  int  v,
TiXmlEncoding  encoding
)  [inline, static, protected]


Definition at line 344 of file tinyxml.h.

Referenced by StringEqual().

Friends And Related Function Documentation

friend class TiXmlDocument [friend]


Reimplemented in TiXmlNode.

Definition at line 153 of file tinyxml.h.

friend class TiXmlElement [friend]


Reimplemented in TiXmlNode, and TiXmlText.

Definition at line 152 of file tinyxml.h.

friend class TiXmlNode [friend]


Definition at line 151 of file tinyxml.h.

Member Data Documentation

bool TiXmlBase::condenseWhiteSpace = true [static, private]


Definition at line 34 of file tinyxml.cpp.

TiXmlBase::Entity TiXmlBase::entity [static, private]


Initial value:


{
        { "&amp;",  5, '&' },
        { "&lt;",   4, '<' },
        { "&gt;",   4, '>' },
        { "&quot;", 6, '\"' },
        { "&apos;", 6, '\'' }
}

Definition at line 42 of file tinyxmlparser.cpp.

Referenced by GetEntity(), and PutString().

const char * TiXmlBase::errorString [static, protected]


Initial value:

{
        "No error",
        "Error",
        "Failed to open file",
        "Memory allocation failed.",
        "Error parsing Element.",
        "Failed to read Element name",
        "Error reading Element value.",
        "Error reading Attributes.",
        "Error: empty tag.",
        "Error reading end tag.",
        "Error parsing Unknown.",
        "Error parsing Comment.",
        "Error parsing Declaration.",
        "Error document empty.",
        "Error null (0) or unexpected EOF found in input stream.",
        "Error parsing CDATA.",
}

Definition at line 34 of file tinyxmlerror.cpp.

TiXmlCursor TiXmlBase::location [protected]


Definition at line 335 of file tinyxml.h.

void* TiXmlBase::userData [protected]


Field containing a generic user pointer.

Definition at line 338 of file tinyxml.h.

Referenced by TiXmlNode::CopyTo().

const int TiXmlBase::utf8ByteTable [static]


Initial value:


{

                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,
                2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,
                3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,
                4,      4,      4,      4,      4,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1
}

Definition at line 65 of file tinyxmlparser.cpp.

The documentation for this class was generated from the following files:
Generated on Wed Sep 5 12:54:43 2007 for DSACSS Operational Code by  doxygen 1.3.9.1
