TiXmlElement Class Reference

#include <tinyxml.h>

Inheritance diagram for TiXmlElement:

Inheritance graph
[legend]

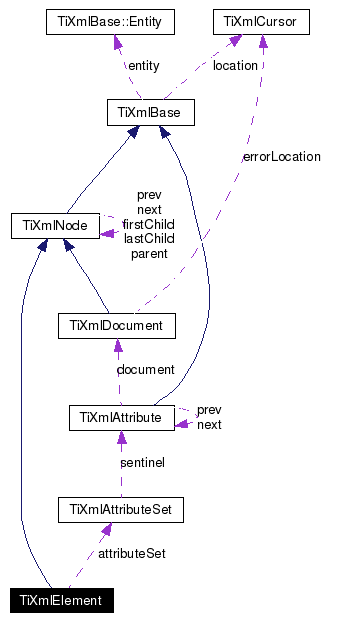

Collaboration diagram for TiXmlElement:

Collaboration graph
[legend]
List of all members.

Detailed Description

The element is a container class.

It has a value, the element name, and can contain other elements, text, comments, and unknowns. Elements also contain an arbitrary number of attributes.

Definition at line 838 of file tinyxml.h.

Public Types

enum  NodeType {
  DOCUMENT, ELEMENT, COMMENT, UNKNOWN,
  TEXT, DECLARATION, TYPECOUNT
}
 The types of XML nodes supported by TinyXml. More...
enum  {
  TIXML_NO_ERROR = 0, TIXML_ERROR, TIXML_ERROR_OPENING_FILE, TIXML_ERROR_OUT_OF_MEMORY,
  TIXML_ERROR_PARSING_ELEMENT, TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME, TIXML_ERROR_READING_ELEMENT_VALUE, TIXML_ERROR_READING_ATTRIBUTES,
  TIXML_ERROR_PARSING_EMPTY, TIXML_ERROR_READING_END_TAG, TIXML_ERROR_PARSING_UNKNOWN, TIXML_ERROR_PARSING_COMMENT,
  TIXML_ERROR_PARSING_DECLARATION, TIXML_ERROR_DOCUMENT_EMPTY, TIXML_ERROR_EMBEDDED_NULL, TIXML_ERROR_PARSING_CDATA,
  TIXML_ERROR_STRING_COUNT
}

Public Member Functions

 TiXmlElement (const char *in_value)
 Construct an element.
 TiXmlElement (const TiXmlElement &)
void operator= (const TiXmlElement &base)
virtual ~TiXmlElement ()
const char * Attribute (const char *name) const
 Given an attribute name, Attribute() returns the value for the attribute of that name, or null if none exists.
const char * Attribute (const char *name, int *i) const
 Given an attribute name, Attribute() returns the value for the attribute of that name, or null if none exists.
const char * Attribute (const char *name, double *d) const
 Given an attribute name, Attribute() returns the value for the attribute of that name, or null if none exists.
int QueryIntAttribute (const char *name, int *_value) const
 QueryIntAttribute examines the attribute - it is an alternative to the Attribute() method with richer error checking.
int QueryDoubleAttribute (const char *name, double *_value) const
 QueryDoubleAttribute examines the attribute - see QueryIntAttribute().
int QueryFloatAttribute (const char *name, float *_value) const
 QueryFloatAttribute examines the attribute - see QueryIntAttribute().
void SetAttribute (const char *name, const char *_value)
 Sets an attribute of name to a given value.
void SetAttribute (const char *name, int value)
 Sets an attribute of name to a given value.
void SetDoubleAttribute (const char *name, double value)
 Sets an attribute of name to a given value.
void RemoveAttribute (const char *name)
 Deletes an attribute with the given name.
const TiXmlAttribute * FirstAttribute () const
 Access the first attribute in this element.
TiXmlAttribute * FirstAttribute ()
const TiXmlAttribute * LastAttribute () const
 Access the last attribute in this element.
TiXmlAttribute * LastAttribute ()
const char * GetText () const
 Convenience function for easy access to the text inside an element.
virtual TiXmlNode * Clone () const
 Creates a new Element and returns it - the returned element is a copy.
virtual void Print (FILE *cfile, int depth) const
 All TinyXml classes can print themselves to a filestream.
virtual const char * Parse (const char *p, TiXmlParsingData *data, TiXmlEncoding encoding)
virtual const TiXmlElement * ToElement () const
 Cast to a more defined type. Will return null not of the requested type.
virtual TiXmlElement * ToElement ()
 Cast to a more defined type. Will return null not of the requested type.
const char * Value () const
 The meaning of 'value' changes for the specific type of TiXmlNode.
void SetValue (const char *_value)
 Changes the value of the node.
void Clear ()
 Delete all the children of this node. Does not affect 'this'.
TiXmlNode * Parent ()
 One step up the DOM.
const TiXmlNode * Parent () const
const TiXmlNode * FirstChild () const
 The first child of this node. Will be null if there are no children.
TiXmlNode * FirstChild ()
const TiXmlNode * FirstChild (const char *value) const
 The first child of this node with the matching 'value'. Will be null if none found.
TiXmlNode * FirstChild (const char *value)
 The first child of this node with the matching 'value'. Will be null if none found.
const TiXmlNode * LastChild () const
TiXmlNode * LastChild ()
 The last child of this node. Will be null if there are no children.
const TiXmlNode * LastChild (const char *value) const
TiXmlNode * LastChild (const char *value)
 The last child of this node matching 'value'. Will be null if there are no children.
const TiXmlNode * IterateChildren (const TiXmlNode *previous) const
 An alternate way to walk the children of a node.
TiXmlNode * IterateChildren (TiXmlNode *previous)
const TiXmlNode * IterateChildren (const char *value, const TiXmlNode *previous) const
 This flavor of IterateChildren searches for children with a particular 'value'.
TiXmlNode * IterateChildren (const char *value, TiXmlNode *previous)
TiXmlNode * InsertEndChild (const TiXmlNode &addThis)
 Add a new node related to this.
TiXmlNode * LinkEndChild (TiXmlNode *addThis)
 Add a new node related to this.
TiXmlNode * InsertBeforeChild (TiXmlNode *beforeThis, const TiXmlNode &addThis)
 Add a new node related to this.
TiXmlNode * InsertAfterChild (TiXmlNode *afterThis, const TiXmlNode &addThis)
 Add a new node related to this.
TiXmlNode * ReplaceChild (TiXmlNode *replaceThis, const TiXmlNode &withThis)
 Replace a child of this node.
bool RemoveChild (TiXmlNode *removeThis)
 Delete a child of this node.
const TiXmlNode * PreviousSibling () const
 Navigate to a sibling node.
TiXmlNode * PreviousSibling ()
const TiXmlNode * PreviousSibling (const char *) const
 Navigate to a sibling node.
TiXmlNode * PreviousSibling (const char *)
const TiXmlNode * NextSibling () const
 Navigate to a sibling node.
TiXmlNode * NextSibling ()
const TiXmlNode * NextSibling (const char *) const
 Navigate to a sibling node with the given 'value'.
TiXmlNode * NextSibling (const char *)
const TiXmlElement * NextSiblingElement () const
 Convenience function to get through elements.
TiXmlElement * NextSiblingElement ()
const TiXmlElement * NextSiblingElement (const char *) const
 Convenience function to get through elements.
TiXmlElement * NextSiblingElement (const char *)
const TiXmlElement * FirstChildElement () const
 Convenience function to get through elements.
TiXmlElement * FirstChildElement ()
const TiXmlElement * FirstChildElement (const char *value) const
 Convenience function to get through elements.
TiXmlElement * FirstChildElement (const char *value)
int Type () const
 Query the type (as an enumerated value, above) of this node.
const TiXmlDocument * GetDocument () const
 Return a pointer to the Document this node lives in.
TiXmlDocument * GetDocument ()
bool NoChildren () const
 Returns true if this node has no children.
virtual const TiXmlDocument * ToDocument () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlDocument * ToDocument ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlComment * ToComment () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlComment * ToComment ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlUnknown * ToUnknown () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlUnknown * ToUnknown ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlText * ToText () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlText * ToText ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlDeclaration * ToDeclaration () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlDeclaration * ToDeclaration ()
 Cast to a more defined type. Will return null if not of the requested type.
int Row () const
 Return the position, in the original source file, of this node or attribute.
int Column () const
 See Row().
void SetUserData (void *user)
void * GetUserData ()

Static Public Member Functions

void SetCondenseWhiteSpace (bool condense)
 The world does not agree on whether white space should be kept or not.
bool IsWhiteSpaceCondensed ()
 Return the current white space setting.

Static Public Attributes

const int utf8ByteTable [256]

Protected Member Functions

void CopyTo (TiXmlElement *target) const
void ClearThis ()
virtual void StreamOut (TIXML_OSTREAM *out) const
const char * ReadValue (const char *in, TiXmlParsingData *prevData, TiXmlEncoding encoding)
void CopyTo (TiXmlNode *target) const
TiXmlNode * Identify (const char *start, TiXmlEncoding encoding)

Static Protected Member Functions

const char * SkipWhiteSpace (const char *, TiXmlEncoding encoding)
bool IsWhiteSpace (char c)
bool IsWhiteSpace (int c)
const char * ReadName (const char *p, TIXML_STRING *name, TiXmlEncoding encoding)
const char * ReadText (const char *in, TIXML_STRING *text, bool ignoreWhiteSpace, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
const char * GetEntity (const char *in, char *value, int *length, TiXmlEncoding encoding)
const char * GetChar (const char *p, char *_value, int *length, TiXmlEncoding encoding)
void PutString (const TIXML_STRING &str, TIXML_OSTREAM *out)
void PutString (const TIXML_STRING &str, TIXML_STRING *out)
bool StringEqual (const char *p, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
int IsAlpha (unsigned char anyByte, TiXmlEncoding encoding)
int IsAlphaNum (unsigned char anyByte, TiXmlEncoding encoding)
int ToLower (int v, TiXmlEncoding encoding)
void ConvertUTF32ToUTF8 (unsigned long input, char *output, int *length)

Protected Attributes

TiXmlNode * parent
NodeType type
TiXmlNode * firstChild
TiXmlNode * lastChild
TIXML_STRING value
TiXmlNode * prev
TiXmlNode * next
TiXmlCursor location
void * userData
 Field containing a generic user pointer.

Static Protected Attributes

const char * errorString [TIXML_ERROR_STRING_COUNT]

Private Attributes

TiXmlAttributeSet attributeSet

Friends

TIXML_OSTREAM & operator<< (TIXML_OSTREAM &out, const TiXmlNode &base)

Member Enumeration Documentation

anonymous enum [inherited]


Enumeration values:
TIXML_NO_ERROR
TIXML_ERROR
TIXML_ERROR_OPENING_FILE
TIXML_ERROR_OUT_OF_MEMORY
TIXML_ERROR_PARSING_ELEMENT
TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME
TIXML_ERROR_READING_ELEMENT_VALUE
TIXML_ERROR_READING_ATTRIBUTES
TIXML_ERROR_PARSING_EMPTY
TIXML_ERROR_READING_END_TAG
TIXML_ERROR_PARSING_UNKNOWN
TIXML_ERROR_PARSING_COMMENT
TIXML_ERROR_PARSING_DECLARATION
TIXML_ERROR_DOCUMENT_EMPTY
TIXML_ERROR_EMBEDDED_NULL
TIXML_ERROR_PARSING_CDATA
TIXML_ERROR_STRING_COUNT

Definition at line 209 of file tinyxml.h.

enum TiXmlNode::NodeType [inherited]


The types of XML nodes supported by TinyXml.

(All the unsupported types are picked up by UNKNOWN.)

Enumeration values:
DOCUMENT
ELEMENT
COMMENT
UNKNOWN
TEXT
DECLARATION
TYPECOUNT

Definition at line 427 of file tinyxml.h.

Constructor & Destructor Documentation

TiXmlElement::TiXmlElement (  const char *  in_value  )


Construct an element.

Definition at line 616 of file tinyxml.cpp.

Referenced by Clone().

TiXmlElement::TiXmlElement (  const TiXmlElement &   )


Definition at line 634 of file tinyxml.cpp.

References CopyTo().

TiXmlElement::~TiXmlElement (   )  [virtual]


Definition at line 649 of file tinyxml.cpp.

References ClearThis().

Member Function Documentation

const char * TiXmlElement::Attribute (  const char *  name,
double *  d
)  const


Given an attribute name, Attribute() returns the value for the attribute of that name, or null if none exists.

If the attribute exists and can be converted to an double, the double value will be put in the return 'd', if 'd' is non-null.

Definition at line 693 of file tinyxml.cpp.

References Attribute().

const char * TiXmlElement::Attribute (  const char *  name,
int *  i
)  const


Given an attribute name, Attribute() returns the value for the attribute of that name, or null if none exists.

If the attribute exists and can be converted to an integer, the integer value will be put in the return 'i', if 'i' is non-null.

Definition at line 679 of file tinyxml.cpp.

References Attribute().

const char * TiXmlElement::Attribute (  const char *  name  )  const


Given an attribute name, Attribute() returns the value for the attribute of that name, or null if none exists.

Definition at line 667 of file tinyxml.cpp.

References attributeSet, TiXmlAttributeSet::Find(), TIXML_STRING, and TiXmlAttribute::Value().

Referenced by Attribute(), and main().

void TiXmlNode::Clear (   )  [inherited]


Delete all the children of this node. Does not affect 'this'.

Definition at line 177 of file tinyxml.cpp.

References TiXmlNode::firstChild, TiXmlNode::lastChild, and TiXmlNode::next.

Referenced by ClearThis(), TiXmlDocument::LoadFile(), main(), TiXmlDeclaration::operator=(), TiXmlComment::operator=(), and TiXmlDocument::operator=().

void TiXmlElement::ClearThis (   )  [protected]


Definition at line 655 of file tinyxml.cpp.

References attributeSet, TiXmlNode::Clear(), TiXmlAttributeSet::First(), and TiXmlAttributeSet::Remove().

Referenced by operator=(), and ~TiXmlElement().

TiXmlNode * TiXmlElement::Clone (   )  const [virtual]


Creates a new Element and returns it - the returned element is a copy.

Implements TiXmlNode.

Definition at line 917 of file tinyxml.cpp.

References CopyTo(), TiXmlElement(), and TiXmlNode::Value().

int TiXmlBase::Column (   )  const [inline, inherited]


See Row().

Definition at line 196 of file tinyxml.h.

Referenced by main().

void TiXmlBase::ConvertUTF32ToUTF8 (  unsigned long  input,
char *  output,
int *  length
)  [static, protected, inherited]


Definition at line 87 of file tinyxmlparser.cpp.

Referenced by TiXmlBase::GetEntity().

void TiXmlNode::CopyTo (  TiXmlNode *  target  )  const [protected, inherited]


Definition at line 170 of file tinyxml.cpp.

References TiXmlNode::SetValue(), TiXmlBase::userData, and TiXmlNode::value.

Referenced by TiXmlUnknown::CopyTo(), TiXmlDeclaration::CopyTo(), TiXmlText::CopyTo(), TiXmlComment::CopyTo(), TiXmlDocument::CopyTo(), and CopyTo().

void TiXmlElement::CopyTo (  TiXmlElement *  target  )  const [protected]


Definition at line 894 of file tinyxml.cpp.

References attribute, attributeSet, TiXmlNode::Clone(), TiXmlNode::CopyTo(), TiXmlAttributeSet::First(), TiXmlNode::LinkEndChild(), TiXmlAttribute::Name(), TiXmlAttribute::Next(), TiXmlNode::NextSibling(), SetAttribute(), and TiXmlAttribute::Value().

Referenced by Clone(), operator=(), and TiXmlElement().

TiXmlAttribute* TiXmlElement::FirstAttribute (   )  [inline]


Definition at line 932 of file tinyxml.h.

References attributeSet, and TiXmlAttributeSet::First().

const TiXmlAttribute* TiXmlElement::FirstAttribute (   )  const [inline]


Access the first attribute in this element.

Definition at line 931 of file tinyxml.h.

References attributeSet, and TiXmlAttributeSet::First().

Referenced by main().

TiXmlNode * TiXmlNode::FirstChild (  const char *  value  )  [inherited]


The first child of this node with the matching 'value'. Will be null if none found.

Definition at line 338 of file tinyxml.cpp.

References TiXmlNode::next, and TiXmlNode::Value().

const TiXmlNode * TiXmlNode::FirstChild (  const char *  value  )  const [inherited]


The first child of this node with the matching 'value'. Will be null if none found.

Definition at line 326 of file tinyxml.cpp.

References TiXmlNode::next, and TiXmlNode::Value().

TiXmlNode* TiXmlNode::FirstChild (   )  [inline, inherited]


Definition at line 486 of file tinyxml.h.

const TiXmlNode* TiXmlNode::FirstChild (   )  const [inline, inherited]


The first child of this node. Will be null if there are no children.

Definition at line 485 of file tinyxml.h.

Referenced by TiXmlHandle::Child(), TiXmlHandle::FirstChild(), TiXmlNode::FirstChildElement(), GetText(), TiXmlNode::IterateChildren(), main(), TiXmlDocument::Print(), and TiXmlDocument::StreamOut().

TiXmlElement * TiXmlNode::FirstChildElement (  const char *  value  )  [inherited]


Definition at line 521 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), and TiXmlNode::ToElement().

const TiXmlElement * TiXmlNode::FirstChildElement (  const char *  value  )  const [inherited]


Convenience function to get through elements.

Definition at line 507 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), and TiXmlNode::ToElement().

TiXmlElement * TiXmlNode::FirstChildElement (   )  [inherited]


Definition at line 493 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), and TiXmlNode::ToElement().

const TiXmlElement * TiXmlNode::FirstChildElement (   )  const [inherited]


Convenience function to get through elements.

Definition at line 479 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), and TiXmlNode::ToElement().

Referenced by TiXmlHandle::ChildElement(), TiXmlHandle::FirstChildElement(), main(), and TiXmlDocument::RootElement().

const char* TiXmlBase::GetChar (  const char *  p,
char *  _value,
int *  length,
TiXmlEncoding  encoding
)  [inline, static, protected, inherited]


Definition at line 283 of file tinyxml.h.

Referenced by TiXmlBase::ReadText().

TiXmlDocument * TiXmlNode::GetDocument (   )  [inherited]


Definition at line 604 of file tinyxml.cpp.

References TiXmlNode::parent, and TiXmlNode::ToDocument().

const TiXmlDocument * TiXmlNode::GetDocument (   )  const [inherited]


Return a pointer to the Document this node lives in.

Returns null if not in a document.

Definition at line 592 of file tinyxml.cpp.

References TiXmlNode::parent, and TiXmlNode::ToDocument().

Referenced by TiXmlNode::Identify(), TiXmlNode::LinkEndChild(), TiXmlDeclaration::Parse(), TiXmlText::Parse(), TiXmlComment::Parse(), TiXmlUnknown::Parse(), Parse(), ReadValue(), and SetAttribute().

const char * TiXmlBase::GetEntity (  const char *  in,
char *  value,
int *  length,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 427 of file tinyxmlparser.cpp.

References TiXmlBase::Entity::chr, TiXmlBase::ConvertUTF32ToUTF8(), TiXmlBase::entity, TiXmlBase::Entity::strLength, TIXML_STRING, and value.

const char * TiXmlElement::GetText (   )  const


Convenience function for easy access to the text inside an element.

Although easy and concise, GetText() is limited compared to getting the TiXmlText child and accessing it directly.

If the first child of 'this' is a TiXmlText, the GetText() returns the character string of the Text node, else null is returned.

This is a convenient method for getting the text of simple contained text:

		<foo>This is text</foo>
		const char* str = fooElement->GetText();

'str' will be a pointer to "This is text".

Note that this function can be misleading. If the element foo was created from this XML:

		<foo><b>This is text</b></foo>

then the value of str would be null. The first child node isn't a text node, it is another element. From this XML:

		<foo>This is <b>text</b></foo>
GetText() will return "This is ".

WARNING: GetText() accesses a child node - don't become confused with the similarly named TiXmlHandle::Text() and TiXmlNode::ToText() which are safe type casts on the referenced node.

Definition at line 928 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::ToText(), and TiXmlNode::Value().

Referenced by main().

void* TiXmlBase::GetUserData (   )  [inline, inherited]


Definition at line 199 of file tinyxml.h.

TiXmlNode * TiXmlNode::Identify (  const char *  start,
TiXmlEncoding  encoding
)  [protected, inherited]


Definition at line 803 of file tinyxmlparser.cpp.

References TiXmlNode::GetDocument(), TiXmlBase::IsAlpha(), TiXmlNode::parent, TiXmlText::SetCDATA(), TiXmlDocument::SetError(), TiXmlBase::SkipWhiteSpace(), TiXmlBase::StringEqual(), TIXML_ENCODING_UNKNOWN, and TiXmlNode::TiXmlElement.

Referenced by TiXmlDocument::Parse(), and ReadValue().

TiXmlNode * TiXmlNode::InsertAfterChild (  TiXmlNode *  afterThis,
const TiXmlNode &  addThis
)  [inherited]


Add a new node related to this.

Adds a child after the specified child. Returns a pointer to the new object or NULL if an error occured.

Definition at line 250 of file tinyxml.cpp.

References TiXmlNode::Clone(), TiXmlNode::lastChild, TiXmlNode::next, TiXmlNode::parent, and TiXmlNode::prev.

Referenced by main().

TiXmlNode * TiXmlNode::InsertBeforeChild (  TiXmlNode *  beforeThis,
const TiXmlNode &  addThis
)  [inherited]


Add a new node related to this.

Adds a child before the specified child. Returns a pointer to the new object or NULL if an error occured.

Definition at line 224 of file tinyxml.cpp.

References TiXmlNode::Clone(), TiXmlNode::firstChild, TiXmlNode::next, TiXmlNode::parent, and TiXmlNode::prev.

Referenced by main().

TiXmlNode * TiXmlNode::InsertEndChild (  const TiXmlNode &  addThis  )  [inherited]


Add a new node related to this.

Adds a child past the LastChild. Returns a pointer to the new object or NULL if an error occured.

Definition at line 214 of file tinyxml.cpp.

References TiXmlNode::Clone(), and TiXmlNode::LinkEndChild().

Referenced by main().

int TiXmlBase::IsAlpha (  unsigned char  anyByte,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 128 of file tinyxmlparser.cpp.

Referenced by TiXmlNode::Identify(), and TiXmlBase::ReadName().

int TiXmlBase::IsAlphaNum (  unsigned char  anyByte,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 149 of file tinyxmlparser.cpp.

Referenced by TiXmlBase::ReadName().

bool TiXmlBase::IsWhiteSpace (  int  c  )  [inline, static, protected, inherited]


Definition at line 248 of file tinyxml.h.

bool TiXmlBase::IsWhiteSpace (  char  c  )  [inline, static, protected, inherited]


Definition at line 244 of file tinyxml.h.

Referenced by TiXmlText::Blank(), TiXmlDeclaration::Parse(), TiXmlAttribute::Parse(), TiXmlBase::ReadText(), and TiXmlBase::SkipWhiteSpace().

bool TiXmlBase::IsWhiteSpaceCondensed (   )  [inline, static, inherited]


Return the current white space setting.

Definition at line 175 of file tinyxml.h.

Referenced by ReadValue().

TiXmlNode * TiXmlNode::IterateChildren (  const char *  value,
TiXmlNode *  previous
)  [inherited]


Definition at line 411 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), and TiXmlNode::parent.

const TiXmlNode * TiXmlNode::IterateChildren (  const char *  value,
const TiXmlNode *  previous
)  const [inherited]


This flavor of IterateChildren searches for children with a particular 'value'.

Definition at line 398 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), and TiXmlNode::parent.

TiXmlNode * TiXmlNode::IterateChildren (  TiXmlNode *  previous  )  [inherited]


Definition at line 385 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), and TiXmlNode::parent.

const TiXmlNode * TiXmlNode::IterateChildren (  const TiXmlNode *  previous  )  const [inherited]


An alternate way to walk the children of a node.

One way to iterate over nodes is:

			for( child = parent->FirstChild(); child; child = child->NextSibling() )

IterateChildren does the same thing with the syntax:

			child = 0;
			while( child = parent->IterateChildren( child ) )

IterateChildren takes the previous child as input and finds the next one. If the previous child is null, it returns the first. IterateChildren will return null when done.

Definition at line 372 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), and TiXmlNode::parent.

Referenced by main().

TiXmlAttribute* TiXmlElement::LastAttribute (   )  [inline]


Definition at line 934 of file tinyxml.h.

References attributeSet, and TiXmlAttributeSet::Last().

const TiXmlAttribute* TiXmlElement::LastAttribute (   )  const [inline]


Access the last attribute in this element.

Definition at line 933 of file tinyxml.h.

References attributeSet, and TiXmlAttributeSet::Last().

TiXmlNode * TiXmlNode::LastChild (  const char *  value  )  [inherited]


The last child of this node matching 'value'. Will be null if there are no children.

Definition at line 361 of file tinyxml.cpp.

References TiXmlNode::prev, and TiXmlNode::Value().

const TiXmlNode * TiXmlNode::LastChild (  const char *  value  )  const [inherited]


Definition at line 350 of file tinyxml.cpp.

References TiXmlNode::prev, and TiXmlNode::Value().

TiXmlNode* TiXmlNode::LastChild (   )  [inline, inherited]


The last child of this node. Will be null if there are no children.

Definition at line 491 of file tinyxml.h.

const TiXmlNode* TiXmlNode::LastChild (   )  const [inline, inherited]


Definition at line 490 of file tinyxml.h.

Referenced by main().

TiXmlNode * TiXmlNode::LinkEndChild (  TiXmlNode *  addThis  )  [inherited]


Add a new node related to this.

Adds a child past the LastChild.

NOTE: the node to be added is passed by pointer, and will be henceforth owned (and deleted) by tinyXml. This method is efficient and avoids an extra copy, but should be used with care as it uses a different memory model than the other insert functions.

See also:
InsertEndChild

Definition at line 194 of file tinyxml.cpp.

References TiXmlNode::firstChild, TiXmlNode::GetDocument(), TiXmlNode::lastChild, TiXmlNode::next, TiXmlNode::parent, and TiXmlNode::prev.

Referenced by TiXmlDocument::CopyTo(), CopyTo(), TiXmlNode::InsertEndChild(), TiXmlDocument::Parse(), and ReadValue().

TiXmlNode * TiXmlNode::NextSibling (  const char *   )  [inherited]


Definition at line 435 of file tinyxml.cpp.

References TiXmlNode::next, and TiXmlNode::Value().

const TiXmlNode * TiXmlNode::NextSibling (  const char *   )  const [inherited]


Navigate to a sibling node with the given 'value'.

Definition at line 424 of file tinyxml.cpp.

References TiXmlNode::next, and TiXmlNode::Value().

TiXmlNode* TiXmlNode::NextSibling (   )  [inline, inherited]


Definition at line 582 of file tinyxml.h.

const TiXmlNode* TiXmlNode::NextSibling (   )  const [inline, inherited]


Navigate to a sibling node.

Definition at line 581 of file tinyxml.h.

Referenced by TiXmlHandle::Child(), TiXmlDocument::CopyTo(), CopyTo(), TiXmlNode::FirstChildElement(), TiXmlNode::IterateChildren(), main(), TiXmlNode::NextSiblingElement(), TiXmlDocument::Print(), Print(), TiXmlDocument::StreamOut(), and StreamOut().

TiXmlElement * TiXmlNode::NextSiblingElement (  const char *   )  [inherited]


Definition at line 577 of file tinyxml.cpp.

References TiXmlNode::NextSibling(), and TiXmlNode::ToElement().

const TiXmlElement * TiXmlNode::NextSiblingElement (  const char *   )  const [inherited]


Convenience function to get through elements.

Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

Definition at line 563 of file tinyxml.cpp.

References TiXmlNode::NextSibling(), and TiXmlNode::ToElement().

TiXmlElement * TiXmlNode::NextSiblingElement (   )  [inherited]


Definition at line 549 of file tinyxml.cpp.

References TiXmlNode::NextSibling(), and TiXmlNode::ToElement().

const TiXmlElement * TiXmlNode::NextSiblingElement (   )  const [inherited]


Convenience function to get through elements.

Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

Definition at line 535 of file tinyxml.cpp.

References TiXmlNode::NextSibling(), and TiXmlNode::ToElement().

Referenced by TiXmlHandle::ChildElement(), and main().

bool TiXmlNode::NoChildren (   )  const [inline, inherited]


Returns true if this node has no children.

Definition at line 633 of file tinyxml.h.

void TiXmlElement::operator= (  const TiXmlElement &  base  )


Definition at line 642 of file tinyxml.cpp.

References ClearThis(), and CopyTo().

const TiXmlNode* TiXmlNode::Parent (   )  const [inline, inherited]


Definition at line 483 of file tinyxml.h.

TiXmlNode* TiXmlNode::Parent (   )  [inline, inherited]


One step up the DOM.

Definition at line 482 of file tinyxml.h.

const char * TiXmlElement::Parse (  const char *  p,
TiXmlParsingData *  data,
TiXmlEncoding  encoding
)  [virtual]


Implements TiXmlBase.

Definition at line 1022 of file tinyxmlparser.cpp.

References TiXmlAttributeSet::Add(), attributeSet, TiXmlAttributeSet::Find(), TiXmlNode::GetDocument(), TiXmlAttribute::NameTStr(), TiXmlAttribute::Parse(), TiXmlBase::ReadName(), ReadValue(), TiXmlAttribute::SetDocument(), TiXmlDocument::SetError(), TiXmlAttribute::SetValue(), TiXmlBase::SkipWhiteSpace(), TiXmlBase::StringEqual(), TIXML_STRING, and TiXmlAttribute::Value().

Referenced by main().

TiXmlNode * TiXmlNode::PreviousSibling (  const char *   )  [inherited]


Definition at line 457 of file tinyxml.cpp.

References TiXmlNode::prev, and TiXmlNode::Value().

const TiXmlNode * TiXmlNode::PreviousSibling (  const char *   )  const [inherited]


Navigate to a sibling node.

Definition at line 446 of file tinyxml.cpp.

References TiXmlNode::prev, and TiXmlNode::Value().

TiXmlNode* TiXmlNode::PreviousSibling (   )  [inline, inherited]


Definition at line 567 of file tinyxml.h.

const TiXmlNode* TiXmlNode::PreviousSibling (   )  const [inline, inherited]


Navigate to a sibling node.

Definition at line 566 of file tinyxml.h.

Referenced by main().

void TiXmlElement::Print (  FILE *  cfile,
int  depth
)  const [virtual]


All TinyXml classes can print themselves to a filestream.

This is a formatted print, and will insert tabs and newlines.

(For an unformatted stream, use the << operator.)

Implements TiXmlBase.

Definition at line 812 of file tinyxml.cpp.

References attributeSet, TiXmlAttributeSet::First(), TiXmlAttribute::Next(), TiXmlNode::NextSibling(), TiXmlBase::Print(), TiXmlAttribute::Print(), and TiXmlNode::ToText().

Referenced by main().

void TiXmlBase::PutString (  const TIXML_STRING &  str,
TIXML_STRING *  out
)  [static, protected, inherited]


Definition at line 43 of file tinyxml.cpp.

References TiXmlBase::entity.

void TiXmlBase::PutString (  const TIXML_STRING &  str,
TIXML_OSTREAM *  out
)  [static, protected, inherited]


Definition at line 36 of file tinyxml.cpp.

References TIXML_STRING.

Referenced by TiXmlText::Print(), TiXmlAttribute::Print(), TiXmlDeclaration::StreamOut(), TiXmlText::StreamOut(), and TiXmlAttribute::StreamOut().

int TiXmlElement::QueryDoubleAttribute (  const char *  name,
double *  _value
)  const


QueryDoubleAttribute examines the attribute - see QueryIntAttribute().

Definition at line 718 of file tinyxml.cpp.

References attributeSet, TiXmlAttributeSet::Find(), TiXmlAttribute::QueryDoubleValue(), and TIXML_STRING.

Referenced by main(), and QueryFloatAttribute().

int TiXmlElement::QueryFloatAttribute (  const char *  name,
float *  _value
)  const [inline]


QueryFloatAttribute examines the attribute - see QueryIntAttribute().

Definition at line 887 of file tinyxml.h.

References QueryDoubleAttribute().

int TiXmlElement::QueryIntAttribute (  const char *  name,
int *  _value
)  const


QueryIntAttribute examines the attribute - it is an alternative to the Attribute() method with richer error checking.

If the attribute is an integer, it is stored in 'value' and the call returns TIXML_SUCCESS. If it is not an integer, it returns TIXML_WRONG_TYPE. If the attribute does not exist, then TIXML_NO_ATTRIBUTE is returned.

Definition at line 707 of file tinyxml.cpp.

References attributeSet, TiXmlAttributeSet::Find(), TiXmlAttribute::QueryIntValue(), and TIXML_STRING.

Referenced by main().

const char * TiXmlBase::ReadName (  const char *  p,
TIXML_STRING *  name,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 397 of file tinyxmlparser.cpp.

References TiXmlBase::IsAlpha(), and TiXmlBase::IsAlphaNum().

Referenced by TiXmlAttribute::Parse(), and Parse().

const char * TiXmlBase::ReadText (  const char *  in,
TIXML_STRING *  text,
bool  ignoreWhiteSpace,
const char *  endTag,
bool  ignoreCase,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 561 of file tinyxmlparser.cpp.

References TiXmlBase::GetChar(), TiXmlBase::IsWhiteSpace(), TiXmlBase::SkipWhiteSpace(), and TiXmlBase::StringEqual().

Referenced by TiXmlText::Parse(), TiXmlAttribute::Parse(), and TiXmlComment::Parse().

const char * TiXmlElement::ReadValue (  const char *  in,
TiXmlParsingData *  prevData,
TiXmlEncoding  encoding
)  [protected]


Definition at line 1142 of file tinyxmlparser.cpp.

References TiXmlText::Blank(), TiXmlNode::GetDocument(), TiXmlNode::Identify(), TiXmlBase::IsWhiteSpaceCondensed(), TiXmlNode::LinkEndChild(), TiXmlBase::Parse(), TiXmlText::Parse(), TiXmlDocument::SetError(), TiXmlBase::SkipWhiteSpace(), and TiXmlBase::StringEqual().

Referenced by Parse().

void TiXmlElement::RemoveAttribute (  const char *  name  )


Deletes an attribute with the given name.

Definition at line 468 of file tinyxml.cpp.

References attributeSet, TiXmlAttributeSet::Find(), TiXmlAttributeSet::Remove(), and TIXML_STRING.

bool TiXmlNode::RemoveChild (  TiXmlNode *  removeThis  )  [inherited]


Delete a child of this node.

Definition at line 304 of file tinyxml.cpp.

References TiXmlNode::firstChild, TiXmlNode::lastChild, TiXmlNode::next, TiXmlNode::parent, and TiXmlNode::prev.

Referenced by main().

TiXmlNode * TiXmlNode::ReplaceChild (  TiXmlNode *  replaceThis,
const TiXmlNode &  withThis
)  [inherited]


Replace a child of this node.

Returns a pointer to the new object or NULL if an error occured.

Definition at line 276 of file tinyxml.cpp.

References TiXmlNode::Clone(), TiXmlNode::firstChild, TiXmlNode::lastChild, TiXmlNode::next, TiXmlNode::parent, and TiXmlNode::prev.

int TiXmlBase::Row (   )  const [inline, inherited]


Return the position, in the original source file, of this node or attribute.

The row and column are 1-based. (That is the first row and first column is 1,1). If the returns values are 0 or less, then the parser does not have a row and column value.

Generally, the row and column value will be set when the TiXmlDocument::Load(), TiXmlDocument::LoadFile(), or any TiXmlNode::Parse() is called. It will NOT be set when the DOM was created from operator>>.

The values reflect the initial load. Once the DOM is modified programmatically (by adding or changing nodes and attributes) the new values will NOT update to reflect changes in the document.

There is a minor performance cost to computing the row and column. Computation can be disabled if TiXmlDocument::SetTabSize() is called with 0 as the value.

See also:
TiXmlDocument::SetTabSize()

Definition at line 195 of file tinyxml.h.

Referenced by main().

void TiXmlElement::SetAttribute (  const char *  name,
int  value
)


Sets an attribute of name to a given value.

The attribute will be created if it does not exist, or changed if it does.

Definition at line 729 of file tinyxml.cpp.

References SetAttribute().

void TiXmlElement::SetAttribute (  const char *  name,
const char *  _value
)


Sets an attribute of name to a given value.

The attribute will be created if it does not exist, or changed if it does.

Definition at line 763 of file tinyxml.cpp.

References TiXmlAttributeSet::Add(), attributeSet, TiXmlAttributeSet::Find(), TiXmlNode::GetDocument(), TiXmlDocument::SetError(), TiXmlAttribute::SetValue(), TIXML_ENCODING_UNKNOWN, and TIXML_STRING.

Referenced by CopyTo(), main(), SetAttribute(), and SetDoubleAttribute().

void TiXmlBase::SetCondenseWhiteSpace (  bool  condense  )  [inline, static, inherited]


The world does not agree on whether white space should be kept or not.

In order to make everyone happy, these global, static functions are provided to set whether or not TinyXml will condense all white space into a single space or not. The default is to condense. Note changing this values is not thread safe.

Definition at line 172 of file tinyxml.h.

Referenced by main().

void TiXmlElement::SetDoubleAttribute (  const char *  name,
double  value
)


Sets an attribute of name to a given value.

The attribute will be created if it does not exist, or changed if it does.

Definition at line 751 of file tinyxml.cpp.

References SetAttribute().

void TiXmlBase::SetUserData (  void *  user  )  [inline, inherited]


Definition at line 198 of file tinyxml.h.

void TiXmlNode::SetValue (  const char *  _value  )  [inline, inherited]


Changes the value of the node.

Defined as:

		Document:	filename of the xml file
		Element:	name of the element
		Comment:	the comment text
		Unknown:	the tag contents
		Text:		the text string

Definition at line 471 of file tinyxml.h.

References TiXmlNode::value.

Referenced by TiXmlNode::CopyTo(), and TiXmlText::TiXmlText().

const char * TiXmlBase::SkipWhiteSpace (  const char *  ,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 313 of file tinyxmlparser.cpp.

References TiXmlBase::IsWhiteSpace(), TIXML_UTF_LEAD_0, and TIXML_UTF_LEAD_1.

Referenced by TiXmlNode::Identify(), TiXmlDeclaration::Parse(), TiXmlAttribute::Parse(), TiXmlComment::Parse(), TiXmlUnknown::Parse(), Parse(), TiXmlDocument::Parse(), TiXmlBase::ReadText(), and ReadValue().

void TiXmlElement::StreamOut (  TIXML_OSTREAM *  out  )  const [protected, virtual]


Implements TiXmlBase.

Definition at line 863 of file tinyxml.cpp.

References attributeSet, TiXmlAttributeSet::First(), TiXmlAttribute::Next(), TiXmlNode::NextSibling(), TiXmlBase::StreamOut(), TiXmlAttribute::StreamOut(), and value.

bool TiXmlBase::StringEqual (  const char *  p,
const char *  endTag,
bool  ignoreCase,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 521 of file tinyxmlparser.cpp.

References TiXmlBase::ToLower().

Referenced by TiXmlNode::Identify(), TiXmlDeclaration::Parse(), TiXmlText::Parse(), TiXmlComment::Parse(), Parse(), TiXmlDocument::Parse(), TiXmlBase::ReadText(), and ReadValue().

virtual TiXmlComment* TiXmlNode::ToComment (   )  [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlComment.

Definition at line 644 of file tinyxml.h.

virtual const TiXmlComment* TiXmlNode::ToComment (   )  const [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlComment.

Definition at line 637 of file tinyxml.h.

Referenced by main().

virtual TiXmlDeclaration* TiXmlNode::ToDeclaration (   )  [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDeclaration.

Definition at line 647 of file tinyxml.h.

virtual const TiXmlDeclaration* TiXmlNode::ToDeclaration (   )  const [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDeclaration.

Definition at line 640 of file tinyxml.h.

Referenced by main(), and TiXmlDocument::Parse().

virtual TiXmlDocument* TiXmlNode::ToDocument (   )  [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDocument.

Definition at line 642 of file tinyxml.h.

virtual const TiXmlDocument* TiXmlNode::ToDocument (   )  const [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDocument.

Definition at line 635 of file tinyxml.h.

Referenced by TiXmlNode::GetDocument().

virtual TiXmlElement* TiXmlElement::ToElement (   )  [inline, virtual]


Cast to a more defined type. Will return null not of the requested type.

Reimplemented from TiXmlNode.

Definition at line 981 of file tinyxml.h.

virtual const TiXmlElement* TiXmlElement::ToElement (   )  const [inline, virtual]


Cast to a more defined type. Will return null not of the requested type.

Reimplemented from TiXmlNode.

Definition at line 980 of file tinyxml.h.

int TiXmlBase::ToLower (  int  v,
TiXmlEncoding  encoding
)  [inline, static, protected, inherited]


Definition at line 344 of file tinyxml.h.

Referenced by TiXmlBase::StringEqual().

virtual TiXmlText* TiXmlNode::ToText (   )  [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlText.

Definition at line 646 of file tinyxml.h.

virtual const TiXmlText* TiXmlNode::ToText (   )  const [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlText.

Definition at line 639 of file tinyxml.h.

Referenced by GetText(), main(), and Print().

virtual TiXmlUnknown* TiXmlNode::ToUnknown (   )  [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlUnknown.

Definition at line 645 of file tinyxml.h.

virtual const TiXmlUnknown* TiXmlNode::ToUnknown (   )  const [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlUnknown.

Definition at line 638 of file tinyxml.h.

int TiXmlNode::Type (   )  const [inline, inherited]


Query the type (as an enumerated value, above) of this node.

The possible types are: DOCUMENT, ELEMENT, COMMENT, UNKNOWN, TEXT, and DECLARATION.

Definition at line 624 of file tinyxml.h.

const char* TiXmlNode::Value (   )  const [inline, inherited]


The meaning of 'value' changes for the specific type of TiXmlNode.

		Document:	filename of the xml file
		Element:	name of the element
		Comment:	the comment text
		Unknown:	the tag contents
		Text:		the text string

The subclasses will wrap this function.

Definition at line 452 of file tinyxml.h.

References TiXmlNode::value.

Referenced by Clone(), TiXmlNode::FirstChild(), GetText(), TiXmlNode::LastChild(), main(), TiXmlNode::NextSibling(), and TiXmlNode::PreviousSibling().

Friends And Related Function Documentation

TIXML_OSTREAM& operator<< (  TIXML_OSTREAM &  out,
const TiXmlNode &  base
)  [friend, inherited]


Definition at line 1660 of file tinyxml.cpp.

Member Data Documentation

TiXmlAttributeSet TiXmlElement::attributeSet [private]


Definition at line 1002 of file tinyxml.h.

Referenced by Attribute(), ClearThis(), CopyTo(), FirstAttribute(), LastAttribute(), Parse(), Print(), QueryDoubleAttribute(), QueryIntAttribute(), RemoveAttribute(), SetAttribute(), and StreamOut().

const char * TiXmlBase::errorString [static, protected, inherited]


Initial value:

{
        "No error",
        "Error",
        "Failed to open file",
        "Memory allocation failed.",
        "Error parsing Element.",
        "Failed to read Element name",
        "Error reading Element value.",
        "Error reading Attributes.",
        "Error: empty tag.",
        "Error reading end tag.",
        "Error parsing Unknown.",
        "Error parsing Comment.",
        "Error parsing Declaration.",
        "Error document empty.",
        "Error null (0) or unexpected EOF found in input stream.",
        "Error parsing CDATA.",
}

Definition at line 34 of file tinyxmlerror.cpp.

TiXmlNode* TiXmlNode::firstChild [protected, inherited]


Definition at line 672 of file tinyxml.h.

Referenced by TiXmlNode::Clear(), TiXmlNode::InsertBeforeChild(), TiXmlNode::LinkEndChild(), TiXmlNode::RemoveChild(), TiXmlNode::ReplaceChild(), and TiXmlNode::TiXmlNode().

TiXmlNode* TiXmlNode::lastChild [protected, inherited]


Definition at line 673 of file tinyxml.h.

Referenced by TiXmlNode::Clear(), TiXmlNode::InsertAfterChild(), TiXmlNode::LinkEndChild(), TiXmlNode::RemoveChild(), TiXmlNode::ReplaceChild(), and TiXmlNode::TiXmlNode().

TiXmlCursor TiXmlBase::location [protected, inherited]


Definition at line 335 of file tinyxml.h.

TiXmlNode* TiXmlNode::next [protected, inherited]


Definition at line 678 of file tinyxml.h.

Referenced by TiXmlNode::Clear(), TiXmlAttributeSet::First(), TiXmlNode::FirstChild(), TiXmlNode::InsertAfterChild(), TiXmlNode::InsertBeforeChild(), TiXmlNode::LinkEndChild(), TiXmlNode::NextSibling(), TiXmlNode::RemoveChild(), TiXmlNode::ReplaceChild(), TiXmlNode::TiXmlNode(), and TiXmlNode::~TiXmlNode().

TiXmlNode* TiXmlNode::parent [protected, inherited]


Definition at line 669 of file tinyxml.h.

Referenced by TiXmlNode::GetDocument(), TiXmlNode::Identify(), TiXmlNode::InsertAfterChild(), TiXmlNode::InsertBeforeChild(), TiXmlNode::IterateChildren(), TiXmlNode::LinkEndChild(), TiXmlNode::RemoveChild(), TiXmlNode::ReplaceChild(), and TiXmlNode::TiXmlNode().

TiXmlNode* TiXmlNode::prev [protected, inherited]


Definition at line 677 of file tinyxml.h.

Referenced by TiXmlNode::InsertAfterChild(), TiXmlNode::InsertBeforeChild(), TiXmlAttributeSet::Last(), TiXmlNode::LastChild(), TiXmlNode::LinkEndChild(), TiXmlNode::PreviousSibling(), TiXmlNode::RemoveChild(), TiXmlNode::ReplaceChild(), and TiXmlNode::TiXmlNode().

NodeType TiXmlNode::type [protected, inherited]


Definition at line 670 of file tinyxml.h.

Referenced by TiXmlNode::TiXmlNode().

void* TiXmlBase::userData [protected, inherited]


Field containing a generic user pointer.

Definition at line 338 of file tinyxml.h.

Referenced by TiXmlNode::CopyTo().

const int TiXmlBase::utf8ByteTable [static, inherited]


Initial value:


{

                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,
                2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,
                3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,
                4,      4,      4,      4,      4,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1
}

Definition at line 65 of file tinyxmlparser.cpp.

TIXML_STRING TiXmlNode::value [protected, inherited]


Definition at line 675 of file tinyxml.h.

Referenced by TiXmlNode::CopyTo(), TiXmlNode::SetValue(), and TiXmlNode::Value().

The documentation for this class was generated from the following files:
Generated on Wed Sep 5 12:54:44 2007 for DSACSS Operational Code by  doxygen 1.3.9.1
