TiXmlDocument Class Reference

#include <tinyxml.h>

Inheritance diagram for TiXmlDocument:

Inheritance graph
[legend]

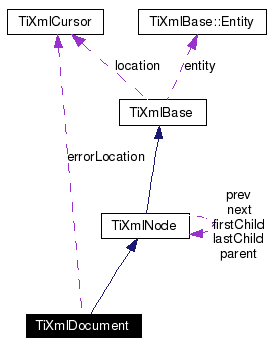

Collaboration diagram for TiXmlDocument:

Collaboration graph
[legend]
List of all members.

Detailed Description

Always the top level node.

A document binds together all the XML pieces. It can be saved, loaded, and printed to the screen. The 'value' of a document node is the xml file name.

Definition at line 1219 of file tinyxml.h.

Public Types

enum  NodeType {
  DOCUMENT, ELEMENT, COMMENT, UNKNOWN,
  TEXT, DECLARATION, TYPECOUNT
}
 The types of XML nodes supported by TinyXml. More...
enum  {
  TIXML_NO_ERROR = 0, TIXML_ERROR, TIXML_ERROR_OPENING_FILE, TIXML_ERROR_OUT_OF_MEMORY,
  TIXML_ERROR_PARSING_ELEMENT, TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME, TIXML_ERROR_READING_ELEMENT_VALUE, TIXML_ERROR_READING_ATTRIBUTES,
  TIXML_ERROR_PARSING_EMPTY, TIXML_ERROR_READING_END_TAG, TIXML_ERROR_PARSING_UNKNOWN, TIXML_ERROR_PARSING_COMMENT,
  TIXML_ERROR_PARSING_DECLARATION, TIXML_ERROR_DOCUMENT_EMPTY, TIXML_ERROR_EMBEDDED_NULL, TIXML_ERROR_PARSING_CDATA,
  TIXML_ERROR_STRING_COUNT
}

Public Member Functions

 TiXmlDocument ()
 Create an empty document, that has no name.
 TiXmlDocument (const char *documentName)
 Create a document with a name. The name of the document is also the filename of the xml.
 TiXmlDocument (const TiXmlDocument &copy)
void operator= (const TiXmlDocument &copy)
virtual ~TiXmlDocument ()
bool LoadFile (TiXmlEncoding encoding=TIXML_DEFAULT_ENCODING)
 Load a file using the current document value.
bool SaveFile () const
 Save a file using the current document value. Returns true if successful.
bool LoadFile (const char *filename, TiXmlEncoding encoding=TIXML_DEFAULT_ENCODING)
 Load a file using the given filename. Returns true if successful.
bool SaveFile (const char *filename) const
 Save a file using the given filename. Returns true if successful.
bool LoadFile (FILE *, TiXmlEncoding encoding=TIXML_DEFAULT_ENCODING)
 Load a file using the given FILE*.
bool SaveFile (FILE *) const
 Save a file using the given FILE*. Returns true if successful.
virtual const char * Parse (const char *p, TiXmlParsingData *data=0, TiXmlEncoding encoding=TIXML_DEFAULT_ENCODING)
 Parse the given null terminated block of xml data.
const TiXmlElement * RootElement () const
 Get the root element -- the only top level element -- of the document.
TiXmlElement * RootElement ()
bool Error () const
 If an error occurs, Error will be set to true.
const char * ErrorDesc () const
 Contains a textual (english) description of the error if one occurs.
int ErrorId () const
 Generally, you probably want the error string ( ErrorDesc() ).
int ErrorRow ()
 Returns the location (if known) of the error.
int ErrorCol ()
 The column where the error occured. See ErrorRow().
void SetTabSize (int _tabsize)
 SetTabSize() allows the error reporting functions (ErrorRow() and ErrorCol()) to report the correct values for row and column.
int TabSize () const
void ClearError ()
 If you have handled the error, it can be reset with this call.
void Print () const
 Dump the document to standard out.
virtual void Print (FILE *cfile, int depth=0) const
 Print this Document to a FILE stream.
void SetError (int err, const char *errorLocation, TiXmlParsingData *prevData, TiXmlEncoding encoding)
virtual const TiXmlDocument * ToDocument () const
 Cast to a more defined type. Will return null not of the requested type.
virtual TiXmlDocument * ToDocument ()
 Cast to a more defined type. Will return null not of the requested type.
const char * Value () const
 The meaning of 'value' changes for the specific type of TiXmlNode.
void SetValue (const char *_value)
 Changes the value of the node.
void Clear ()
 Delete all the children of this node. Does not affect 'this'.
TiXmlNode * Parent ()
 One step up the DOM.
const TiXmlNode * Parent () const
const TiXmlNode * FirstChild () const
 The first child of this node. Will be null if there are no children.
TiXmlNode * FirstChild ()
const TiXmlNode * FirstChild (const char *value) const
 The first child of this node with the matching 'value'. Will be null if none found.
TiXmlNode * FirstChild (const char *value)
 The first child of this node with the matching 'value'. Will be null if none found.
const TiXmlNode * LastChild () const
TiXmlNode * LastChild ()
 The last child of this node. Will be null if there are no children.
const TiXmlNode * LastChild (const char *value) const
TiXmlNode * LastChild (const char *value)
 The last child of this node matching 'value'. Will be null if there are no children.
const TiXmlNode * IterateChildren (const TiXmlNode *previous) const
 An alternate way to walk the children of a node.
TiXmlNode * IterateChildren (TiXmlNode *previous)
const TiXmlNode * IterateChildren (const char *value, const TiXmlNode *previous) const
 This flavor of IterateChildren searches for children with a particular 'value'.
TiXmlNode * IterateChildren (const char *value, TiXmlNode *previous)
TiXmlNode * InsertEndChild (const TiXmlNode &addThis)
 Add a new node related to this.
TiXmlNode * LinkEndChild (TiXmlNode *addThis)
 Add a new node related to this.
TiXmlNode * InsertBeforeChild (TiXmlNode *beforeThis, const TiXmlNode &addThis)
 Add a new node related to this.
TiXmlNode * InsertAfterChild (TiXmlNode *afterThis, const TiXmlNode &addThis)
 Add a new node related to this.
TiXmlNode * ReplaceChild (TiXmlNode *replaceThis, const TiXmlNode &withThis)
 Replace a child of this node.
bool RemoveChild (TiXmlNode *removeThis)
 Delete a child of this node.
const TiXmlNode * PreviousSibling () const
 Navigate to a sibling node.
TiXmlNode * PreviousSibling ()
const TiXmlNode * PreviousSibling (const char *) const
 Navigate to a sibling node.
TiXmlNode * PreviousSibling (const char *)
const TiXmlNode * NextSibling () const
 Navigate to a sibling node.
TiXmlNode * NextSibling ()
const TiXmlNode * NextSibling (const char *) const
 Navigate to a sibling node with the given 'value'.
TiXmlNode * NextSibling (const char *)
const TiXmlElement * NextSiblingElement () const
 Convenience function to get through elements.
TiXmlElement * NextSiblingElement ()
const TiXmlElement * NextSiblingElement (const char *) const
 Convenience function to get through elements.
TiXmlElement * NextSiblingElement (const char *)
const TiXmlElement * FirstChildElement () const
 Convenience function to get through elements.
TiXmlElement * FirstChildElement ()
const TiXmlElement * FirstChildElement (const char *value) const
 Convenience function to get through elements.
TiXmlElement * FirstChildElement (const char *value)
int Type () const
 Query the type (as an enumerated value, above) of this node.
const TiXmlDocument * GetDocument () const
 Return a pointer to the Document this node lives in.
TiXmlDocument * GetDocument ()
bool NoChildren () const
 Returns true if this node has no children.
virtual const TiXmlElement * ToElement () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlElement * ToElement ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlComment * ToComment () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlComment * ToComment ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlUnknown * ToUnknown () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlUnknown * ToUnknown ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlText * ToText () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlText * ToText ()
 Cast to a more defined type. Will return null if not of the requested type.
virtual const TiXmlDeclaration * ToDeclaration () const
 Cast to a more defined type. Will return null if not of the requested type.
virtual TiXmlDeclaration * ToDeclaration ()
 Cast to a more defined type. Will return null if not of the requested type.
int Row () const
 Return the position, in the original source file, of this node or attribute.
int Column () const
 See Row().
void SetUserData (void *user)
void * GetUserData ()

Static Public Member Functions

void SetCondenseWhiteSpace (bool condense)
 The world does not agree on whether white space should be kept or not.
bool IsWhiteSpaceCondensed ()
 Return the current white space setting.

Static Public Attributes

const int utf8ByteTable [256]

Protected Member Functions

virtual void StreamOut (TIXML_OSTREAM *out) const
virtual TiXmlNode * Clone () const
 Create an exact duplicate of this node and return it.
void CopyTo (TiXmlNode *target) const
TiXmlNode * Identify (const char *start, TiXmlEncoding encoding)

Static Protected Member Functions

const char * SkipWhiteSpace (const char *, TiXmlEncoding encoding)
bool IsWhiteSpace (char c)
bool IsWhiteSpace (int c)
const char * ReadName (const char *p, TIXML_STRING *name, TiXmlEncoding encoding)
const char * ReadText (const char *in, TIXML_STRING *text, bool ignoreWhiteSpace, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
const char * GetEntity (const char *in, char *value, int *length, TiXmlEncoding encoding)
const char * GetChar (const char *p, char *_value, int *length, TiXmlEncoding encoding)
void PutString (const TIXML_STRING &str, TIXML_OSTREAM *out)
void PutString (const TIXML_STRING &str, TIXML_STRING *out)
bool StringEqual (const char *p, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
int IsAlpha (unsigned char anyByte, TiXmlEncoding encoding)
int IsAlphaNum (unsigned char anyByte, TiXmlEncoding encoding)
int ToLower (int v, TiXmlEncoding encoding)
void ConvertUTF32ToUTF8 (unsigned long input, char *output, int *length)

Protected Attributes

TiXmlNode * parent
NodeType type
TiXmlNode * firstChild
TiXmlNode * lastChild
TIXML_STRING value
TiXmlNode * prev
TiXmlNode * next
TiXmlCursor location
void * userData
 Field containing a generic user pointer.

Static Protected Attributes

const char * errorString [TIXML_ERROR_STRING_COUNT]

Private Member Functions

void CopyTo (TiXmlDocument *target) const

Private Attributes

bool error
int errorId
TIXML_STRING errorDesc
int tabsize
TiXmlCursor errorLocation
bool useMicrosoftBOM

Friends

TIXML_OSTREAM & operator<< (TIXML_OSTREAM &out, const TiXmlNode &base)

Member Enumeration Documentation

anonymous enum [inherited]


Enumeration values:
TIXML_NO_ERROR
TIXML_ERROR
TIXML_ERROR_OPENING_FILE
TIXML_ERROR_OUT_OF_MEMORY
TIXML_ERROR_PARSING_ELEMENT
TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME
TIXML_ERROR_READING_ELEMENT_VALUE
TIXML_ERROR_READING_ATTRIBUTES
TIXML_ERROR_PARSING_EMPTY
TIXML_ERROR_READING_END_TAG
TIXML_ERROR_PARSING_UNKNOWN
TIXML_ERROR_PARSING_COMMENT
TIXML_ERROR_PARSING_DECLARATION
TIXML_ERROR_DOCUMENT_EMPTY
TIXML_ERROR_EMBEDDED_NULL
TIXML_ERROR_PARSING_CDATA
TIXML_ERROR_STRING_COUNT

Definition at line 209 of file tinyxml.h.

enum TiXmlNode::NodeType [inherited]


The types of XML nodes supported by TinyXml.

(All the unsupported types are picked up by UNKNOWN.)

Enumeration values:
DOCUMENT
ELEMENT
COMMENT
UNKNOWN
TEXT
DECLARATION
TYPECOUNT

Definition at line 427 of file tinyxml.h.

Constructor & Destructor Documentation

TiXmlDocument::TiXmlDocument (   )


Create an empty document, that has no name.

Definition at line 941 of file tinyxml.cpp.

References ClearError(), tabsize, and useMicrosoftBOM.

Referenced by Clone().

TiXmlDocument::TiXmlDocument (  const char *  documentName  )


Create a document with a name. The name of the document is also the filename of the xml.

Definition at line 948 of file tinyxml.cpp.

References ClearError(), tabsize, and useMicrosoftBOM.

TiXmlDocument::TiXmlDocument (  const TiXmlDocument &  copy  )


Definition at line 968 of file tinyxml.cpp.

References CopyTo().

virtual TiXmlDocument::~TiXmlDocument (   )  [inline, virtual]


Definition at line 1235 of file tinyxml.h.

Member Function Documentation

void TiXmlNode::Clear (   )  [inherited]


Delete all the children of this node. Does not affect 'this'.

Definition at line 177 of file tinyxml.cpp.

References TiXmlNode::firstChild, TiXmlNode::lastChild, and TiXmlNode::next.

Referenced by TiXmlElement::ClearThis(), LoadFile(), main(), TiXmlDeclaration::operator=(), TiXmlComment::operator=(), and operator=().

void TiXmlDocument::ClearError (   )  [inline]


If you have handled the error, it can be reset with this call.

The error state is automatically cleared if you Parse a new XML block.

Definition at line 1339 of file tinyxml.h.

References TiXmlCursor::col, error, errorDesc, errorId, errorLocation, and TiXmlCursor::row.

Referenced by main(), Parse(), and TiXmlDocument().

TiXmlNode * TiXmlDocument::Clone (   )  const [protected, virtual]


Create an exact duplicate of this node and return it.

The memory must be deleted by the caller.

Implements TiXmlNode.

Definition at line 1192 of file tinyxml.cpp.

References CopyTo(), and TiXmlDocument().

int TiXmlBase::Column (   )  const [inline, inherited]


See Row().

Definition at line 196 of file tinyxml.h.

Referenced by main().

void TiXmlBase::ConvertUTF32ToUTF8 (  unsigned long  input,
char *  output,
int *  length
)  [static, protected, inherited]


Definition at line 87 of file tinyxmlparser.cpp.

Referenced by TiXmlBase::GetEntity().

void TiXmlNode::CopyTo (  TiXmlNode *  target  )  const [protected, inherited]


Definition at line 170 of file tinyxml.cpp.

References TiXmlNode::SetValue(), TiXmlBase::userData, and TiXmlNode::value.

Referenced by TiXmlUnknown::CopyTo(), TiXmlDeclaration::CopyTo(), TiXmlText::CopyTo(), TiXmlComment::CopyTo(), CopyTo(), and TiXmlElement::CopyTo().

void TiXmlDocument::CopyTo (  TiXmlDocument *  target  )  const [private]


Definition at line 1177 of file tinyxml.cpp.

References TiXmlNode::Clone(), TiXmlNode::CopyTo(), error, errorDesc, TiXmlNode::LinkEndChild(), and TiXmlNode::NextSibling().

Referenced by Clone(), operator=(), and TiXmlDocument().

bool TiXmlDocument::Error (   )  const [inline]


If an error occurs, Error will be set to true.

Also,

  • The ErrorId() will contain the integer identifier of the error (not generally useful)
  • The ErrorDesc() method will return the name of the error. (very useful)
  • The ErrorRow() and ErrorCol() will return the location of the error (if known)

Definition at line 1288 of file tinyxml.h.

Referenced by LoadFile(), and main().

int TiXmlDocument::ErrorCol (   )  [inline]


The column where the error occured. See ErrorRow().

Definition at line 1306 of file tinyxml.h.

References TiXmlCursor::col, and errorLocation.

Referenced by main().

const char* TiXmlDocument::ErrorDesc (   )  const [inline]


Contains a textual (english) description of the error if one occurs.

Definition at line 1291 of file tinyxml.h.

References errorDesc.

Referenced by checkLoadFile(), and main().

int TiXmlDocument::ErrorId (   )  const [inline]


Generally, you probably want the error string ( ErrorDesc() ).

But if you prefer the ErrorId, this function will fetch it.

Definition at line 1296 of file tinyxml.h.

Referenced by main().

int TiXmlDocument::ErrorRow (   )  [inline]


Returns the location (if known) of the error.

The first column is column 1, and the first row is row 1. A value of 0 means the row and column wasn't applicable (memory errors, for example, have no row/column) or the parser lost the error. (An error in the error reporting, in that case.)

See also:
SetTabSize, Row, Column

Definition at line 1305 of file tinyxml.h.

References errorLocation, and TiXmlCursor::row.

Referenced by main().

TiXmlNode * TiXmlNode::FirstChild (  const char *  value  )  [inherited]


The first child of this node with the matching 'value'. Will be null if none found.

Definition at line 338 of file tinyxml.cpp.

References TiXmlNode::next, and TiXmlNode::Value().

const TiXmlNode * TiXmlNode::FirstChild (  const char *  value  )  const [inherited]


The first child of this node with the matching 'value'. Will be null if none found.

Definition at line 326 of file tinyxml.cpp.

References TiXmlNode::next, and TiXmlNode::Value().

TiXmlNode* TiXmlNode::FirstChild (   )  [inline, inherited]


Definition at line 486 of file tinyxml.h.

const TiXmlNode* TiXmlNode::FirstChild (   )  const [inline, inherited]


The first child of this node. Will be null if there are no children.

Definition at line 485 of file tinyxml.h.

Referenced by TiXmlHandle::Child(), TiXmlHandle::FirstChild(), TiXmlNode::FirstChildElement(), TiXmlElement::GetText(), TiXmlNode::IterateChildren(), main(), Print(), and StreamOut().

TiXmlElement * TiXmlNode::FirstChildElement (  const char *  value  )  [inherited]


Definition at line 521 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), and TiXmlNode::ToElement().

const TiXmlElement * TiXmlNode::FirstChildElement (  const char *  value  )  const [inherited]


Convenience function to get through elements.

Definition at line 507 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), and TiXmlNode::ToElement().

TiXmlElement * TiXmlNode::FirstChildElement (   )  [inherited]


Definition at line 493 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), and TiXmlNode::ToElement().

const TiXmlElement * TiXmlNode::FirstChildElement (   )  const [inherited]


Convenience function to get through elements.

Definition at line 479 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), and TiXmlNode::ToElement().

Referenced by TiXmlHandle::ChildElement(), TiXmlHandle::FirstChildElement(), main(), and RootElement().

const char* TiXmlBase::GetChar (  const char *  p,
char *  _value,
int *  length,
TiXmlEncoding  encoding
)  [inline, static, protected, inherited]


Definition at line 283 of file tinyxml.h.

Referenced by TiXmlBase::ReadText().

TiXmlDocument * TiXmlNode::GetDocument (   )  [inherited]


Definition at line 604 of file tinyxml.cpp.

References TiXmlNode::parent, and TiXmlNode::ToDocument().

const TiXmlDocument * TiXmlNode::GetDocument (   )  const [inherited]


Return a pointer to the Document this node lives in.

Returns null if not in a document.

Definition at line 592 of file tinyxml.cpp.

References TiXmlNode::parent, and TiXmlNode::ToDocument().

Referenced by TiXmlNode::Identify(), TiXmlNode::LinkEndChild(), TiXmlDeclaration::Parse(), TiXmlText::Parse(), TiXmlComment::Parse(), TiXmlUnknown::Parse(), TiXmlElement::Parse(), TiXmlElement::ReadValue(), and TiXmlElement::SetAttribute().

const char * TiXmlBase::GetEntity (  const char *  in,
char *  value,
int *  length,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 427 of file tinyxmlparser.cpp.

References TiXmlBase::Entity::chr, TiXmlBase::ConvertUTF32ToUTF8(), TiXmlBase::entity, TiXmlBase::Entity::strLength, TIXML_STRING, and value.

void* TiXmlBase::GetUserData (   )  [inline, inherited]


Definition at line 199 of file tinyxml.h.

TiXmlNode * TiXmlNode::Identify (  const char *  start,
TiXmlEncoding  encoding
)  [protected, inherited]


Definition at line 803 of file tinyxmlparser.cpp.

References TiXmlNode::GetDocument(), TiXmlBase::IsAlpha(), TiXmlNode::parent, TiXmlText::SetCDATA(), SetError(), TiXmlBase::SkipWhiteSpace(), TiXmlBase::StringEqual(), TIXML_ENCODING_UNKNOWN, and TiXmlNode::TiXmlElement.

Referenced by Parse(), and TiXmlElement::ReadValue().

TiXmlNode * TiXmlNode::InsertAfterChild (  TiXmlNode *  afterThis,
const TiXmlNode &  addThis
)  [inherited]


Add a new node related to this.

Adds a child after the specified child. Returns a pointer to the new object or NULL if an error occured.

Definition at line 250 of file tinyxml.cpp.

References TiXmlNode::Clone(), TiXmlNode::lastChild, TiXmlNode::next, TiXmlNode::parent, and TiXmlNode::prev.

Referenced by main().

TiXmlNode * TiXmlNode::InsertBeforeChild (  TiXmlNode *  beforeThis,
const TiXmlNode &  addThis
)  [inherited]


Add a new node related to this.

Adds a child before the specified child. Returns a pointer to the new object or NULL if an error occured.

Definition at line 224 of file tinyxml.cpp.

References TiXmlNode::Clone(), TiXmlNode::firstChild, TiXmlNode::next, TiXmlNode::parent, and TiXmlNode::prev.

Referenced by main().

TiXmlNode * TiXmlNode::InsertEndChild (  const TiXmlNode &  addThis  )  [inherited]


Add a new node related to this.

Adds a child past the LastChild. Returns a pointer to the new object or NULL if an error occured.

Definition at line 214 of file tinyxml.cpp.

References TiXmlNode::Clone(), and TiXmlNode::LinkEndChild().

Referenced by main().

int TiXmlBase::IsAlpha (  unsigned char  anyByte,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 128 of file tinyxmlparser.cpp.

Referenced by TiXmlNode::Identify(), and TiXmlBase::ReadName().

int TiXmlBase::IsAlphaNum (  unsigned char  anyByte,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 149 of file tinyxmlparser.cpp.

Referenced by TiXmlBase::ReadName().

bool TiXmlBase::IsWhiteSpace (  int  c  )  [inline, static, protected, inherited]


Definition at line 248 of file tinyxml.h.

bool TiXmlBase::IsWhiteSpace (  char  c  )  [inline, static, protected, inherited]


Definition at line 244 of file tinyxml.h.

Referenced by TiXmlText::Blank(), TiXmlDeclaration::Parse(), TiXmlAttribute::Parse(), TiXmlBase::ReadText(), and TiXmlBase::SkipWhiteSpace().

bool TiXmlBase::IsWhiteSpaceCondensed (   )  [inline, static, inherited]


Return the current white space setting.

Definition at line 175 of file tinyxml.h.

Referenced by TiXmlElement::ReadValue().

TiXmlNode * TiXmlNode::IterateChildren (  const char *  value,
TiXmlNode *  previous
)  [inherited]


Definition at line 411 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), and TiXmlNode::parent.

const TiXmlNode * TiXmlNode::IterateChildren (  const char *  value,
const TiXmlNode *  previous
)  const [inherited]


This flavor of IterateChildren searches for children with a particular 'value'.

Definition at line 398 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), and TiXmlNode::parent.

TiXmlNode * TiXmlNode::IterateChildren (  TiXmlNode *  previous  )  [inherited]


Definition at line 385 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), and TiXmlNode::parent.

const TiXmlNode * TiXmlNode::IterateChildren (  const TiXmlNode *  previous  )  const [inherited]


An alternate way to walk the children of a node.

One way to iterate over nodes is:

			for( child = parent->FirstChild(); child; child = child->NextSibling() )

IterateChildren does the same thing with the syntax:

			child = 0;
			while( child = parent->IterateChildren( child ) )

IterateChildren takes the previous child as input and finds the next one. If the previous child is null, it returns the first. IterateChildren will return null when done.

Definition at line 372 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), and TiXmlNode::parent.

Referenced by main().

TiXmlNode * TiXmlNode::LastChild (  const char *  value  )  [inherited]


The last child of this node matching 'value'. Will be null if there are no children.

Definition at line 361 of file tinyxml.cpp.

References TiXmlNode::prev, and TiXmlNode::Value().

const TiXmlNode * TiXmlNode::LastChild (  const char *  value  )  const [inherited]


Definition at line 350 of file tinyxml.cpp.

References TiXmlNode::prev, and TiXmlNode::Value().

TiXmlNode* TiXmlNode::LastChild (   )  [inline, inherited]


The last child of this node. Will be null if there are no children.

Definition at line 491 of file tinyxml.h.

const TiXmlNode* TiXmlNode::LastChild (   )  const [inline, inherited]


Definition at line 490 of file tinyxml.h.

Referenced by main().

TiXmlNode * TiXmlNode::LinkEndChild (  TiXmlNode *  addThis  )  [inherited]


Add a new node related to this.

Adds a child past the LastChild.

NOTE: the node to be added is passed by pointer, and will be henceforth owned (and deleted) by tinyXml. This method is efficient and avoids an extra copy, but should be used with care as it uses a different memory model than the other insert functions.

See also:
InsertEndChild

Definition at line 194 of file tinyxml.cpp.

References TiXmlNode::firstChild, TiXmlNode::GetDocument(), TiXmlNode::lastChild, TiXmlNode::next, TiXmlNode::parent, and TiXmlNode::prev.

Referenced by CopyTo(), TiXmlElement::CopyTo(), TiXmlNode::InsertEndChild(), Parse(), and TiXmlElement::ReadValue().

bool TiXmlDocument::LoadFile (  FILE *  ,
TiXmlEncoding  encoding = TIXML_DEFAULT_ENCODING
)


Load a file using the given FILE*.

Returns true if successful. Note that this method doesn't stream - the entire object pointed at by the FILE* will be interpreted as an XML file. TinyXML doesn't stream in XML from the current file location. Streaming may be added in the future.

Definition at line 1032 of file tinyxml.cpp.

References TiXmlCursor::Clear(), TiXmlNode::Clear(), Error(), Parse(), SetError(), TIXML_ENCODING_UNKNOWN, and TIXML_STRING.

bool TiXmlDocument::LoadFile (  const char *  filename,
TiXmlEncoding  encoding = TIXML_DEFAULT_ENCODING
)


Load a file using the given filename. Returns true if successful.

Definition at line 1004 of file tinyxml.cpp.

References LoadFile(), SetError(), and TIXML_ENCODING_UNKNOWN.

bool TiXmlDocument::LoadFile (  TiXmlEncoding  encoding = TIXML_DEFAULT_ENCODING  )


Load a file using the current document value.

Returns true if successful. Will delete any existing document data before loading.

Definition at line 981 of file tinyxml.cpp.

Referenced by LoadFile(), and main().

TiXmlNode * TiXmlNode::NextSibling (  const char *   )  [inherited]


Definition at line 435 of file tinyxml.cpp.

References TiXmlNode::next, and TiXmlNode::Value().

const TiXmlNode * TiXmlNode::NextSibling (  const char *   )  const [inherited]


Navigate to a sibling node with the given 'value'.

Definition at line 424 of file tinyxml.cpp.

References TiXmlNode::next, and TiXmlNode::Value().

TiXmlNode* TiXmlNode::NextSibling (   )  [inline, inherited]


Definition at line 582 of file tinyxml.h.

const TiXmlNode* TiXmlNode::NextSibling (   )  const [inline, inherited]


Navigate to a sibling node.

Definition at line 581 of file tinyxml.h.

Referenced by TiXmlHandle::Child(), CopyTo(), TiXmlElement::CopyTo(), TiXmlNode::FirstChildElement(), TiXmlNode::IterateChildren(), main(), TiXmlNode::NextSiblingElement(), Print(), TiXmlElement::Print(), StreamOut(), and TiXmlElement::StreamOut().

TiXmlElement * TiXmlNode::NextSiblingElement (  const char *   )  [inherited]


Definition at line 577 of file tinyxml.cpp.

References TiXmlNode::NextSibling(), and TiXmlNode::ToElement().

const TiXmlElement * TiXmlNode::NextSiblingElement (  const char *   )  const [inherited]


Convenience function to get through elements.

Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

Definition at line 563 of file tinyxml.cpp.

References TiXmlNode::NextSibling(), and TiXmlNode::ToElement().

TiXmlElement * TiXmlNode::NextSiblingElement (   )  [inherited]


Definition at line 549 of file tinyxml.cpp.

References TiXmlNode::NextSibling(), and TiXmlNode::ToElement().

const TiXmlElement * TiXmlNode::NextSiblingElement (   )  const [inherited]


Convenience function to get through elements.

Calls NextSibling and ToElement. Will skip all non-Element nodes. Returns 0 if there is not another element.

Definition at line 535 of file tinyxml.cpp.

References TiXmlNode::NextSibling(), and TiXmlNode::ToElement().

Referenced by TiXmlHandle::ChildElement(), and main().

bool TiXmlNode::NoChildren (   )  const [inline, inherited]


Returns true if this node has no children.

Definition at line 633 of file tinyxml.h.

void TiXmlDocument::operator= (  const TiXmlDocument &  copy  )


Definition at line 974 of file tinyxml.cpp.

References TiXmlNode::Clear(), and CopyTo().

const TiXmlNode* TiXmlNode::Parent (   )  const [inline, inherited]


Definition at line 483 of file tinyxml.h.

TiXmlNode* TiXmlNode::Parent (   )  [inline, inherited]


One step up the DOM.

Definition at line 482 of file tinyxml.h.

const char * TiXmlDocument::Parse (  const char *  p,
TiXmlParsingData *  data = 0,
TiXmlEncoding  encoding = TIXML_DEFAULT_ENCODING
)  [virtual]


Parse the given null terminated block of xml data.

Passing in an encoding to this method (either TIXML_ENCODING_LEGACY or TIXML_ENCODING_UTF8 will force TinyXml to use that encoding, regardless of what TinyXml might otherwise try to detect.

Implements TiXmlBase.

Definition at line 689 of file tinyxmlparser.cpp.

References TiXmlCursor::Clear(), ClearError(), TiXmlCursor::col, TiXmlDeclaration::Encoding(), TiXmlNode::Identify(), TiXmlNode::LinkEndChild(), TiXmlBase::Parse(), TiXmlCursor::row, SetError(), TiXmlBase::SkipWhiteSpace(), TiXmlBase::StringEqual(), TabSize(), TIXML_ENCODING_UNKNOWN, TIXML_UTF_LEAD_0, TIXML_UTF_LEAD_1, TiXmlNode::ToDeclaration(), and useMicrosoftBOM.

Referenced by LoadFile(), and main().

TiXmlNode * TiXmlNode::PreviousSibling (  const char *   )  [inherited]


Definition at line 457 of file tinyxml.cpp.

References TiXmlNode::prev, and TiXmlNode::Value().

const TiXmlNode * TiXmlNode::PreviousSibling (  const char *   )  const [inherited]


Navigate to a sibling node.

Definition at line 446 of file tinyxml.cpp.

References TiXmlNode::prev, and TiXmlNode::Value().

TiXmlNode* TiXmlNode::PreviousSibling (   )  [inline, inherited]


Definition at line 567 of file tinyxml.h.

const TiXmlNode* TiXmlNode::PreviousSibling (   )  const [inline, inherited]


Navigate to a sibling node.

Definition at line 566 of file tinyxml.h.

Referenced by main().

void TiXmlDocument::Print (  FILE *  cfile,
int  depth = 0
)  const [virtual]


Print this Document to a FILE stream.

Implements TiXmlBase.

Definition at line 1203 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), and TiXmlBase::Print().

void TiXmlDocument::Print (   )  const [inline]


Dump the document to standard out.

Definition at line 1347 of file tinyxml.h.

Referenced by main(), and SaveFile().

void TiXmlBase::PutString (  const TIXML_STRING &  str,
TIXML_STRING *  out
)  [static, protected, inherited]


Definition at line 43 of file tinyxml.cpp.

References TiXmlBase::entity.

void TiXmlBase::PutString (  const TIXML_STRING &  str,
TIXML_OSTREAM *  out
)  [static, protected, inherited]


Definition at line 36 of file tinyxml.cpp.

References TIXML_STRING.

Referenced by TiXmlText::Print(), TiXmlAttribute::Print(), TiXmlDeclaration::StreamOut(), TiXmlText::StreamOut(), and TiXmlAttribute::StreamOut().

const char * TiXmlBase::ReadName (  const char *  p,
TIXML_STRING *  name,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 397 of file tinyxmlparser.cpp.

References TiXmlBase::IsAlpha(), and TiXmlBase::IsAlphaNum().

Referenced by TiXmlAttribute::Parse(), and TiXmlElement::Parse().

const char * TiXmlBase::ReadText (  const char *  in,
TIXML_STRING *  text,
bool  ignoreWhiteSpace,
const char *  endTag,
bool  ignoreCase,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 561 of file tinyxmlparser.cpp.

References TiXmlBase::GetChar(), TiXmlBase::IsWhiteSpace(), TiXmlBase::SkipWhiteSpace(), and TiXmlBase::StringEqual().

Referenced by TiXmlText::Parse(), TiXmlAttribute::Parse(), and TiXmlComment::Parse().

bool TiXmlNode::RemoveChild (  TiXmlNode *  removeThis  )  [inherited]


Delete a child of this node.

Definition at line 304 of file tinyxml.cpp.

References TiXmlNode::firstChild, TiXmlNode::lastChild, TiXmlNode::next, TiXmlNode::parent, and TiXmlNode::prev.

Referenced by main().

TiXmlNode * TiXmlNode::ReplaceChild (  TiXmlNode *  replaceThis,
const TiXmlNode &  withThis
)  [inherited]


Replace a child of this node.

Returns a pointer to the new object or NULL if an error occured.

Definition at line 276 of file tinyxml.cpp.

References TiXmlNode::Clone(), TiXmlNode::firstChild, TiXmlNode::lastChild, TiXmlNode::next, TiXmlNode::parent, and TiXmlNode::prev.

TiXmlElement* TiXmlDocument::RootElement (   )  [inline]


Definition at line 1281 of file tinyxml.h.

References TiXmlNode::FirstChildElement().

const TiXmlElement* TiXmlDocument::RootElement (   )  const [inline]


Get the root element -- the only top level element -- of the document.

In well formed XML, there should only be one. TinyXml is tolerant of multiple elements at the document level.

Definition at line 1280 of file tinyxml.h.

References TiXmlNode::FirstChildElement().

Referenced by main().

int TiXmlBase::Row (   )  const [inline, inherited]


Return the position, in the original source file, of this node or attribute.

The row and column are 1-based. (That is the first row and first column is 1,1). If the returns values are 0 or less, then the parser does not have a row and column value.

Generally, the row and column value will be set when the TiXmlDocument::Load(), TiXmlDocument::LoadFile(), or any TiXmlNode::Parse() is called. It will NOT be set when the DOM was created from operator>>.

The values reflect the initial load. Once the DOM is modified programmatically (by adding or changing nodes and attributes) the new values will NOT update to reflect changes in the document.

There is a minor performance cost to computing the row and column. Computation can be disabled if TiXmlDocument::SetTabSize() is called with 0 as the value.

See also:
TiXmlDocument::SetTabSize()

Definition at line 195 of file tinyxml.h.

Referenced by main().

bool TiXmlDocument::SaveFile (  FILE *   )  const


Save a file using the given FILE*. Returns true if successful.

Definition at line 1160 of file tinyxml.cpp.

References Print(), TIXML_UTF_LEAD_0, TIXML_UTF_LEAD_1, and TIXML_UTF_LEAD_2.

bool TiXmlDocument::SaveFile (  const char *  filename  )  const


Save a file using the given filename. Returns true if successful.

Definition at line 1146 of file tinyxml.cpp.

References SaveFile().

bool TiXmlDocument::SaveFile (   )  const


Save a file using the current document value. Returns true if successful.

Definition at line 993 of file tinyxml.cpp.

Referenced by main(), and SaveFile().

void TiXmlBase::SetCondenseWhiteSpace (  bool  condense  )  [inline, static, inherited]


The world does not agree on whether white space should be kept or not.

In order to make everyone happy, these global, static functions are provided to set whether or not TinyXml will condense all white space into a single space or not. The default is to condense. Note changing this values is not thread safe.

Definition at line 172 of file tinyxml.h.

Referenced by main().

void TiXmlDocument::SetError (  int  err,
const char *  errorLocation,
TiXmlParsingData *  prevData,
TiXmlEncoding  encoding
)


Definition at line 783 of file tinyxmlparser.cpp.

References TiXmlCursor::Clear(), error, errorDesc, errorId, and errorLocation.

Referenced by TiXmlNode::Identify(), LoadFile(), TiXmlDeclaration::Parse(), TiXmlText::Parse(), TiXmlAttribute::Parse(), TiXmlComment::Parse(), TiXmlUnknown::Parse(), TiXmlElement::Parse(), Parse(), TiXmlElement::ReadValue(), and TiXmlElement::SetAttribute().

void TiXmlDocument::SetTabSize (  int  _tabsize  )  [inline]


SetTabSize() allows the error reporting functions (ErrorRow() and ErrorCol()) to report the correct values for row and column.

It does not change the output or input in any way.

By calling this method, with a tab size greater than 0, the row and column of each node and attribute is stored when the file is loaded. Very useful for tracking the DOM back in to the source file.

The tab size is required for calculating the location of nodes. If not set, the default of 4 is used. The tabsize is set per document. Setting the tabsize to 0 disables row/column tracking.

Note that row and column tracking is not supported when using operator>>.

The tab size needs to be enabled before the parse or load. Correct usage:

		TiXmlDocument doc;
		doc.SetTabSize( 8 );
		doc.Load( "myfile.xml" );

See also:
Row, Column

Definition at line 1332 of file tinyxml.h.

References tabsize.

Referenced by main().

void TiXmlBase::SetUserData (  void *  user  )  [inline, inherited]


Definition at line 198 of file tinyxml.h.

void TiXmlNode::SetValue (  const char *  _value  )  [inline, inherited]


Changes the value of the node.

Defined as:

		Document:	filename of the xml file
		Element:	name of the element
		Comment:	the comment text
		Unknown:	the tag contents
		Text:		the text string

Definition at line 471 of file tinyxml.h.

References TiXmlNode::value.

Referenced by TiXmlNode::CopyTo(), and TiXmlText::TiXmlText().

const char * TiXmlBase::SkipWhiteSpace (  const char *  ,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 313 of file tinyxmlparser.cpp.

References TiXmlBase::IsWhiteSpace(), TIXML_UTF_LEAD_0, and TIXML_UTF_LEAD_1.

Referenced by TiXmlNode::Identify(), TiXmlDeclaration::Parse(), TiXmlAttribute::Parse(), TiXmlComment::Parse(), TiXmlUnknown::Parse(), TiXmlElement::Parse(), Parse(), TiXmlBase::ReadText(), and TiXmlElement::ReadValue().

void TiXmlDocument::StreamOut (  TIXML_OSTREAM *  out  )  const [protected, virtual]


Implements TiXmlBase.

Definition at line 1213 of file tinyxml.cpp.

References TiXmlNode::FirstChild(), TiXmlNode::NextSibling(), TiXmlBase::StreamOut(), and TiXmlNode::ToElement().

bool TiXmlBase::StringEqual (  const char *  p,
const char *  endTag,
bool  ignoreCase,
TiXmlEncoding  encoding
)  [static, protected, inherited]


Definition at line 521 of file tinyxmlparser.cpp.

References TiXmlBase::ToLower().

Referenced by TiXmlNode::Identify(), TiXmlDeclaration::Parse(), TiXmlText::Parse(), TiXmlComment::Parse(), TiXmlElement::Parse(), Parse(), TiXmlBase::ReadText(), and TiXmlElement::ReadValue().

int TiXmlDocument::TabSize (   )  const [inline]


Definition at line 1334 of file tinyxml.h.

Referenced by TiXmlAttribute::Parse(), and Parse().

virtual TiXmlComment* TiXmlNode::ToComment (   )  [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlComment.

Definition at line 644 of file tinyxml.h.

virtual const TiXmlComment* TiXmlNode::ToComment (   )  const [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlComment.

Definition at line 637 of file tinyxml.h.

Referenced by main().

virtual TiXmlDeclaration* TiXmlNode::ToDeclaration (   )  [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDeclaration.

Definition at line 647 of file tinyxml.h.

virtual const TiXmlDeclaration* TiXmlNode::ToDeclaration (   )  const [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlDeclaration.

Definition at line 640 of file tinyxml.h.

Referenced by main(), and Parse().

virtual TiXmlDocument* TiXmlDocument::ToDocument (   )  [inline, virtual]


Cast to a more defined type. Will return null not of the requested type.

Reimplemented from TiXmlNode.

Definition at line 1355 of file tinyxml.h.

virtual const TiXmlDocument* TiXmlDocument::ToDocument (   )  const [inline, virtual]


Cast to a more defined type. Will return null not of the requested type.

Reimplemented from TiXmlNode.

Definition at line 1354 of file tinyxml.h.

virtual TiXmlElement* TiXmlNode::ToElement (   )  [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlElement.

Definition at line 643 of file tinyxml.h.

virtual const TiXmlElement* TiXmlNode::ToElement (   )  const [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlElement.

Definition at line 636 of file tinyxml.h.

Referenced by TiXmlNode::FirstChildElement(), main(), TiXmlNode::NextSiblingElement(), and StreamOut().

int TiXmlBase::ToLower (  int  v,
TiXmlEncoding  encoding
)  [inline, static, protected, inherited]


Definition at line 344 of file tinyxml.h.

Referenced by TiXmlBase::StringEqual().

virtual TiXmlText* TiXmlNode::ToText (   )  [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlText.

Definition at line 646 of file tinyxml.h.

virtual const TiXmlText* TiXmlNode::ToText (   )  const [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlText.

Definition at line 639 of file tinyxml.h.

Referenced by TiXmlElement::GetText(), main(), and TiXmlElement::Print().

virtual TiXmlUnknown* TiXmlNode::ToUnknown (   )  [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlUnknown.

Definition at line 645 of file tinyxml.h.

virtual const TiXmlUnknown* TiXmlNode::ToUnknown (   )  const [inline, virtual, inherited]


Cast to a more defined type. Will return null if not of the requested type.

Reimplemented in TiXmlUnknown.

Definition at line 638 of file tinyxml.h.

int TiXmlNode::Type (   )  const [inline, inherited]


Query the type (as an enumerated value, above) of this node.

The possible types are: DOCUMENT, ELEMENT, COMMENT, UNKNOWN, TEXT, and DECLARATION.

Definition at line 624 of file tinyxml.h.

const char* TiXmlNode::Value (   )  const [inline, inherited]


The meaning of 'value' changes for the specific type of TiXmlNode.

		Document:	filename of the xml file
		Element:	name of the element
		Comment:	the comment text
		Unknown:	the tag contents
		Text:		the text string

The subclasses will wrap this function.

Definition at line 452 of file tinyxml.h.

References TiXmlNode::value.

Referenced by TiXmlElement::Clone(), TiXmlNode::FirstChild(), TiXmlElement::GetText(), TiXmlNode::LastChild(), main(), TiXmlNode::NextSibling(), and TiXmlNode::PreviousSibling().

Friends And Related Function Documentation

TIXML_OSTREAM& operator<< (  TIXML_OSTREAM &  out,
const TiXmlNode &  base
)  [friend, inherited]


Definition at line 1660 of file tinyxml.cpp.

Member Data Documentation

bool TiXmlDocument::error [private]


Definition at line 1368 of file tinyxml.h.

Referenced by ClearError(), CopyTo(), and SetError().

TIXML_STRING TiXmlDocument::errorDesc [private]


Definition at line 1370 of file tinyxml.h.

Referenced by ClearError(), CopyTo(), ErrorDesc(), and SetError().

int TiXmlDocument::errorId [private]


Definition at line 1369 of file tinyxml.h.

Referenced by ClearError(), and SetError().

TiXmlCursor TiXmlDocument::errorLocation [private]


Definition at line 1372 of file tinyxml.h.

Referenced by ClearError(), ErrorCol(), ErrorRow(), and SetError().

const char * TiXmlBase::errorString [static, protected, inherited]


Initial value:

{
        "No error",
        "Error",
        "Failed to open file",
        "Memory allocation failed.",
        "Error parsing Element.",
        "Failed to read Element name",
        "Error reading Element value.",
        "Error reading Attributes.",
        "Error: empty tag.",
        "Error reading end tag.",
        "Error parsing Unknown.",
        "Error parsing Comment.",
        "Error parsing Declaration.",
        "Error document empty.",
        "Error null (0) or unexpected EOF found in input stream.",
        "Error parsing CDATA.",
}

Definition at line 34 of file tinyxmlerror.cpp.

TiXmlNode* TiXmlNode::firstChild [protected, inherited]


Definition at line 672 of file tinyxml.h.

Referenced by TiXmlNode::Clear(), TiXmlNode::InsertBeforeChild(), TiXmlNode::LinkEndChild(), TiXmlNode::RemoveChild(), TiXmlNode::ReplaceChild(), and TiXmlNode::TiXmlNode().

TiXmlNode* TiXmlNode::lastChild [protected, inherited]


Definition at line 673 of file tinyxml.h.

Referenced by TiXmlNode::Clear(), TiXmlNode::InsertAfterChild(), TiXmlNode::LinkEndChild(), TiXmlNode::RemoveChild(), TiXmlNode::ReplaceChild(), and TiXmlNode::TiXmlNode().

TiXmlCursor TiXmlBase::location [protected, inherited]


Definition at line 335 of file tinyxml.h.

TiXmlNode* TiXmlNode::next [protected, inherited]


Definition at line 678 of file tinyxml.h.

Referenced by TiXmlNode::Clear(), TiXmlAttributeSet::First(), TiXmlNode::FirstChild(), TiXmlNode::InsertAfterChild(), TiXmlNode::InsertBeforeChild(), TiXmlNode::LinkEndChild(), TiXmlNode::NextSibling(), TiXmlNode::RemoveChild(), TiXmlNode::ReplaceChild(), TiXmlNode::TiXmlNode(), and TiXmlNode::~TiXmlNode().

TiXmlNode* TiXmlNode::parent [protected, inherited]


Definition at line 669 of file tinyxml.h.

Referenced by TiXmlNode::GetDocument(), TiXmlNode::Identify(), TiXmlNode::InsertAfterChild(), TiXmlNode::InsertBeforeChild(), TiXmlNode::IterateChildren(), TiXmlNode::LinkEndChild(), TiXmlNode::RemoveChild(), TiXmlNode::ReplaceChild(), and TiXmlNode::TiXmlNode().

TiXmlNode* TiXmlNode::prev [protected, inherited]


Definition at line 677 of file tinyxml.h.

Referenced by TiXmlNode::InsertAfterChild(), TiXmlNode::InsertBeforeChild(), TiXmlAttributeSet::Last(), TiXmlNode::LastChild(), TiXmlNode::LinkEndChild(), TiXmlNode::PreviousSibling(), TiXmlNode::RemoveChild(), TiXmlNode::ReplaceChild(), and TiXmlNode::TiXmlNode().

int TiXmlDocument::tabsize [private]


Definition at line 1371 of file tinyxml.h.

Referenced by SetTabSize(), and TiXmlDocument().

NodeType TiXmlNode::type [protected, inherited]


Definition at line 670 of file tinyxml.h.

Referenced by TiXmlNode::TiXmlNode().

bool TiXmlDocument::useMicrosoftBOM [private]


Definition at line 1373 of file tinyxml.h.

Referenced by Parse(), and TiXmlDocument().

void* TiXmlBase::userData [protected, inherited]


Field containing a generic user pointer.

Definition at line 338 of file tinyxml.h.

Referenced by TiXmlNode::CopyTo().

const int TiXmlBase::utf8ByteTable [static, inherited]


Initial value:


{

                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,
                1,      1,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,
                2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,      2,
                3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,      3,
                4,      4,      4,      4,      4,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1,      1
}

Definition at line 65 of file tinyxmlparser.cpp.

TIXML_STRING TiXmlNode::value [protected, inherited]


Definition at line 675 of file tinyxml.h.

Referenced by TiXmlNode::CopyTo(), TiXmlNode::SetValue(), and TiXmlNode::Value().

The documentation for this class was generated from the following files:
Generated on Wed Sep 5 12:54:44 2007 for DSACSS Operational Code by  doxygen 1.3.9.1
