daqcard.h File Reference

---

Detailed Description

Header file for the low-level c-code containing the <Hardware/dscud.h>-related functions used with the DAQ card.

Author:

Author

jayhawk_hokie

Version:

Revision

1.5

Date:

Date

2007/08/02 23:18:28

Definition in file daqcard.h.

#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <math.h>
#include <sys/time.h>
#include <sys/timeb.h>
#include <time.h>
#include <Hardware/dscud.h>

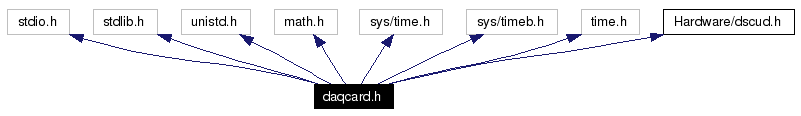

Include dependency graph for daqcard.h:

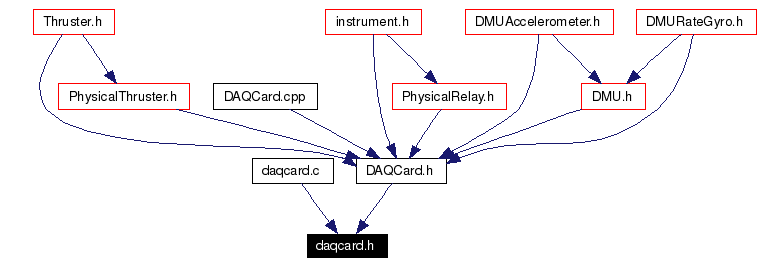

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	card_t
Defines
#define	ERROR_PREFIX   "DMM32 Driver ERROR:"
Functions
int	InitDAQCard (card_t *mycard)
double	ADscan (card_t *mycard, int _channel)
void	DAConvert (card_t *mycard, int _channel, int _code)
void	ShutDownDAQCard (card_t *mycard)
void	DIOOutputByte (card_t *mycard, int port, BYTE output_b)

---

Define Documentation

#define ERROR_PREFIX   "DMM32 Driver ERROR:"

Definition at line 26 of file daqcard.h. Referenced by ADscan(), DAConvert(), DIOOutputByte(), and InitDAQCard().

---

Function Documentation

double ADscan (  card_t *  mycard, int  _channel )

Definition at line 56 of file daqcard.c. References card_t::dscadscan, dscADScan(), card_t::dscadsettings, card_t::dscb, dscGetErrorString(), ERROR_PREFIX, DSCADSETTINGS::gain, card_t::result, DSCADSCAN::sample_values, card_t::samples, and card_t::voltage. Referenced by DMU::GetAnalogReading().

void DAConvert (  card_t *  mycard, int  _channel, int  _code )

Definition at line 32 of file daqcard.c. References card_t::chan37, card_t::chan38, card_t::dscb, dscDAConvert(), dscGetLastError(), ERROR_PREFIX, card_t::errorParams, ERRPARAMS::errstring, and card_t::result.

void DIOOutputByte (  card_t *  mycard, int  port, BYTE  output_b )

Definition at line 144 of file daqcard.c. References BYTE, dscDIOOutputByte(), dscGetLastError(), ERROR_PREFIX, card_t::errorParams, and card_t::result. Referenced by PhysicalRelay::PowerOff(), PhysicalRelay::PowerOn(), PhysicalThruster::StartFire(), and PhysicalThruster::StopFire().

int InitDAQCard (  card_t *  mycard  )

Definition at line 73 of file daqcard.c. References DSCCB::base_address, DSCCB::boardtype, BYTE, card_t::chan37, card_t::chan38, DSCCB::clock_freq, DSCADSETTINGS::current_channel, DSCCB::dma_level, DSC_DMM32, DSC_VERSION, card_t::dscadscan, dscADSetSettings(), card_t::dscadsettings, card_t::dscb, card_t::dsccb, dscDIOSetConfig(), dscGetLastError(), dscInit(), dscInitBoard(), ERROR_PREFIX, card_t::errorParams, DSCADSCAN::gain, DSCADSETTINGS::gain, DSCADSCAN::high_channel, DSCCB::int_level, DSCADSETTINGS::load_cal, DSCADSCAN::low_channel, DSCADSETTINGS::polarity, DSCADSETTINGS::range, card_t::result, card_t::samples, DSCADSETTINGS::scan_interval, and SWORD. Referenced by DAQCard::Initialize().

void ShutDownDAQCard (  card_t *  mycard  )

Definition at line 154 of file daqcard.c. References dscFree(), and card_t::samples. Referenced by DAQCard::~DAQCard().

---
