dscud.h File Reference

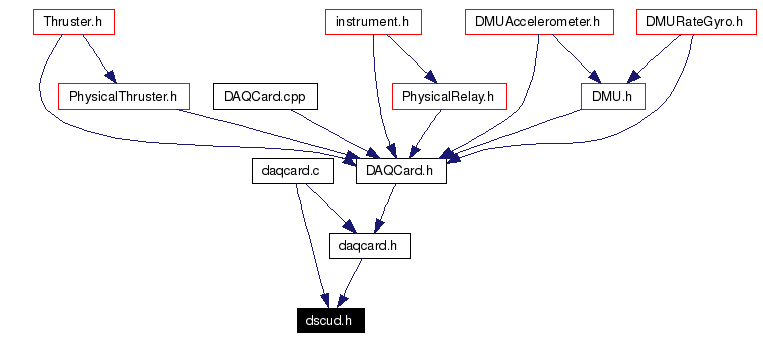

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	DSCCB
struct	DSCCBP
struct	DSCADSETTINGS
struct	DSCADSCAN
struct	REGPARAMS
struct	ERRPARAMS
struct	DSCAIOINT
struct	DSCAUTOCAL
struct	SETCALPARAMS
struct	DSCDACS
struct	DSCDASETTINGS
struct	DAPARAMS
struct	DSCDACALPARAMS
struct	DSCS
struct	DSCUSERINTFUNCTION
struct	DSCUSERINT
struct	DSCCS
struct	DSCCR
struct	DSCDIOINT
struct	DSCEMMDIO
struct	DSCOPTOSTATE
struct	DSCEMMDIORESETINT
struct	DSCWATCHDOG
struct	DSCPWM
struct	DSCAACSTATUS
struct	DSCWGCONFIG
struct	DSCQMM_MMR
struct	DSCQMM_CMR
struct	DSCQMM_MCC
struct	DSCQMM_SCF
struct	DSCQMM_PWM
Defines
#define	BYTE   unsigned char
#define	SBYTE   signed char
#define	WORD   unsigned short
#define	SWORD   signed short
#define	DWORD   unsigned long
#define	SDWORD   signed long
#define	LONG   signed long
#define	FLOAT   float
#define	DFLOAT   double
#define	BOOL   int
#define	TRUE   ((BOOL)1)
#define	FALSE   ((BOOL)0)
#define	DSCSAMPLE   SWORD
#define	DSCDACODE   DWORD
#define	DSCUDAPICALL
#define	DSCB   SWORD
#define	DSC_VERSION   0x0591
#define	DSC_DMM16   0
#define	DSC_RMM   1
#define	DSC_TMM   2
#define	DSC_OPMM   3
#define	DSC_DMM   4
#define	DSC_SMM   5
#define	DSC_GMM   6
#define	DSC_QMM   7
#define	DSC_ZMM   8
#define	DSC_PMM   9
#define	DSC_OMM   10
#define	DSC_RMM416   11
#define	DSC_DMM32   12
#define	DSC_DMM32AT   12
#define	DSC_EMMDIO   13
#define	DSC_RMM1612   14
#define	DSC_DMMAT   15
#define	DSC_DMM16AT   16
#define	DSC_IR104   17
#define	DSC_EMM8   18
#define	DSC_PROM   19
#define	DSC_HERCEBX   20
#define	DSC_CPT   21
#define	DSC_DMM48   22
#define	DSC_DMM48AT   22
#define	DSC_OMMDIO   23
#define	DSC_DIO82C55   24
#define	DSC_MRC   24
#define	DSC_EMMOPTO   24
#define	DSC_ATHENA   25
#define	DSC_METIS   26
#define	DSC_DMM32X   27
#define	DSC_DMM32XAT   27
#define	DSC_ELEKTRA   28
#define	DSC_TEST   126
#define	DSC_RAW   127
#define	DSC_DRVR   255
#define	RANGE_5   0
#define	RANGE_10   1
#define	BIPOLAR   0
#define	UNIPOLAR   1
#define	GAIN_1   0
#define	GAIN_2   1
#define	GAIN_4   2
#define	GAIN_8   3
#define	GAIN_10   1
#define	GAIN_100   2
#define	GAIN_1000   3
#define	SCAN_INTERVAL_4   5
#define	SCAN_INTERVAL_5   3
#define	SCAN_INTERVAL_9   4
#define	SCAN_INTERVAL_10   2
#define	SCAN_INTERVAL_15   1
#define	SCAN_INTERVAL_20   0
#define	SINGLE_ENDED   0
#define	DIFFERENTIAL   1
#define	MODE_0_INT11_INT12   0
#define	MODE_0_INT21_INT22   1
#define	MODE_1_82C55_1_C0   2
#define	MODE_1_82C55_1_C3   3
#define	MODE_1_82C55_2_C0   4
#define	MODE_1_82C55_2_C3   5
#define	SOURCE_82C55_1_C0   0
#define	SOURCE_COUNTER_0   1
#define	SOURCE_82C55_2_C0   2
#define	SOURCE_COUNTER_1   3
#define	SOURCE_EXTERNAL   4
#define	SOURCE_COUNTER_2   5
#define	OMM_SOURCE_PIN   0
#define	OMM_SOURCE_CLOCK   1
#define	OMM_SOURCE_OUT   2
#define	PROM_WD_TRIGGER_SCI   0x01
#define	PROM_WD_TRIGGER_NMI   0x02
#define	PROM_WD_TRIGGER_SMI   0x04
#define	PROM_WD_TRIGGER_RESET   0x08
#define	PROM_WD_WDI_ASSERT_FALLING_EDGE   0x10
#define	PROM_WD_WDO_TRIGGERED_EARLY   0x20
#define	PROM_WD_ENABLE_WDI_ASSERTION   0x40
#define	HERC_WD_TRIGGER_NMI   0x10
#define	HERC_WD_TRIGGER_RESET   0x08
#define	HERC_WD_WDI_ASSERT_FALLING_EDGE   0x02
#define	HERC_WD_WDO_TRIGGERED_EARLY   0x04
#define	HERC_WD_ENABLE_WDI_ASSERTION   0x01
#define	ATHENA_WD_WDI_ASSERT_RISING_EDGE   0x10
#define	ATHENA_WD_TRIGGER_SMI   0x20
#define	ATHENA_WD_ENABLE_WDO   0x40
#define	ATHENA_WD_ENABLE_WDI   0x80
#define	ELEKTRA_WD_WDI_ASSERT_RISING_EDGE   0x10
#define	ELEKTRA_WD_TRIGGER_SMI   0x20
#define	ELEKTRA_WD_ENABLE_WDO   0x40
#define	ELEKTRA_WD_ENABLE_WDI   0x80
#define	COUNTER_0   0x00
#define	COUNTER_1   0x01
#define	COUNTER_2   0x02
#define	COUNTER_0_1   0x04
#define	COUNTER_1_2   0x08
#define	COUNTER_0_1_2   0x10
#define	OP_TYPE_NONE   0
#define	OP_TYPE_INT   1
#define	OP_TYPE_DMA   2
#define	INT_TYPE_AD   0x01
#define	INT_TYPE_DA   0x02
#define	INT_TYPE_DIOIN   0x04
#define	INT_TYPE_USER   0x08
#define	INT_TYPE_COUNTER   0x10
#define	INT_TYPE_DIOREAD   0x20
#define	INT_TYPE_OPTO   0x40
#define	INT_TYPE_DIOWRITE   0x80
#define	INT_TYPE_INDEX_AD   0
#define	INT_TYPE_INDEX_DA   1
#define	INT_TYPE_INDEX_DIOIN   2
#define	INT_TYPE_INDEX_USER   3
#define	INT_TYPE_INDEX_COUNTER   4
#define	INT_TYPE_INDEX_DIOREAD   5
#define	INT_TYPE_INDEX_OPTO   6
#define	INT_TYPE_INDEX_DIOWRITE   7
#define	USER_INT_CANCEL   0
#define	USER_INT_AFTER   1
#define	USER_INT_INSTEAD   2
#define	USER_INT_SOURCE_EXTERNAL   1
#define	USER_INT_SOURCE_INTERNAL   0
#define	WG_CMD_START   0x01
#define	WG_CMD_PAUSE   0x02
#define	WG_CMD_RESET   0x04
#define	WG_CMD_INC   0x08
#define	WG_SRC_MANUAL   0
#define	WG_SRC_CTR0   1
#define	WG_SRC_CTR12   2
#define	WG_SRC_EXT   3
#define	WG_CH_PER_FRAME_1   0
#define	WG_CH_PER_FRAME_2   1
#define	WG_CH_PER_FRAME_4   2
#define	AAC_CMD_HOLD   0x10
#define	AAC_CMD_REL   0x08
#define	AAC_CMD_RESET   0x04
#define	AAC_CMD_ABORT   0x02
#define	AAC_CMD_TRIG   0x01
#define	PCI_MAX_RESOURCES   5
#define	PCI_DSC_VENDORID   0x1234
#define	DE_NONE   0
#define	DE_HW_FAILURE   1
#define	DE_SW_FAILURE   2
#define	DE_HW_NOT_SUPPORTED   3
#define	DE_SW_NOT_SUPPORTED   4
#define	DE_INVALID_PARM   5
#define	DE_ALTERNATE_IN_PROGRESS   6
#define	DE_NONE_IN_PROGRESS   7
#define	DE_BUFFER_ROLLOVER   8
#define	DE_INVALID_ERROR_CODE   9
#define	DE_ALREADY_PAUSED   10
#define	DE_OVERFLOW   11
#define	DE_INVALID_FUNC   12
#define	DE_DSCUDH_INVALID   13
#define	DE_INVALID_BOARD   14
#define	DE_BOARD_LIMIT_REACHED   15
#define	DE_BOARD_BUSY   16
#define	DE_INVALID_WINDRVR_HANDLE   17
#define	DE_INVALID_WINDRVR_VERSION   18
#define	DE_BAD_WINDRVR_BOARD_INIT   19
#define	DE_OPERATION_TIMED_OUT   20
#define	DE_INVALID_WINDRVR_KP   21
#define	DE_THREAD_FAILURE   22
#define	STR_DE_NONE   "NO ERRORS REPORTED"
#define	STR_DE_HW_FAILURE   "HARDWARE FAILURE"
#define	STR_DE_SW_FAILURE   "SOFTWARE FAILURE"
#define	STR_DE_HW_NOT_SUPPORTED   "OPERATION NOT SUPPORTED BY HARDWARE"
#define	STR_DE_SW_NOT_SUPPORTED   "OPERATION NOT SUPPORTED BY SOFTWARE"
#define	STR_DE_INVALID_PARM   "INVALID PARAMETER"
#define	STR_DE_ALTERNATE_IN_PROGRESS   "ALTERNATE INTERRUPT OPERATION IN PROGRESS"
#define	STR_DE_NONE_IN_PROGRESS   "NO INTERRUPT OPERATION IN PROGRESS"
#define	STR_DE_BUFFER_ROLLOVER   "POINTER + SIZE OF DATA OVERRUN BUFFER"
#define	STR_DE_INVALID_ERROR_CODE   "INVALID ERROR CODE, PLEASE IGNORE"
#define	STR_DE_ALREADY_PAUSED   "OPERATION ALREADY PAUSED"
#define	STR_DE_OVERFLOW   "AM9513A COUNTER FUNCTION OVERFLOWED OR BUFFER OVERFLOW"
#define	STR_DE_INVALID_FUNC   "INVALID FUNCTION FOR SELECTED BOARD"
#define	STR_DE_DSCUDH_INVALID   "LIBRARY HEADER VERSION MISMATCH"
#define	STR_DE_INVALID_BOARD   "INVALID BOARD TYPE SPECIFIED"
#define	STR_DE_BOARD_LIMIT_REACHED   "MAXIMUM NUMBER OF BOARDS REACHED"
#define	STR_DE_BOARD_BUSY   "ATTEMPT TO ACQUIRE BOARD TIMED OUT"
#define	STR_DE_INVALID_WINDRVR_HANDLE   "INVALID WINDRIVER HANDLE RETURNED"
#define	STR_DE_INVALID_WINDRVR_VERSION   "INVALID WINDRIVER VERSION"
#define	STR_DE_BAD_WINDRVR_BOARD_INIT   "WINDRIVER BOARD INITIALIZATION FAILURE"
#define	STR_DE_OPERATION_TIMED_OUT   "OPERATION TIMED OUT"
#define	STR_DE_INVALID_WINDRVR_KP   "KERNEL PLUGIN INITIALIZATION FAILURE"
#define	STR_DE_THREAD_FAILURE   "THREAD INITIALIZATION FAILURE"
#define	STR_DE_MUTEX_FAIL   "MUTEX CREATION OR LOCKING OPERATION FAILED"
#define	DACS_MAX_CHANNELS   16
#define	DSCUD_MAX_OPTO   8
#define	QMM_COUNTER_GROUP_1   1
#define	QMM_COUNTER_GROUP_2   2
#define	QMM_SOURCE_E1_TC_NM1   0
#define	QMM_SOURCE_SRC1   1
#define	QMM_SOURCE_SRC2   2
#define	QMM_SOURCE_SRC3   3
#define	QMM_SOURCE_SRC4   4
#define	QMM_SOURCE_SRC5   5
#define	QMM_SOURCE_GATE1   6
#define	QMM_SOURCE_GATE2   7
#define	QMM_SOURCE_GATE3   8
#define	QMM_SOURCE_GATE4   9
#define	QMM_SOURCE_GATE5   10
#define	QMM_SOURCE_F1_4MHZ   11
#define	QMM_SOURCE_F2_400KHZ   12
#define	QMM_SOURCE_F3_40KHZ   13
#define	QMM_SOURCE_F4_4KHZ   14
#define	QMM_SOURCE_F5_400HZ   15
#define	QMM_TOD_DISABLED   0
#define	QMM_TOD_DIVIDE_BY_5   1
#define	QMM_TOD_DIVIDE_BY_6   2
#define	QMM_TOD_DIVIDE_BY_10   3
#define	QMM_NO_GATING   0
#define	QMM_ACTIVE_HIGH_TC_NM1   1
#define	QMM_ACTIVE_HIGH_LEVEL_GATE_NP1   2
#define	QMM_ACTIVE_HIGH_LEVEL_GATE_NM1   3
#define	QMM_ACTIVE_HIGH_LEVEL_GATE_N   4
#define	QMM_ACTIVE_LOW_LEVEL_GATE_N   5
#define	QMM_ACTIVE_HIGH_EDGE_GATE_N   6
#define	QMM_ACTIVE_LOW_EDGE_GATE_N   7
#define	QMM_INACTIVE_OUTPUT_LOW   0
#define	QMM_ACTIVE_HIGH_PULSE_ON_TC   1
#define	QMM_TOGGLE_ON_TC   2
#define	QMM_INACTIVE_OUTPUT_HIGH   4
#define	QMM_ACTIVE_LOW_PULSE_ON_TC   5
#define	QMM_ACTION_NONE   0
#define	QMM_ACTION_ARM   1
#define	QMM_ACTION_LOAD   2
#define	QMM_ACTION_LOAD_AND_ARM   3
#define	QMM_ACTION_DISARM_AND_SAVE   4
#define	QMM_ACTION_SAVE   5
#define	QMM_ACTION_DISARM   6
#define	QMM_SPECIAL_CLEAR_TOGGLE_OUTPUT   0
#define	QMM_SPECIAL_SET_TOGGLE_OUTPUT   1
#define	QMM_SPECIAL_STEP_COUNTER   2
#define	QMM_SPECIAL_PROGRAM_ALARM   3
#define	QMM_INTERVAL_1MS_1KHZ   0
#define	QMM_INTERVAL_10MS_100HZ   1
#define	QMM_INTERVAL_100MS_10HZ   2
#define	QMM_INTERVAL_1S_1HZ   3
#define	QMM_INTERVAL_10S_01HZ   4
Typedefs
typedef void(*	DSCUserInterruptFunction )(void *parameter)
Functions
BYTE DSCUDAPICALL	dscGetLastError (ERRPARAMS *errparams)
DSCUDAPICALL char *	dscGetErrorString (BYTE error_code)
BYTE DSCUDAPICALL	dscInit (WORD version)
BYTE DSCUDAPICALL	dscFree (void)
BYTE DSCUDAPICALL	dscInitBoard (BYTE boardtype, DSCCB *dsccb, DSCB *board)
BYTE DSCUDAPICALL	dscPCIInitBoard (BYTE boardtype, DSCCBP *dsccbp, DSCB *board)
BYTE DSCUDAPICALL	dscFreeBoard (DSCB board)
BYTE DSCUDAPICALL	dscADSetSettings (DSCB board, DSCADSETTINGS *settings)
BYTE DSCUDAPICALL	dscADSetChannel (DSCB board, BYTE low_channel, BYTE high_channel)
BYTE DSCUDAPICALL	dscADSample (DSCB board, DSCSAMPLE *sample)
BYTE DSCUDAPICALL	dscADSampleInt (DSCB board, DSCAIOINT *dscaioint)
BYTE DSCUDAPICALL	dscADSampleAvg (DSCB board, DFLOAT *average, int count)
BYTE DSCUDAPICALL	dscADScan (DSCB board, DSCADSCAN *dscadscan, DSCSAMPLE *sample_values)
BYTE DSCUDAPICALL	dscADScanInt (DSCB board, DSCAIOINT *dscaioint)
BYTE DSCUDAPICALL	dscADScanAvg (DSCB board, DSCADSCAN *dscadscan, DFLOAT *average_values, int count)
BYTE DSCUDAPICALL	dscDASetPolarity (DSCB board, BYTE polarity)
BYTE DSCUDAPICALL	dscDASetSettings (DSCB board, DSCDASETTINGS *dasettings)
BYTE DSCUDAPICALL	dscDAConvert (DSCB board, BYTE channel, DSCDACODE output_code)
BYTE DSCUDAPICALL	dscDAConvertScan (DSCB board, DSCDACS *dscdacs)
BYTE DSCUDAPICALL	dscDAConvertScanInt (DSCB board, DSCAIOINT *dscaioint)
BYTE DSCUDAPICALL	dscDIOSetConfig (DSCB board, BYTE *config_bytes)
BYTE DSCUDAPICALL	dscDIOInputByte (DSCB board, BYTE port, BYTE *digital_value)
BYTE DSCUDAPICALL	dscDIOInputWord (DSCB board, BYTE port, WORD *digital_value)
BYTE DSCUDAPICALL	dscDIOOutputByte (DSCB board, BYTE port, BYTE digital_value)
BYTE DSCUDAPICALL	dscDIOOutputWord (DSCB board, BYTE port, WORD digital_value)
BYTE DSCUDAPICALL	dscDIOInputBit (DSCB board, BYTE port, BYTE bit, BYTE *digital_value)
BYTE DSCUDAPICALL	dscDIOOutputBit (DSCB board, BYTE port, BYTE bit, BYTE digital_value)
BYTE DSCUDAPICALL	dscDIOSetBit (DSCB board, BYTE port, BYTE bit)
BYTE DSCUDAPICALL	dscDIOClearBit (DSCB board, BYTE port, BYTE bit)
BYTE DSCUDAPICALL	dscDIOInputInt (DSCB board, DSCDIOINT *dscdioint)
BYTE DSCUDAPICALL	dscDIOOutputInt (DSCB board, DSCDIOINT *dscdioint)
BYTE DSCUDAPICALL	dscDMM32DIOOutputByte (DSCB board, BYTE port, BYTE digital_value)
BYTE DSCUDAPICALL	dscDMM32DIOInputByte (DSCB board, BYTE port, BYTE *digital_value)
BYTE DSCUDAPICALL	dscOptoInputByte (DSCB board, BYTE port, BYTE *optoValue)
BYTE DSCUDAPICALL	dscOptoInputBit (DSCB board, BYTE port, BYTE bit, BYTE *optoValue)
BYTE DSCUDAPICALL	dscOptoGetPolarity (DSCB board, BYTE *polarity)
BYTE DSCUDAPICALL	dscOptoGetState (DSCB board, DSCOPTOSTATE *state)
BYTE DSCUDAPICALL	dscOptoSetState (DSCB board, DSCOPTOSTATE *state)
BYTE DSCUDAPICALL	dscCounterSetRateSingle (DSCB board, float hertz, DWORD ctr)
BYTE DSCUDAPICALL	dscCounterSetRate (DSCB board, float hertz)
BYTE DSCUDAPICALL	dscCounterDirectSet (DSCB board, BYTE code, DWORD data, BYTE ctr_number)
BYTE DSCUDAPICALL	dscCounterRead (DSCB board, DSCCR *dsccr)
BYTE DSCUDAPICALL	dscSetCalMux (DSCB board, BOOL on)
BYTE DSCUDAPICALL	dscADAutoCal (DSCB board, DSCADCALPARAMS *params)
BYTE DSCUDAPICALL	dscDAAutoCal (DSCB board, DSCDACALPARAMS *params)
BYTE DSCUDAPICALL	dscADCalVerify (DSCB board, DSCADCALPARAMS *params)
BYTE DSCUDAPICALL	dscDACalVerify (DSCB board, DSCDACALPARAMS *params)
BYTE DSCUDAPICALL	dscGetReferenceVoltages (DSCB board, DFLOAT *refs)
BYTE DSCUDAPICALL	dscSetReferenceVoltages (DSCB board, DFLOAT *refs)
BYTE DSCUDAPICALL	dscDAGetOffsets (DSCB board, DFLOAT *offsets, int count)
BYTE DSCUDAPICALL	dscDASetOffsets (DSCB board, DFLOAT *offsets, int count)
BYTE DSCUDAPICALL	dscSetRelay (DSCB board, BYTE relay, BYTE value)
BYTE DSCUDAPICALL	dscGetRelay (DSCB board, BYTE relay, BYTE *value)
BYTE DSCUDAPICALL	dscSetRelayMulti (DSCB board, BYTE relayGroup, BYTE value)
BYTE DSCUDAPICALL	dscGetRelayMulti (DSCB board, BYTE relayGroup, BYTE *value)
BYTE DSCUDAPICALL	dscWatchdogEnable (DSCB board, WORD timer16, BYTE timer8, SDWORD options)
BYTE DSCUDAPICALL	dscWatchdogDisable (DSCB board)
BYTE DSCUDAPICALL	dscWatchdogTrigger (DSCB board)
BYTE DSCUDAPICALL	dscPWMLoad (DSCB board, BYTE pwm_circuit, BYTE counter, DWORD value)
BYTE DSCUDAPICALL	dscPWMConfig (DSCB board, BYTE *config_byte)
BYTE DSCUDAPICALL	dscPWMClear (DSCB board, BYTE pwm_circuit)
BYTE DSCUDAPICALL	dscPWMFunction (DSCB board, DSCPWM *dscpwm)
BYTE DSCUDAPICALL	dscRegisterRead (DSCB board, WORD address, BYTE *data)
BYTE DSCUDAPICALL	dscRegisterWrite (DSCB board, WORD address, BYTE data)
BYTE DSCUDAPICALL	dscInp (DWORD address, BYTE *value)
BYTE DSCUDAPICALL	dscInpw (DWORD address, WORD *value)
BYTE DSCUDAPICALL	dscInpl (DWORD address, DWORD *value)
BYTE DSCUDAPICALL	dscInpws (DWORD address, WORD *buffer, WORD n)
BYTE DSCUDAPICALL	dscOutp (DWORD address, BYTE value)
BYTE DSCUDAPICALL	dscOutpw (DWORD address, WORD value)
BYTE DSCUDAPICALL	dscOutpl (DWORD address, DWORD value)
BYTE DSCUDAPICALL	dscOutpws (DWORD address, WORD *buffer, WORD n)
BYTE DSCUDAPICALL	dscSleep (DWORD ms)
BYTE DSCUDAPICALL	dscGetTime (DWORD *ms)
BYTE DSCUDAPICALL	dscGetEEPROM (DSCB board, DWORD address, BYTE *data)
BYTE DSCUDAPICALL	dscSetEEPROM (DSCB board, DWORD address, BYTE data)
BYTE DSCUDAPICALL	dscSetTrimDac (DSCB board, DWORD trimDac, BYTE value)
BYTE DSCUDAPICALL	dscGetStatus (DSCB board, DSCS *status)
BYTE DSCUDAPICALL	dscCancelOp (DSCB board)
BYTE DSCUDAPICALL	dscCancelOpType (DSCB board, DWORD int_type)
BYTE DSCUDAPICALL	dscPauseOp (DSCB board)
BYTE DSCUDAPICALL	dscResumeOp (DSCB board)
BYTE DSCUDAPICALL	dscSetUserInterruptFunction (DSCB board, DSCUSERINTFUNCTION *dscuserintfunc)
BYTE DSCUDAPICALL	dscSetUserInterruptFunctionType (DSCB board, DSCUSERINTFUNCTION *dscuserintfunc, DWORD int_type)
BYTE DSCUDAPICALL	dscUserInt (DSCB board, DSCUSERINT *dscuserint, DSCUserInterruptFunction function)
BYTE DSCUDAPICALL	dscUserIntVB (DSCB board, DSCUSERINT *dscuserint)
BYTE DSCUDAPICALL	dscClearUserInterruptFunction (DSCB board)
BYTE DSCUDAPICALL	dscClearUserInterruptFunctionType (DSCB board, DWORD int_type)
BYTE DSCUDAPICALL	dscGetBoardMacro (char *boardtype, BYTE *macro)
BYTE DSCUDAPICALL	dscGetFPGARev (DSCB board, WORD *fpga)
BYTE DSCUDAPICALL	dscSetSystemPriority (DWORD priority)
BYTE DSCUDAPICALL	dscADCodeToVoltage (DSCB board, DSCADSETTINGS adsettings, DSCSAMPLE adcode, DFLOAT *voltage)
BYTE DSCUDAPICALL	dscVoltageToADCode (DSCB board, DSCADSETTINGS adsettings, DFLOAT voltage, DSCSAMPLE *adcode)
BYTE DSCUDAPICALL	dscDACodeToVoltage (DSCB board, DSCDASETTINGS dasettings, DSCDACODE dacode, DFLOAT *voltage)
BYTE DSCUDAPICALL	dscVoltageToDACode (DSCB board, DSCDASETTINGS dasettings, DFLOAT voltage, DSCDACODE *dacode)
BYTE DSCUDAPICALL	dscIR104ClearRelay (DSCB board, BYTE relay)
BYTE DSCUDAPICALL	dscIR104SetRelay (DSCB board, BYTE relay)
BYTE DSCUDAPICALL	dscIR104RelayInput (DSCB board, BYTE relay, BYTE *value)
BYTE DSCUDAPICALL	dscIR104OptoInput (DSCB board, BYTE opto, BYTE *value)
BYTE DSCUDAPICALL	dscEMMDIOGetState (DSCB board, DSCEMMDIO *state)
BYTE DSCUDAPICALL	dscEMMDIOSetState (DSCB board, DSCEMMDIO *state)
BYTE DSCUDAPICALL	dscEMMDIOResetInt (DSCB board, DSCEMMDIORESETINT *edge)
BYTE DSCUDAPICALL	dscEnhancedFeaturesEnable (DSCB board, BOOL enable)
BYTE DSCUDAPICALL	dscPICOutp (DSCB board, DWORD address, BYTE value)
BYTE DSCUDAPICALL	dscPICInp (DSCB board, DWORD address, BYTE *value)
BYTE DSCUDAPICALL	dscPICProgEnable (DSCB board, BOOL enable)
BYTE DSCUDAPICALL	dscPICProgSet (DSCB board, BOOL dout, BOOL dstate, BOOL cstate)
BYTE DSCUDAPICALL	dscPICProgGet (DSCB board, BOOL *din)
BYTE DSCUDAPICALL	dscAACCommand (DSCB board, DWORD cmd)
BYTE DSCUDAPICALL	dscAACGetStatus (DSCB board, DSCAACSTATUS *status)
BYTE DSCUDAPICALL	dscWGCommand (DSCB board, DWORD cmd)
BYTE DSCUDAPICALL	dscWGConfigSet (DSCB board, DSCWGCONFIG *config)
BYTE DSCUDAPICALL	dscWGBufferSet (DSCB board, DWORD address, DSCDACODE value, DWORD channel, BOOL simul)
BYTE DSCUDAPICALL	dscQMMReset (DSCB board)
BYTE DSCUDAPICALL	dscQMMSetMMR (DSCB board, DSCQMM_MMR *dscqmmmmr)
BYTE DSCUDAPICALL	dscQMMSetCMR (DSCB board, DSCQMM_CMR *dscqmmcmr)
BYTE DSCUDAPICALL	dscQMMCounterControl (DSCB board, DSCQMM_MCC *dscqmmmcc, BYTE *status)
BYTE DSCUDAPICALL	dscQMMSingleCounterControl (DSCB board, BYTE counter, BYTE action)
BYTE DSCUDAPICALL	dscQMMSetLoadRegister (DSCB board, BYTE counter, WORD value)
BYTE DSCUDAPICALL	dscQMMSetHoldRegister (DSCB board, BYTE counter, WORD value)
BYTE DSCUDAPICALL	dscQMMReadHoldRegister (DSCB board, BYTE counter, WORD *value)
BYTE DSCUDAPICALL	dscQMMSpecialCounterFunction (DSCB board, DSCQMM_SCF *dscqmmscf)
BYTE DSCUDAPICALL	dscQMMMeasureFrequency (DSCB board, BYTE interval, BYTE source, FLOAT *freq)
BYTE DSCUDAPICALL	dscQMMMeasurePeriod (DSCB board, BYTE frequency, FLOAT *period)
BYTE DSCUDAPICALL	dscQMMPulseWidthModulation (DSCB board, DSCQMM_PWM *dscqmmpwm)
Variables
typedef	DSCADCALPARAMS

---

Define Documentation

#define AAC_CMD_ABORT   0x02

Definition at line 388 of file dscud.h.

#define AAC_CMD_HOLD   0x10

Definition at line 385 of file dscud.h.

#define AAC_CMD_REL   0x08

Definition at line 386 of file dscud.h.

#define AAC_CMD_RESET   0x04

Definition at line 387 of file dscud.h.

#define AAC_CMD_TRIG   0x01

Definition at line 389 of file dscud.h.

#define ATHENA_WD_ENABLE_WDI   0x80

Definition at line 290 of file dscud.h.

#define ATHENA_WD_ENABLE_WDO   0x40

Definition at line 289 of file dscud.h.

#define ATHENA_WD_TRIGGER_SMI   0x20

Definition at line 288 of file dscud.h.

#define ATHENA_WD_WDI_ASSERT_RISING_EDGE   0x10

Definition at line 287 of file dscud.h.

#define BIPOLAR   0

Definition at line 209 of file dscud.h.

#define BOOL   int

Definition at line 113 of file dscud.h.

#define BYTE   unsigned char

Definition at line 68 of file dscud.h. Referenced by DIOOutputByte(), and InitDAQCard().

#define COUNTER_0   0x00

Definition at line 305 of file dscud.h.

#define COUNTER_0_1   0x04

Definition at line 308 of file dscud.h.

#define COUNTER_0_1_2   0x10

Definition at line 310 of file dscud.h.

#define COUNTER_1   0x01

Definition at line 306 of file dscud.h.

#define COUNTER_1_2   0x08

Definition at line 309 of file dscud.h.

#define COUNTER_2   0x02

Definition at line 307 of file dscud.h.

#define DACS_MAX_CHANNELS   16

Definition at line 684 of file dscud.h.

#define DE_ALREADY_PAUSED   10

Definition at line 413 of file dscud.h.

#define DE_ALTERNATE_IN_PROGRESS   6

Definition at line 409 of file dscud.h.

#define DE_BAD_WINDRVR_BOARD_INIT   19

Definition at line 422 of file dscud.h.

#define DE_BOARD_BUSY   16

Definition at line 419 of file dscud.h.

#define DE_BOARD_LIMIT_REACHED   15

Definition at line 418 of file dscud.h.

#define DE_BUFFER_ROLLOVER   8

Definition at line 411 of file dscud.h.

#define DE_DSCUDH_INVALID   13

Definition at line 416 of file dscud.h.

#define DE_HW_FAILURE   1

Definition at line 404 of file dscud.h.

#define DE_HW_NOT_SUPPORTED   3

Definition at line 406 of file dscud.h.

#define DE_INVALID_BOARD   14

Definition at line 417 of file dscud.h.

#define DE_INVALID_ERROR_CODE   9

Definition at line 412 of file dscud.h.

#define DE_INVALID_FUNC   12

Definition at line 415 of file dscud.h.

#define DE_INVALID_PARM   5

Definition at line 408 of file dscud.h.

#define DE_INVALID_WINDRVR_HANDLE   17

Definition at line 420 of file dscud.h.

#define DE_INVALID_WINDRVR_KP   21

Definition at line 424 of file dscud.h.

#define DE_INVALID_WINDRVR_VERSION   18

Definition at line 421 of file dscud.h.

#define DE_NONE   0

Definition at line 403 of file dscud.h.

#define DE_NONE_IN_PROGRESS   7

Definition at line 410 of file dscud.h.

#define DE_OPERATION_TIMED_OUT   20

Definition at line 423 of file dscud.h.

#define DE_OVERFLOW   11

Definition at line 414 of file dscud.h.

#define DE_SW_FAILURE   2

Definition at line 405 of file dscud.h.

#define DE_SW_NOT_SUPPORTED   4

Definition at line 407 of file dscud.h.

#define DE_THREAD_FAILURE   22

Definition at line 425 of file dscud.h.

#define DFLOAT   double

Definition at line 108 of file dscud.h.

#define DIFFERENTIAL   1

Definition at line 228 of file dscud.h.

#define DSC_ATHENA   25

Definition at line 193 of file dscud.h.

#define DSC_CPT   21

Definition at line 186 of file dscud.h.

#define DSC_DIO82C55   24

Definition at line 190 of file dscud.h.

#define DSC_DMM   4

Definition at line 168 of file dscud.h.

#define DSC_DMM16   0

Definition at line 164 of file dscud.h.

#define DSC_DMM16AT   16

Definition at line 181 of file dscud.h.

#define DSC_DMM32   12

Definition at line 176 of file dscud.h. Referenced by InitDAQCard().

#define DSC_DMM32AT   12

Definition at line 177 of file dscud.h.

#define DSC_DMM32X   27

Definition at line 195 of file dscud.h.

#define DSC_DMM32XAT   27

Definition at line 196 of file dscud.h.

#define DSC_DMM48   22

Definition at line 187 of file dscud.h.

#define DSC_DMM48AT   22

Definition at line 188 of file dscud.h.

#define DSC_DMMAT   15

Definition at line 180 of file dscud.h.

#define DSC_DRVR   255

Definition at line 200 of file dscud.h.

#define DSC_ELEKTRA   28

Definition at line 197 of file dscud.h.

#define DSC_EMM8   18

Definition at line 183 of file dscud.h.

#define DSC_EMMDIO   13

Definition at line 178 of file dscud.h.

#define DSC_EMMOPTO   24

Definition at line 192 of file dscud.h.

#define DSC_GMM   6

Definition at line 170 of file dscud.h.

#define DSC_HERCEBX   20

Definition at line 185 of file dscud.h.

#define DSC_IR104   17

Definition at line 182 of file dscud.h.

#define DSC_METIS   26

Definition at line 194 of file dscud.h.

#define DSC_MRC   24

Definition at line 191 of file dscud.h.

#define DSC_OMM   10

Definition at line 174 of file dscud.h.

#define DSC_OMMDIO   23

Definition at line 189 of file dscud.h.

#define DSC_OPMM   3

Definition at line 167 of file dscud.h.

#define DSC_PMM   9

Definition at line 173 of file dscud.h.

#define DSC_PROM   19

Definition at line 184 of file dscud.h.

#define DSC_QMM   7

Definition at line 171 of file dscud.h.

#define DSC_RAW   127

Definition at line 199 of file dscud.h.

#define DSC_RMM   1

Definition at line 165 of file dscud.h.

#define DSC_RMM1612   14

Definition at line 179 of file dscud.h.

#define DSC_RMM416   11

Definition at line 175 of file dscud.h.

#define DSC_SMM   5

Definition at line 169 of file dscud.h.

#define DSC_TEST   126

Definition at line 198 of file dscud.h.

#define DSC_TMM   2

Definition at line 166 of file dscud.h.

#define DSC_VERSION   0x0591

Definition at line 158 of file dscud.h. Referenced by InitDAQCard().

#define DSC_ZMM   8

Definition at line 172 of file dscud.h.

#define DSCB   SWORD

Definition at line 143 of file dscud.h.

#define DSCDACODE   DWORD

Definition at line 132 of file dscud.h.

#define DSCSAMPLE   SWORD

Definition at line 128 of file dscud.h.

#define DSCUD_MAX_OPTO   8

Definition at line 877 of file dscud.h.

#define DSCUDAPICALL

Definition at line 140 of file dscud.h.

#define DWORD   unsigned long

Definition at line 88 of file dscud.h.

#define ELEKTRA_WD_ENABLE_WDI   0x80

Definition at line 299 of file dscud.h.

#define ELEKTRA_WD_ENABLE_WDO   0x40

Definition at line 298 of file dscud.h.

#define ELEKTRA_WD_TRIGGER_SMI   0x20

Definition at line 297 of file dscud.h.

#define ELEKTRA_WD_WDI_ASSERT_RISING_EDGE   0x10

Definition at line 296 of file dscud.h.

#define FALSE   ((BOOL)0)

Definition at line 123 of file dscud.h. Referenced by O_SESSAME::Interpolator::Interpolator(), and vmcomplete().

#define FLOAT   float

Definition at line 103 of file dscud.h.

#define GAIN_1   0

Definition at line 212 of file dscud.h.

#define GAIN_10   1

Definition at line 216 of file dscud.h.

#define GAIN_100   2

Definition at line 217 of file dscud.h.

#define GAIN_1000   3

Definition at line 218 of file dscud.h.

#define GAIN_2   1

Definition at line 213 of file dscud.h.

#define GAIN_4   2

Definition at line 214 of file dscud.h.

#define GAIN_8   3

Definition at line 215 of file dscud.h.

#define HERC_WD_ENABLE_WDI_ASSERTION   0x01

Definition at line 281 of file dscud.h.

#define HERC_WD_TRIGGER_NMI   0x10

Definition at line 277 of file dscud.h.

#define HERC_WD_TRIGGER_RESET   0x08

Definition at line 278 of file dscud.h.

#define HERC_WD_WDI_ASSERT_FALLING_EDGE   0x02

Definition at line 279 of file dscud.h.

#define HERC_WD_WDO_TRIGGERED_EARLY   0x04

Definition at line 280 of file dscud.h.

#define INT_TYPE_AD   0x01

Definition at line 321 of file dscud.h.

#define INT_TYPE_COUNTER   0x10

Definition at line 325 of file dscud.h.

#define INT_TYPE_DA   0x02

Definition at line 322 of file dscud.h.

#define INT_TYPE_DIOIN   0x04

Definition at line 323 of file dscud.h.

#define INT_TYPE_DIOREAD   0x20

Definition at line 326 of file dscud.h.

#define INT_TYPE_DIOWRITE   0x80

Definition at line 328 of file dscud.h.

#define INT_TYPE_INDEX_AD   0

Definition at line 330 of file dscud.h.

#define INT_TYPE_INDEX_COUNTER   4

Definition at line 334 of file dscud.h.

#define INT_TYPE_INDEX_DA   1

Definition at line 331 of file dscud.h.

#define INT_TYPE_INDEX_DIOIN   2

Definition at line 332 of file dscud.h.

#define INT_TYPE_INDEX_DIOREAD   5

Definition at line 335 of file dscud.h.

#define INT_TYPE_INDEX_DIOWRITE   7

Definition at line 337 of file dscud.h.

#define INT_TYPE_INDEX_OPTO   6

Definition at line 336 of file dscud.h.

#define INT_TYPE_INDEX_USER   3

Definition at line 333 of file dscud.h.

#define INT_TYPE_OPTO   0x40

Definition at line 327 of file dscud.h.

#define INT_TYPE_USER   0x08

Definition at line 324 of file dscud.h.

#define LONG   signed long

Definition at line 98 of file dscud.h.

#define MODE_0_INT11_INT12   0

Definition at line 235 of file dscud.h.

#define MODE_0_INT21_INT22   1

Definition at line 236 of file dscud.h.

#define MODE_1_82C55_1_C0   2

Definition at line 237 of file dscud.h.

#define MODE_1_82C55_1_C3   3

Definition at line 238 of file dscud.h.

#define MODE_1_82C55_2_C0   4

Definition at line 239 of file dscud.h.

#define MODE_1_82C55_2_C3   5

Definition at line 240 of file dscud.h.

#define OMM_SOURCE_CLOCK   1

Definition at line 254 of file dscud.h.

#define OMM_SOURCE_OUT   2

Definition at line 255 of file dscud.h.

#define OMM_SOURCE_PIN   0

Definition at line 253 of file dscud.h.

#define OP_TYPE_DMA   2

Definition at line 319 of file dscud.h.

#define OP_TYPE_INT   1

Definition at line 318 of file dscud.h.

#define OP_TYPE_NONE   0

Definition at line 317 of file dscud.h.

#define PCI_DSC_VENDORID   0x1234

Definition at line 397 of file dscud.h.

#define PCI_MAX_RESOURCES   5

Definition at line 396 of file dscud.h.

#define PROM_WD_ENABLE_WDI_ASSERTION   0x40

Definition at line 270 of file dscud.h.

#define PROM_WD_TRIGGER_NMI   0x02

Definition at line 265 of file dscud.h.

#define PROM_WD_TRIGGER_RESET   0x08

Definition at line 267 of file dscud.h.

#define PROM_WD_TRIGGER_SCI   0x01

Definition at line 264 of file dscud.h.

#define PROM_WD_TRIGGER_SMI   0x04

Definition at line 266 of file dscud.h.

#define PROM_WD_WDI_ASSERT_FALLING_EDGE   0x10

Definition at line 268 of file dscud.h.

#define PROM_WD_WDO_TRIGGERED_EARLY   0x20

Definition at line 269 of file dscud.h.

#define QMM_ACTION_ARM   1

Definition at line 1251 of file dscud.h.

#define QMM_ACTION_DISARM   6

Definition at line 1256 of file dscud.h.

#define QMM_ACTION_DISARM_AND_SAVE   4

Definition at line 1254 of file dscud.h.

#define QMM_ACTION_LOAD   2

Definition at line 1252 of file dscud.h.

#define QMM_ACTION_LOAD_AND_ARM   3

Definition at line 1253 of file dscud.h.

#define QMM_ACTION_NONE   0

Definition at line 1250 of file dscud.h.

#define QMM_ACTION_SAVE   5

Definition at line 1255 of file dscud.h.

#define QMM_ACTIVE_HIGH_EDGE_GATE_N   6

Definition at line 1239 of file dscud.h.

#define QMM_ACTIVE_HIGH_LEVEL_GATE_N   4

Definition at line 1237 of file dscud.h.

#define QMM_ACTIVE_HIGH_LEVEL_GATE_NM1   3

Definition at line 1236 of file dscud.h.

#define QMM_ACTIVE_HIGH_LEVEL_GATE_NP1   2

Definition at line 1235 of file dscud.h.

#define QMM_ACTIVE_HIGH_PULSE_ON_TC   1

Definition at line 1244 of file dscud.h.

#define QMM_ACTIVE_HIGH_TC_NM1   1

Definition at line 1234 of file dscud.h.

#define QMM_ACTIVE_LOW_EDGE_GATE_N   7

Definition at line 1240 of file dscud.h.

#define QMM_ACTIVE_LOW_LEVEL_GATE_N   5

Definition at line 1238 of file dscud.h.

#define QMM_ACTIVE_LOW_PULSE_ON_TC   5

Definition at line 1247 of file dscud.h.

#define QMM_COUNTER_GROUP_1   1

Definition at line 1205 of file dscud.h.

#define QMM_COUNTER_GROUP_2   2

Definition at line 1206 of file dscud.h.

#define QMM_INACTIVE_OUTPUT_HIGH   4

Definition at line 1246 of file dscud.h.

#define QMM_INACTIVE_OUTPUT_LOW   0

Definition at line 1243 of file dscud.h.

#define QMM_INTERVAL_100MS_10HZ   2

Definition at line 1267 of file dscud.h.

#define QMM_INTERVAL_10MS_100HZ   1

Definition at line 1266 of file dscud.h.

#define QMM_INTERVAL_10S_01HZ   4

Definition at line 1269 of file dscud.h.

#define QMM_INTERVAL_1MS_1KHZ   0

Definition at line 1265 of file dscud.h.

#define QMM_INTERVAL_1S_1HZ   3

Definition at line 1268 of file dscud.h.

#define QMM_NO_GATING   0

Definition at line 1233 of file dscud.h.

#define QMM_SOURCE_E1_TC_NM1   0

Definition at line 1209 of file dscud.h.

#define QMM_SOURCE_F1_4MHZ   11

Definition at line 1220 of file dscud.h.

#define QMM_SOURCE_F2_400KHZ   12

Definition at line 1221 of file dscud.h.

#define QMM_SOURCE_F3_40KHZ   13

Definition at line 1222 of file dscud.h.

#define QMM_SOURCE_F4_4KHZ   14

Definition at line 1223 of file dscud.h.

#define QMM_SOURCE_F5_400HZ   15

Definition at line 1224 of file dscud.h.

#define QMM_SOURCE_GATE1   6

Definition at line 1215 of file dscud.h.

#define QMM_SOURCE_GATE2   7

Definition at line 1216 of file dscud.h.

#define QMM_SOURCE_GATE3   8

Definition at line 1217 of file dscud.h.

#define QMM_SOURCE_GATE4   9

Definition at line 1218 of file dscud.h.

#define QMM_SOURCE_GATE5   10

Definition at line 1219 of file dscud.h.

#define QMM_SOURCE_SRC1   1

Definition at line 1210 of file dscud.h.

#define QMM_SOURCE_SRC2   2

Definition at line 1211 of file dscud.h.

#define QMM_SOURCE_SRC3   3

Definition at line 1212 of file dscud.h.

#define QMM_SOURCE_SRC4   4

Definition at line 1213 of file dscud.h.

#define QMM_SOURCE_SRC5   5

Definition at line 1214 of file dscud.h.

#define QMM_SPECIAL_CLEAR_TOGGLE_OUTPUT   0

Definition at line 1259 of file dscud.h.

#define QMM_SPECIAL_PROGRAM_ALARM   3

Definition at line 1262 of file dscud.h.

#define QMM_SPECIAL_SET_TOGGLE_OUTPUT   1

Definition at line 1260 of file dscud.h.

#define QMM_SPECIAL_STEP_COUNTER   2

Definition at line 1261 of file dscud.h.

#define QMM_TOD_DISABLED   0

Definition at line 1227 of file dscud.h.

#define QMM_TOD_DIVIDE_BY_10   3

Definition at line 1230 of file dscud.h.

#define QMM_TOD_DIVIDE_BY_5   1

Definition at line 1228 of file dscud.h.

#define QMM_TOD_DIVIDE_BY_6   2

Definition at line 1229 of file dscud.h.

#define QMM_TOGGLE_ON_TC   2

Definition at line 1245 of file dscud.h.

#define RANGE_10   1

Definition at line 207 of file dscud.h.

#define RANGE_5   0

Definition at line 206 of file dscud.h.

#define SBYTE   signed char

Definition at line 73 of file dscud.h.

#define SCAN_INTERVAL_10   2

Definition at line 223 of file dscud.h.

#define SCAN_INTERVAL_15   1

Definition at line 224 of file dscud.h.

#define SCAN_INTERVAL_20   0

Definition at line 225 of file dscud.h.

#define SCAN_INTERVAL_4   5

Definition at line 220 of file dscud.h.

#define SCAN_INTERVAL_5   3

Definition at line 221 of file dscud.h.

#define SCAN_INTERVAL_9   4

Definition at line 222 of file dscud.h.

#define SDWORD   signed long

Definition at line 93 of file dscud.h.

#define SINGLE_ENDED   0

Definition at line 227 of file dscud.h.

#define SOURCE_82C55_1_C0   0

Definition at line 246 of file dscud.h.

#define SOURCE_82C55_2_C0   2

Definition at line 248 of file dscud.h.

#define SOURCE_COUNTER_0   1

Definition at line 247 of file dscud.h.

#define SOURCE_COUNTER_1   3

Definition at line 249 of file dscud.h.

#define SOURCE_COUNTER_2   5

Definition at line 251 of file dscud.h.

#define SOURCE_EXTERNAL   4

Definition at line 250 of file dscud.h.

#define STR_DE_ALREADY_PAUSED   "OPERATION ALREADY PAUSED"

Definition at line 441 of file dscud.h.

#define STR_DE_ALTERNATE_IN_PROGRESS   "ALTERNATE INTERRUPT OPERATION IN PROGRESS"

Definition at line 437 of file dscud.h.

#define STR_DE_BAD_WINDRVR_BOARD_INIT   "WINDRIVER BOARD INITIALIZATION FAILURE"

Definition at line 450 of file dscud.h.

#define STR_DE_BOARD_BUSY   "ATTEMPT TO ACQUIRE BOARD TIMED OUT"

Definition at line 447 of file dscud.h.

#define STR_DE_BOARD_LIMIT_REACHED   "MAXIMUM NUMBER OF BOARDS REACHED"

Definition at line 446 of file dscud.h.

#define STR_DE_BUFFER_ROLLOVER   "POINTER + SIZE OF DATA OVERRUN BUFFER"

Definition at line 439 of file dscud.h.

#define STR_DE_DSCUDH_INVALID   "LIBRARY HEADER VERSION MISMATCH"

Definition at line 444 of file dscud.h.

#define STR_DE_HW_FAILURE   "HARDWARE FAILURE"

Definition at line 432 of file dscud.h.

#define STR_DE_HW_NOT_SUPPORTED   "OPERATION NOT SUPPORTED BY HARDWARE"

Definition at line 434 of file dscud.h.

#define STR_DE_INVALID_BOARD   "INVALID BOARD TYPE SPECIFIED"

Definition at line 445 of file dscud.h.

#define STR_DE_INVALID_ERROR_CODE   "INVALID ERROR CODE, PLEASE IGNORE"

Definition at line 440 of file dscud.h.

#define STR_DE_INVALID_FUNC   "INVALID FUNCTION FOR SELECTED BOARD"

Definition at line 443 of file dscud.h.

#define STR_DE_INVALID_PARM   "INVALID PARAMETER"

Definition at line 436 of file dscud.h.

#define STR_DE_INVALID_WINDRVR_HANDLE   "INVALID WINDRIVER HANDLE RETURNED"

Definition at line 448 of file dscud.h.

#define STR_DE_INVALID_WINDRVR_KP   "KERNEL PLUGIN INITIALIZATION FAILURE"

Definition at line 452 of file dscud.h.

#define STR_DE_INVALID_WINDRVR_VERSION   "INVALID WINDRIVER VERSION"

Definition at line 449 of file dscud.h.

#define STR_DE_MUTEX_FAIL   "MUTEX CREATION OR LOCKING OPERATION FAILED"

Definition at line 454 of file dscud.h.

#define STR_DE_NONE   "NO ERRORS REPORTED"

Definition at line 431 of file dscud.h.

#define STR_DE_NONE_IN_PROGRESS   "NO INTERRUPT OPERATION IN PROGRESS"

Definition at line 438 of file dscud.h.

#define STR_DE_OPERATION_TIMED_OUT   "OPERATION TIMED OUT"

Definition at line 451 of file dscud.h.

#define STR_DE_OVERFLOW   "AM9513A COUNTER FUNCTION OVERFLOWED OR BUFFER OVERFLOW"

Definition at line 442 of file dscud.h.

#define STR_DE_SW_FAILURE   "SOFTWARE FAILURE"

Definition at line 433 of file dscud.h.

#define STR_DE_SW_NOT_SUPPORTED   "OPERATION NOT SUPPORTED BY SOFTWARE"

Definition at line 435 of file dscud.h.

#define STR_DE_THREAD_FAILURE   "THREAD INITIALIZATION FAILURE"

Definition at line 453 of file dscud.h.

#define SWORD   signed short

Definition at line 83 of file dscud.h. Referenced by InitDAQCard().

#define TRUE   ((BOOL)1)

Definition at line 118 of file dscud.h. Referenced by O_SESSAME::LinearInterpolator::Interpolate().

#define UNIPOLAR   1

Definition at line 210 of file dscud.h.

#define USER_INT_AFTER   1

Definition at line 344 of file dscud.h.

#define USER_INT_CANCEL   0

Definition at line 343 of file dscud.h.

#define USER_INT_INSTEAD   2

Definition at line 345 of file dscud.h.

#define USER_INT_SOURCE_EXTERNAL   1

Definition at line 347 of file dscud.h.

#define USER_INT_SOURCE_INTERNAL   0

Definition at line 348 of file dscud.h.

#define WG_CH_PER_FRAME_1   0

Definition at line 375 of file dscud.h.

#define WG_CH_PER_FRAME_2   1

Definition at line 376 of file dscud.h.

#define WG_CH_PER_FRAME_4   2

Definition at line 377 of file dscud.h.

#define WG_CMD_INC   0x08

Definition at line 358 of file dscud.h.

#define WG_CMD_PAUSE   0x02

Definition at line 356 of file dscud.h.

#define WG_CMD_RESET   0x04

Definition at line 357 of file dscud.h.

#define WG_CMD_START   0x01

Definition at line 355 of file dscud.h.

#define WG_SRC_CTR0   1

Definition at line 366 of file dscud.h.

#define WG_SRC_CTR12   2

Definition at line 367 of file dscud.h.

#define WG_SRC_EXT   3

Definition at line 368 of file dscud.h.

#define WG_SRC_MANUAL   0

Definition at line 365 of file dscud.h.

#define WORD   unsigned short

Definition at line 78 of file dscud.h.

---

Typedef Documentation

typedef void(* DSCUserInterruptFunction)(void *parameter)

Definition at line 135 of file dscud.h.

---

Function Documentation

BYTE DSCUDAPICALL dscAACCommand (  DSCB  board, DWORD  cmd )

BYTE DSCUDAPICALL dscAACGetStatus (  DSCB  board, DSCAACSTATUS *  status )

BYTE DSCUDAPICALL dscADAutoCal (  DSCB  board, DSCADCALPARAMS *  params )

BYTE DSCUDAPICALL dscADCalVerify (  DSCB  board, DSCADCALPARAMS *  params )

BYTE DSCUDAPICALL dscADCodeToVoltage (  DSCB  board, DSCADSETTINGS  adsettings, DSCSAMPLE  adcode, DFLOAT *  voltage )

BYTE DSCUDAPICALL dscADSample (  DSCB  board, DSCSAMPLE *  sample )

BYTE DSCUDAPICALL dscADSampleAvg (  DSCB  board, DFLOAT *  average, int  count )

BYTE DSCUDAPICALL dscADSampleInt (  DSCB  board, DSCAIOINT *  dscaioint )

BYTE DSCUDAPICALL dscADScan (  DSCB  board, DSCADSCAN *  dscadscan, DSCSAMPLE *  sample_values )

Referenced by ADscan().

BYTE DSCUDAPICALL dscADScanAvg (  DSCB  board, DSCADSCAN *  dscadscan, DFLOAT *  average_values, int  count )

BYTE DSCUDAPICALL dscADScanInt (  DSCB  board, DSCAIOINT *  dscaioint )

BYTE DSCUDAPICALL dscADSetChannel (  DSCB  board, BYTE  low_channel, BYTE  high_channel )

BYTE DSCUDAPICALL dscADSetSettings (  DSCB  board, DSCADSETTINGS *  settings )

Referenced by InitDAQCard().

BYTE DSCUDAPICALL dscCancelOp (  DSCB  board  )

BYTE DSCUDAPICALL dscCancelOpType (  DSCB  board, DWORD  int_type )

BYTE DSCUDAPICALL dscClearUserInterruptFunction (  DSCB  board  )

BYTE DSCUDAPICALL dscClearUserInterruptFunctionType (  DSCB  board, DWORD  int_type )

BYTE DSCUDAPICALL dscCounterDirectSet (  DSCB  board, BYTE  code, DWORD  data, BYTE  ctr_number )

BYTE DSCUDAPICALL dscCounterRead (  DSCB  board, DSCCR *  dsccr )

BYTE DSCUDAPICALL dscCounterSetRate (  DSCB  board, float  hertz )

BYTE DSCUDAPICALL dscCounterSetRateSingle (  DSCB  board, float  hertz, DWORD  ctr )

BYTE DSCUDAPICALL dscDAAutoCal (  DSCB  board, DSCDACALPARAMS *  params )

BYTE DSCUDAPICALL dscDACalVerify (  DSCB  board, DSCDACALPARAMS *  params )

BYTE DSCUDAPICALL dscDACodeToVoltage (  DSCB  board, DSCDASETTINGS  dasettings, DSCDACODE  dacode, DFLOAT *  voltage )

BYTE DSCUDAPICALL dscDAConvert (  DSCB  board, BYTE  channel, DSCDACODE  output_code )

Referenced by DAConvert().

BYTE DSCUDAPICALL dscDAConvertScan (  DSCB  board, DSCDACS *  dscdacs )

BYTE DSCUDAPICALL dscDAConvertScanInt (  DSCB  board, DSCAIOINT *  dscaioint )

BYTE DSCUDAPICALL dscDAGetOffsets (  DSCB  board, DFLOAT *  offsets, int  count )

BYTE DSCUDAPICALL dscDASetOffsets (  DSCB  board, DFLOAT *  offsets, int  count )

BYTE DSCUDAPICALL dscDASetPolarity (  DSCB  board, BYTE  polarity )

BYTE DSCUDAPICALL dscDASetSettings (  DSCB  board, DSCDASETTINGS *  dasettings )

BYTE DSCUDAPICALL dscDIOClearBit (  DSCB  board, BYTE  port, BYTE  bit )

BYTE DSCUDAPICALL dscDIOInputBit (  DSCB  board, BYTE  port, BYTE  bit, BYTE *  digital_value )

BYTE DSCUDAPICALL dscDIOInputByte (  DSCB  board, BYTE  port, BYTE *  digital_value )

BYTE DSCUDAPICALL dscDIOInputInt (  DSCB  board, DSCDIOINT *  dscdioint )

BYTE DSCUDAPICALL dscDIOInputWord (  DSCB  board, BYTE  port, WORD *  digital_value )

BYTE DSCUDAPICALL dscDIOOutputBit (  DSCB  board, BYTE  port, BYTE  bit, BYTE  digital_value )

BYTE DSCUDAPICALL dscDIOOutputByte (  DSCB  board, BYTE  port, BYTE  digital_value )

Referenced by DIOOutputByte().

BYTE DSCUDAPICALL dscDIOOutputInt (  DSCB  board, DSCDIOINT *  dscdioint )

BYTE DSCUDAPICALL dscDIOOutputWord (  DSCB  board, BYTE  port, WORD  digital_value )

BYTE DSCUDAPICALL dscDIOSetBit (  DSCB  board, BYTE  port, BYTE  bit )

BYTE DSCUDAPICALL dscDIOSetConfig (  DSCB  board, BYTE *  config_bytes )

Referenced by InitDAQCard().

BYTE DSCUDAPICALL dscDMM32DIOInputByte (  DSCB  board, BYTE  port, BYTE *  digital_value )

BYTE DSCUDAPICALL dscDMM32DIOOutputByte (  DSCB  board, BYTE  port, BYTE  digital_value )

BYTE DSCUDAPICALL dscEMMDIOGetState (  DSCB  board, DSCEMMDIO *  state )

BYTE DSCUDAPICALL dscEMMDIOResetInt (  DSCB  board, DSCEMMDIORESETINT *  edge )

BYTE DSCUDAPICALL dscEMMDIOSetState (  DSCB  board, DSCEMMDIO *  state )

BYTE DSCUDAPICALL dscEnhancedFeaturesEnable (  DSCB  board, BOOL  enable )

BYTE DSCUDAPICALL dscFree (  void   )

Referenced by ShutDownDAQCard().

BYTE DSCUDAPICALL dscFreeBoard (  DSCB  board  )

BYTE DSCUDAPICALL dscGetBoardMacro (  char *  boardtype, BYTE *  macro )

BYTE DSCUDAPICALL dscGetEEPROM (  DSCB  board, DWORD  address, BYTE *  data )

DSCUDAPICALL char* dscGetErrorString (  BYTE  error_code  )

Referenced by ADscan().

BYTE DSCUDAPICALL dscGetFPGARev (  DSCB  board, WORD *  fpga )

BYTE DSCUDAPICALL dscGetLastError (  ERRPARAMS *  errparams  )

Referenced by DAConvert(), DIOOutputByte(), and InitDAQCard().

BYTE DSCUDAPICALL dscGetReferenceVoltages (  DSCB  board, DFLOAT *  refs )

BYTE DSCUDAPICALL dscGetRelay (  DSCB  board, BYTE  relay, BYTE *  value )

BYTE DSCUDAPICALL dscGetRelayMulti (  DSCB  board, BYTE  relayGroup, BYTE *  value )

BYTE DSCUDAPICALL dscGetStatus (  DSCB  board, DSCS *  status )

BYTE DSCUDAPICALL dscGetTime (  DWORD *  ms  )

BYTE DSCUDAPICALL dscInit (  WORD  version  )

Referenced by InitDAQCard().

BYTE DSCUDAPICALL dscInitBoard (  BYTE  boardtype, DSCCB *  dsccb, DSCB *  board )

Referenced by InitDAQCard().

BYTE DSCUDAPICALL dscInp (  DWORD  address, BYTE *  value )

BYTE DSCUDAPICALL dscInpl (  DWORD  address, DWORD *  value )

BYTE DSCUDAPICALL dscInpw (  DWORD  address, WORD *  value )

BYTE DSCUDAPICALL dscInpws (  DWORD  address, WORD *  buffer, WORD  n )

BYTE DSCUDAPICALL dscIR104ClearRelay (  DSCB  board, BYTE  relay )

BYTE DSCUDAPICALL dscIR104OptoInput (  DSCB  board, BYTE  opto, BYTE *  value )

BYTE DSCUDAPICALL dscIR104RelayInput (  DSCB  board, BYTE  relay, BYTE *  value )

BYTE DSCUDAPICALL dscIR104SetRelay (  DSCB  board, BYTE  relay )

BYTE DSCUDAPICALL dscOptoGetPolarity (  DSCB  board, BYTE *  polarity )

BYTE DSCUDAPICALL dscOptoGetState (  DSCB  board, DSCOPTOSTATE *  state )

BYTE DSCUDAPICALL dscOptoInputBit (  DSCB  board, BYTE  port, BYTE  bit, BYTE *  optoValue )

BYTE DSCUDAPICALL dscOptoInputByte (  DSCB  board, BYTE  port, BYTE *  optoValue )

BYTE DSCUDAPICALL dscOptoSetState (  DSCB  board, DSCOPTOSTATE *  state )

BYTE DSCUDAPICALL dscOutp (  DWORD  address, BYTE  value )

BYTE DSCUDAPICALL dscOutpl (  DWORD  address, DWORD  value )

BYTE DSCUDAPICALL dscOutpw (  DWORD  address, WORD  value )

BYTE DSCUDAPICALL dscOutpws (  DWORD  address, WORD *  buffer, WORD  n )

BYTE DSCUDAPICALL dscPauseOp (  DSCB  board  )

BYTE DSCUDAPICALL dscPCIInitBoard (  BYTE  boardtype, DSCCBP *  dsccbp, DSCB *  board )

BYTE DSCUDAPICALL dscPICInp (  DSCB  board, DWORD  address, BYTE *  value )

BYTE DSCUDAPICALL dscPICOutp (  DSCB  board, DWORD  address, BYTE  value )

BYTE DSCUDAPICALL dscPICProgEnable (  DSCB  board, BOOL  enable )

BYTE DSCUDAPICALL dscPICProgGet (  DSCB  board, BOOL *  din )

BYTE DSCUDAPICALL dscPICProgSet (  DSCB  board, BOOL  dout, BOOL  dstate, BOOL  cstate )

BYTE DSCUDAPICALL dscPWMClear (  DSCB  board, BYTE  pwm_circuit )

BYTE DSCUDAPICALL dscPWMConfig (  DSCB  board, BYTE *  config_byte )

BYTE DSCUDAPICALL dscPWMFunction (  DSCB  board, DSCPWM *  dscpwm )

BYTE DSCUDAPICALL dscPWMLoad (  DSCB  board, BYTE  pwm_circuit, BYTE  counter, DWORD  value )

BYTE DSCUDAPICALL dscQMMCounterControl (  DSCB  board, DSCQMM_MCC *  dscqmmmcc, BYTE *  status )

BYTE DSCUDAPICALL dscQMMMeasureFrequency (  DSCB  board, BYTE  interval, BYTE  source, FLOAT *  freq )

BYTE DSCUDAPICALL dscQMMMeasurePeriod (  DSCB  board, BYTE  frequency, FLOAT *  period )

BYTE DSCUDAPICALL dscQMMPulseWidthModulation (  DSCB  board, DSCQMM_PWM *  dscqmmpwm )

BYTE DSCUDAPICALL dscQMMReadHoldRegister (  DSCB  board, BYTE  counter, WORD *  value )

BYTE DSCUDAPICALL dscQMMReset (  DSCB  board  )

BYTE DSCUDAPICALL dscQMMSetCMR (  DSCB  board, DSCQMM_CMR *  dscqmmcmr )

BYTE DSCUDAPICALL dscQMMSetHoldRegister (  DSCB  board, BYTE  counter, WORD  value )

BYTE DSCUDAPICALL dscQMMSetLoadRegister (  DSCB  board, BYTE  counter, WORD  value )

BYTE DSCUDAPICALL dscQMMSetMMR (  DSCB  board, DSCQMM_MMR *  dscqmmmmr )

BYTE DSCUDAPICALL dscQMMSingleCounterControl (  DSCB  board, BYTE  counter, BYTE  action )

BYTE DSCUDAPICALL dscQMMSpecialCounterFunction (  DSCB  board, DSCQMM_SCF *  dscqmmscf )

BYTE DSCUDAPICALL dscRegisterRead (  DSCB  board, WORD  address, BYTE *  data )

BYTE DSCUDAPICALL dscRegisterWrite (  DSCB  board, WORD  address, BYTE  data )

BYTE DSCUDAPICALL dscResumeOp (  DSCB  board  )

BYTE DSCUDAPICALL dscSetCalMux (  DSCB  board, BOOL  on )

BYTE DSCUDAPICALL dscSetEEPROM (  DSCB  board, DWORD  address, BYTE  data )

BYTE DSCUDAPICALL dscSetReferenceVoltages (  DSCB  board, DFLOAT *  refs )

BYTE DSCUDAPICALL dscSetRelay (  DSCB  board, BYTE  relay, BYTE  value )

BYTE DSCUDAPICALL dscSetRelayMulti (  DSCB  board, BYTE  relayGroup, BYTE  value )

BYTE DSCUDAPICALL dscSetSystemPriority (  DWORD  priority  )

BYTE DSCUDAPICALL dscSetTrimDac (  DSCB  board, DWORD  trimDac, BYTE  value )

BYTE DSCUDAPICALL dscSetUserInterruptFunction (  DSCB  board, DSCUSERINTFUNCTION *  dscuserintfunc )

BYTE DSCUDAPICALL dscSetUserInterruptFunctionType (  DSCB  board, DSCUSERINTFUNCTION *  dscuserintfunc, DWORD  int_type )

BYTE DSCUDAPICALL dscSleep (  DWORD  ms  )

BYTE DSCUDAPICALL dscUserInt (  DSCB  board, DSCUSERINT *  dscuserint, DSCUserInterruptFunction  function )

BYTE DSCUDAPICALL dscUserIntVB (  DSCB  board, DSCUSERINT *  dscuserint )

BYTE DSCUDAPICALL dscVoltageToADCode (  DSCB  board, DSCADSETTINGS  adsettings, DFLOAT  voltage, DSCSAMPLE *  adcode )

BYTE DSCUDAPICALL dscVoltageToDACode (  DSCB  board, DSCDASETTINGS  dasettings, DFLOAT  voltage, DSCDACODE *  dacode )

BYTE DSCUDAPICALL dscWatchdogDisable (  DSCB  board  )

BYTE DSCUDAPICALL dscWatchdogEnable (  DSCB  board, WORD  timer16, BYTE  timer8, SDWORD  options )

BYTE DSCUDAPICALL dscWatchdogTrigger (  DSCB  board  )

BYTE DSCUDAPICALL dscWGBufferSet (  DSCB  board, DWORD  address, DSCDACODE  value, DWORD  channel, BOOL  simul )

BYTE DSCUDAPICALL dscWGCommand (  DSCB  board, DWORD  cmd )

BYTE DSCUDAPICALL dscWGConfigSet (  DSCB  board, DSCWGCONFIG *  config )

---

Variable Documentation

typedef DSCADCALPARAMS

---
