OrbitFrameRSW Class Reference
[Orbit Frames]

#include <OrbitFrameRSW.h>

Inheritance diagram for OrbitFrameRSW:

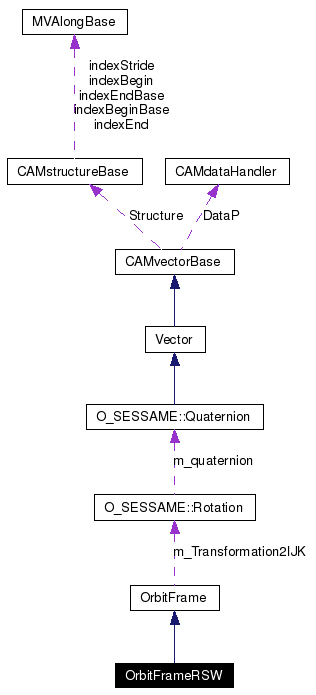

[legend]Collaboration diagram for OrbitFrameRSW:

[legend]List of all members.

---

Detailed Description

RSW Satellite Coordinate System.

Applies to studies of relative motion because the system moves with the satellite. The R axis is defined as pointing from the Earth's center along the radius vector toward the satellite, and the W axis is fixed along the direction normal to orbital plane. The S axis points in the direction of the velocity vector and is perpendicular to the radius vector. Radial: positions and displacements are parallel to the position vector (along R axis) Along-track: displacements are normal to the position vector and (for small e) are nearly parallel to the satellite's instantaneous velocity vector (along the S axis) Cross-track: positions are normal to the plane defined by thte current position and velocity vectors (along the W axis). Sometimes called the Gaussian coordinate system. (Vallado, pg. 42-43)

Definition at line 32 of file OrbitFrameRSW.h.

Public Member Functions
	OrbitFrameRSW ()
virtual	~OrbitFrameRSW ()
OrbitFramePQW *	NewPointer ()
OrbitFramePQW *	Clone ()
virtual Rotation	GetRotation2IJK () const =0
virtual Rotation	GetRotationFromIJK () const =0

---

Constructor & Destructor Documentation

OrbitFrameRSW::OrbitFrameRSW (   )  [inline]

Definition at line 46 of file OrbitFrameRSW.h. Referenced by Clone(), and NewPointer().

OrbitFrameRSW::~OrbitFrameRSW (   )  [inline, virtual]

Definition at line 47 of file OrbitFrameRSW.h.

---

Member Function Documentation

OrbitFrameRSW * OrbitFrameRSW::Clone (   )  [inline, virtual]

Implements OrbitFrame. Definition at line 49 of file OrbitFrameRSW.h. References OrbitFrameRSW().

virtual Rotation OrbitFrame::GetRotation2IJK (   )  const [pure virtual, inherited]

Implemented in OrbitFrameIJK, OrbitFrameNTW, OrbitFramePQW, and OrbitFrameSEZ. Referenced by O_SESSAME::Keplerian::SetPositionVelocity().

virtual Rotation OrbitFrame::GetRotationFromIJK (   )  const [pure virtual, inherited]

Implemented in OrbitFrameECEF, OrbitFrameIJK, OrbitFrameNTW, OrbitFramePQW, and OrbitFrameSEZ. Referenced by O_SESSAME::Keplerian::GetPositionVelocity().

OrbitFrameRSW * OrbitFrameRSW::NewPointer (   )  [inline, virtual]

Implements OrbitFrame. Definition at line 48 of file OrbitFrameRSW.h. References OrbitFrameRSW().

---

The documentation for this class was generated from the following file:

• OrbitFrameRSW.h

---
