common.h File Reference

---

Detailed Description

Communicate with serial device.

Author:

Author

jayhawk_hokie

Version:

Revision

1.4

Date:

Date

2007/08/02 23:18:28

Definition in file common.h.

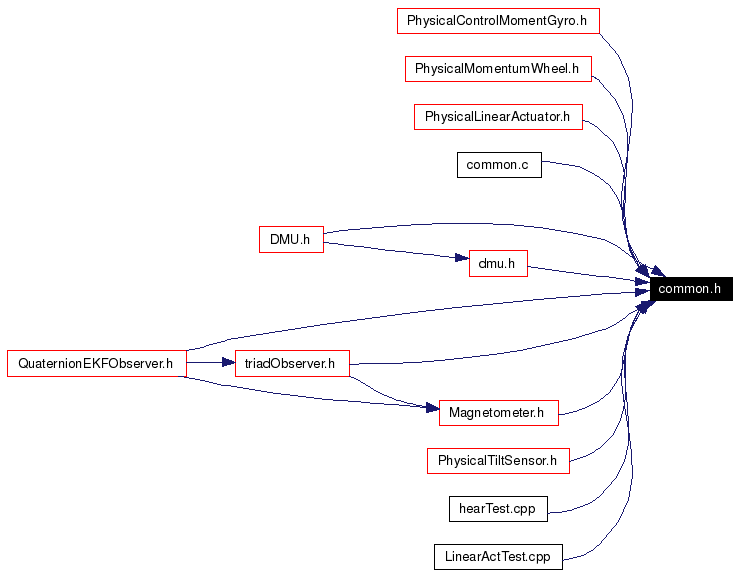

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	CRC_16   0xa001
#define	CRC_CCITT   0x8408
Typedefs
typedef __uint8_t	uint8
typedef __uint16_t	uint16
Functions
uint16	mbcrc_calc (uint8 *data, int len)
uint16	mbcwc_tlu (uint8 *data, int len)
int	init_serial (char *portfn, speed_t brate, int *portfd)
	Initialize serial port The presumption was that we'd always be talking exclusively to devices in 8N1. Now, to use 2 stop bits, we had to use a define to avoid rewriting all the code that uses init_serial as it is already written. Any major version change should incorporate an option for doing this properly in the code.
int	say (int fd, char *str)
	Send data string to serial port.
int	hear (int fd, char *str, int maxlen, int minlen, int maxbtime, char term)
	hear function reads data from serial port

---

Define Documentation

#define CRC_16   0xa001

Definition at line 14 of file common.h.

#define CRC_CCITT   0x8408

Definition at line 15 of file common.h.

---

Typedef Documentation

typedef __uint16_t uint16

Definition at line 17 of file common.h.

typedef __uint8_t uint8

Definition at line 16 of file common.h.

---

Function Documentation

int hear (  int  fd, char *  str, int  maxlen, int  minlen, int  maxbtime, char  term )

hear function reads data from serial port Parameters: fd  file descriptor for port *str  pointer to return string maxlen  maximum length of return string minlen  minimum length of return string ( 0 = end string at character return, !0 = minimum length) maxbtime  maximum blocking time for select function (select function looks for ports to read) term  termination character to search for if minlen = 0 Returns: int 0 if successful Definition at line 115 of file common.c. Referenced by Magnetometer::AsciiParser(), Magnetometer::BinaryParser(), PhysicalMomentumWheel::ChangeBaud(), Magnetometer::ContinuousDataConfiguration(), Magnetometer::DefaultConfiguration(), PhysicalControlMomentGyro::FindLimits(), PhysicalMomentumWheel::GetAmps(), PhysicalTiltSensor::GetAngles(), PhysicalMomentumWheel::GetVolts(), PhysicalTiltSensor::Initialize(), PhysicalLinearActuator::Initialize(), main(), Magnetometer::PolledDataConfiguration(), Magnetometer::QuerryConfiguration(), PhysicalControlMomentGyro::QueryAngle(), PhysicalLinearActuator::QueryCurrentPosition(), QueryWheelSpeed(), PhysicalControlMomentGyro::QueryWheelSpeed(), PhysicalMomentumWheel::QueryWheelTorque(), PhysicalControlMomentGyro::QueryWheelTorque(), Magnetometer::ReEnterOffConfiguration(), Magnetometer::ReEnterOnConfiguration(), Magnetometer::SetAsciiConfiguration(), Magnetometer::SetAveragingOffConfiguration(), Magnetometer::SetAveragingOnConfiguration(), Magnetometer::SetBaud19200Configuration(), Magnetometer::SetBinaryConfiguration(), Magnetometer::SetResetOffConfiguration(), Magnetometer::SetResetOnConfiguration(), Magnetometer::SetSampleRateConfiguration(), PhysicalLinearActuator::StartJog(), and Magnetometer::~Magnetometer().

int init_serial (  char *  portfn, speed_t  brate, int *  portfd )

Initialize serial port The presumption was that we'd always be talking exclusively to devices in 8N1. Now, to use 2 stop bits, we had to use a define to avoid rewriting all the code that uses init_serial as it is already written. Any major version change should incorporate an option for doing this properly in the code. Parameters: *portfn  pointer to port file name brate  *portfd  pointer to port file descripter Returns: int 0 if successful Definition at line 27 of file common.c. Referenced by _daq(), PhysicalTiltSensor::Initialize(), PhysicalMomentumWheel::Initialize(), PhysicalLinearActuator::Initialize(), PhysicalControlMomentGyro::Initialize(), Magnetometer::Initialize(), and main().

uint16 mbcrc_calc (  uint8 *  data, int  len )

uint16 mbcwc_tlu (  uint8 *  data, int  len )

int say (  int  fd, char *  str )

Send data string to serial port. Parameters: fd  file descriptor for port *str  pointer to return string Returns: int 0 if successful Definition at line 74 of file common.c. Referenced by Magnetometer::AsciiParser(), Magnetometer::BinaryParser(), PhysicalMomentumWheel::ChangeBaud(), PhysicalControlMomentGyro::CommandAngle(), PhysicalControlMomentGyro::CommandGimbalRate(), PhysicalMomentumWheel::CommandSystemTorque(), PhysicalControlMomentGyro::CommandWheelSpeed(), PhysicalControlMomentGyro::CommandWheelTorque(), Magnetometer::ContinuousDataConfiguration(), Magnetometer::DefaultConfiguration(), PhysicalMomentumWheel::EchoOff(), PhysicalMomentumWheel::EchoOn(), PhysicalMomentumWheel::EnableTorqueMode(), PhysicalControlMomentGyro::FindLimits(), PhysicalMomentumWheel::GetAmps(), PhysicalTiltSensor::GetAngles(), PhysicalMomentumWheel::GetVolts(), PhysicalControlMomentGyro::GoCommand(), PhysicalTiltSensor::Initialize(), PhysicalLinearActuator::Initialize(), PhysicalControlMomentGyro::Initialize(), main(), Magnetometer::PolledDataConfiguration(), Magnetometer::QuerryConfiguration(), PhysicalControlMomentGyro::QueryAngle(), PhysicalLinearActuator::QueryCurrentPosition(), QueryWheelSpeed(), PhysicalControlMomentGyro::QueryWheelSpeed(), PhysicalMomentumWheel::QueryWheelTorque(), PhysicalControlMomentGyro::QueryWheelTorque(), Magnetometer::ReEnterOffConfiguration(), Magnetometer::ReEnterOnConfiguration(), PhysicalMomentumWheel::Reset(), Magnetometer::SetAsciiConfiguration(), Magnetometer::SetAveragingOffConfiguration(), Magnetometer::SetAveragingOnConfiguration(), Magnetometer::SetBaud19200Configuration(), Magnetometer::SetBinaryConfiguration(), Magnetometer::SetResetOffConfiguration(), Magnetometer::SetResetOnConfiguration(), Magnetometer::SetSampleRateConfiguration(), PhysicalLinearActuator::SetVelocity(), PhysicalLinearActuator::StartJog(), PhysicalLinearActuator::Stop(), PhysicalMomentumWheel::TorqueCommand(), PhysicalLinearActuator::TravelDistance(), PhysicalLinearActuator::TravelPosition(), and Magnetometer::~Magnetometer().

---
