O_SESSAME::Orbit Class Reference
[Orbit Toolkit]

#include <Orbit.h>

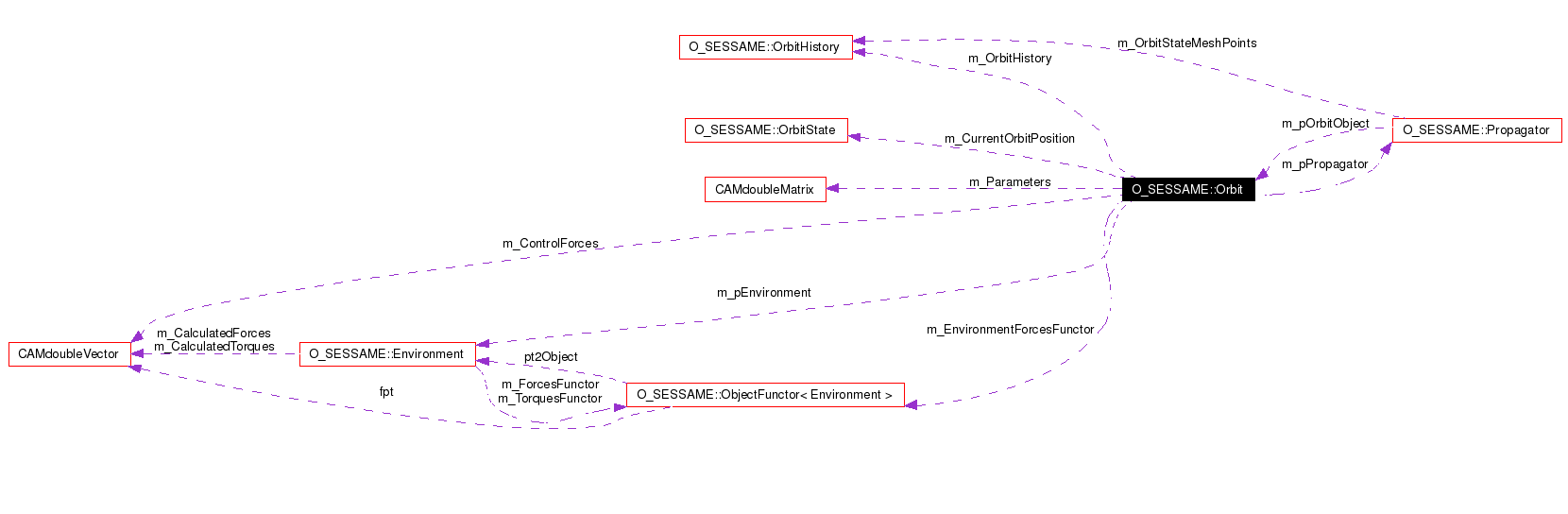

Collaboration diagram for O_SESSAME::Orbit:

[legend]List of all members.

Public Member Functions
	Orbit ()
virtual	~Orbit ()
void	SetStateObject (const OrbitState &_currentOrbitPosition)
	Set the current orbit state object that represents the spacecraft's position in space.
OrbitState	GetStateObject () const
	Return the current orbital state of the spacecraft.
void	SetDynamicsEq (odeFunctor _orbitDynamicsEq)
	Set the Dynamics Equation right-hand side file.
odeFunctor	GetDynamicsEq ()
	Return the pointer to the Dynamics Equation right-hand side.
void	SetStateConversion (IntegratedOrbitStateConversionFunction _ConversionFunction)
	Set the Orbit state conversion function.
IntegratedOrbitStateConversionFunction	GetStateConversion () const
	Get the Orbit state conversion function.
void	SetPropagator (Propagator *_pPropagator)
	Sets the propagator used for integrating the orbit.
Propagator *	GetPropagator ()
	Returns the pointer to the propagator being used.
void	Propagate (const Vector &_propTime)
	Propagate the orbit through the vector of times.
bool	IsIntegrateable ()
	Returns whether the orbit is integrateable or not. Determined if there is a dynamics equation present.
void	SetParameters (const Matrix &_Parameters)
	Set the physical parameters of the spacecraft orbit.
Matrix	GetParameters () const
	Return a matrix of the current stored spacecraft orbital parameters.
void	SetEnvironment (Environment *_pEnvironment)
	Sets the environment used for integrating the orbit.
Environment *	GetEnvironment ()
	Returns the environment used for integrating the orbit.
void	SetControlForces (const Vector &_controlForces)
Vector	GetControlForces ()
ObjectFunctor< Environment >	GetEnvironmentForcesFunctor ()
	Return a reference to the environmental forces function.
OrbitHistory &	GetHistoryObject ()
	Return a reference to the spacecraft's orbit history.
Protected Attributes
OrbitState	m_CurrentOrbitPosition
	Current stored orbital state of the spacecraft.
Private Attributes
Propagator *	m_pPropagator
	Internal pointer to the current orbit propagator algorithm.
IntegratedOrbitStateConversionFunction	m_OrbitStateConversionFunction
odeFunctor	m_OrbitDynamicsEq
	Right-hand side of the orbit dynamics equation: .
bool	m_Integrateable
	Is the orbit integrateable? (true if it is, false if is not).
Matrix	m_Parameters
Environment *	m_pEnvironment
	Internal pointer to the orbit's environment object.
Vector	m_ControlForces
	Internal Vector of the current control forces being applied to the spacecraft.
ObjectFunctor< Environment >	m_EnvironmentForcesFunctor
OrbitHistory	m_OrbitHistory

---

Constructor & Destructor Documentation

O_SESSAME::Orbit::Orbit (   )

Default Constructor Definition at line 17 of file Orbit.cpp.

O_SESSAME::Orbit::~Orbit (   )  [virtual]

Default Deconstructor Definition at line 21 of file Orbit.cpp.

---

Member Function Documentation

Vector O_SESSAME::Orbit::GetControlForces (   )

Definition at line 101 of file Orbit.cpp. References O_SESSAME::Vector.

odeFunctor O_SESSAME::Orbit::GetDynamicsEq (   )

Return the pointer to the Dynamics Equation right-hand side. Returns: pointer to the right-hand side dynamics equation Definition at line 56 of file Orbit.cpp. References O_SESSAME::odeFunctor. Referenced by O_SESSAME::CombinedNumericPropagator::PropagateOrbit().

Environment * O_SESSAME::Orbit::GetEnvironment (   )

Returns the environment used for integrating the orbit. Returns: pointer to the instance of the environment being used. Definition at line 92 of file Orbit.cpp.

ObjectFunctor< Environment > O_SESSAME::Orbit::GetEnvironmentForcesFunctor (   )

Return a reference to the environmental forces function. Returns: the Functor that references the Environment force function of the orbit. Used as a callback function for evaluating the forces on the spacecraft orbit due to specified environmental disturbances. Definition at line 106 of file Orbit.cpp.

OrbitHistory & O_SESSAME::Orbit::GetHistoryObject (   )

Return a reference to the spacecraft's orbit history. This function is used to make evaluations on the spacecraft's orbit history. // Get the orbit state at t=30 seconds. OrbitState OrbState30 = myOrbit.GetHistoryObject().GetState(ssfTime(30)); Returns: reference (acts as a normal object, but actually "points" to the private data member) to the spacecraft's orbit history object. Definition at line 111 of file Orbit.cpp. Referenced by main(), and Plot().

Matrix O_SESSAME::Orbit::GetParameters (   )  const

Return a matrix of the current stored spacecraft orbital parameters. Definition at line 82 of file Orbit.cpp. References O_SESSAME::Matrix.

Propagator * O_SESSAME::Orbit::GetPropagator (   )

Returns the pointer to the propagator being used. Returns: pointer to the orbit's propagator. Definition at line 46 of file Orbit.cpp.

IntegratedOrbitStateConversionFunction O_SESSAME::Orbit::GetStateConversion (   )  const

Get the Orbit state conversion function. Returns: pointer to the conversion function (takes a meshpoint and returns an object of OrbitState). Definition at line 66 of file Orbit.cpp. References O_SESSAME::IntegratedOrbitStateConversionFunction.

OrbitState O_SESSAME::Orbit::GetStateObject (   )  const

Return the current orbital state of the spacecraft. Returns: Current stored orbital state of the spacecraft. Definition at line 35 of file Orbit.cpp. Referenced by AttituteDynamics(), DisplayOrbit(), main(), Propagate(), O_SESSAME::CombinedNumericPropagator::PropagateAttitude(), and O_SESSAME::CombinedNumericPropagator::PropagateOrbit().

bool O_SESSAME::Orbit::IsIntegrateable (   )

Returns whether the orbit is integrateable or not. Determined if there is a dynamics equation present. Returns: true if the orbit can be integrated, false if it can't. Definition at line 72 of file Orbit.cpp. Referenced by DisplayOrbit(), main(), Plot(), Propagate(), and O_SESSAME::CombinedNumericPropagator::Propagate().

void O_SESSAME::Orbit::Propagate (  const Vector &  _propTime  )

Propagate the orbit through the vector of times.

void O_SESSAME::Orbit::SetControlForces (  const Vector &  _controlForces  )

Definition at line 96 of file Orbit.cpp. References CAMdoubleVector::initialize(), m_ControlForces, and O_SESSAME::Vector.

void O_SESSAME::Orbit::SetDynamicsEq (  odeFunctor  _orbitDynamicsEq  )

Set the Dynamics Equation right-hand side file. Parameters: _orbitDynamicsEq  pointer to the right-hand side dynamics equation Definition at line 51 of file Orbit.cpp. References m_Integrateable, and m_OrbitDynamicsEq. Referenced by ChangeOrbit(), and SetupOrbit().

void O_SESSAME::Orbit::SetEnvironment (  Environment *  _pEnvironment  )

Sets the environment used for integrating the orbit. Parameters: _pEnvironment  Instance of the environment to be used. Definition at line 86 of file Orbit.cpp. References m_EnvironmentForcesFunctor, m_pEnvironment, and O_SESSAME::ObjectFunctor< TClass >::Set(). Referenced by main().

void O_SESSAME::Orbit::SetParameters (  const Matrix &  _Parameters  )

Set the physical parameters of the spacecraft orbit. Todo: determine what physical parameters are pertinent. Definition at line 77 of file Orbit.cpp. References CAMdoubleMatrix::initialize(), m_Parameters, and O_SESSAME::Matrix.

void O_SESSAME::Orbit::SetPropagator (  Propagator *  _pPropagator  )

Sets the propagator used for integrating the orbit. Parameters: _pPropagator  Pointer to the propagator to be used. Definition at line 40 of file Orbit.cpp. References m_pPropagator, and O_SESSAME::Propagator::SetOrbitObject(). Referenced by main().

void O_SESSAME::Orbit::SetStateConversion (  IntegratedOrbitStateConversionFunction  _ConversionFunction  )

Set the Orbit state conversion function. Parameters: _ConversionFunction  pointer to the conversion function (takes a meshpoint and returns an object of OrbitState). Definition at line 61 of file Orbit.cpp. References m_OrbitStateConversionFunction. Referenced by ChangeOrbit(), and SetupOrbit().

void O_SESSAME::Orbit::SetStateObject (  const OrbitState &  _currentOrbitPosition  )

Set the current orbit state object that represents the spacecraft's position in space. Parameters: _currentOrbitPosition  Current orbital state of the spacecraft. Definition at line 30 of file Orbit.cpp. References m_CurrentOrbitPosition. Referenced by ChangeOrbit(), and SetupOrbit().

---

Member Data Documentation

Vector O_SESSAME::Orbit::m_ControlForces [private]

Internal Vector of the current control forces being applied to the spacecraft. Definition at line 184 of file Orbit.h. Referenced by SetControlForces().

OrbitState O_SESSAME::Orbit::m_CurrentOrbitPosition [protected]

Current stored orbital state of the spacecraft. Definition at line 78 of file Orbit.h. Referenced by SetStateObject().

ObjectFunctor<Environment> O_SESSAME::Orbit::m_EnvironmentForcesFunctor [private]

Pointer to the Environment forces function Definition at line 187 of file Orbit.h. Referenced by SetEnvironment().

bool O_SESSAME::Orbit::m_Integrateable [private]

Is the orbit integrateable? (true if it is, false if is not). Definition at line 136 of file Orbit.h. Referenced by SetDynamicsEq().

odeFunctor O_SESSAME::Orbit::m_OrbitDynamicsEq [private]

Right-hand side of the orbit dynamics equation: . Definition at line 133 of file Orbit.h. Referenced by SetDynamicsEq().

OrbitHistory O_SESSAME::Orbit::m_OrbitHistory [private]

Definition at line 206 of file Orbit.h.

IntegratedOrbitStateConversionFunction O_SESSAME::Orbit::m_OrbitStateConversionFunction [private]

Conversion function for converting from the integrated states to an Orbit State. Definition at line 130 of file Orbit.h. Referenced by SetStateConversion().

Matrix O_SESSAME::Orbit::m_Parameters [private]

Definition at line 154 of file Orbit.h. Referenced by SetParameters().

Environment* O_SESSAME::Orbit::m_pEnvironment [private]

Internal pointer to the orbit's environment object. Definition at line 182 of file Orbit.h. Referenced by SetEnvironment().

Propagator* O_SESSAME::Orbit::m_pPropagator [private]

Internal pointer to the current orbit propagator algorithm. Definition at line 127 of file Orbit.h. Referenced by SetPropagator().

---

The documentation for this class was generated from the following files:

• Orbit.h
• Orbit.cpp

---
